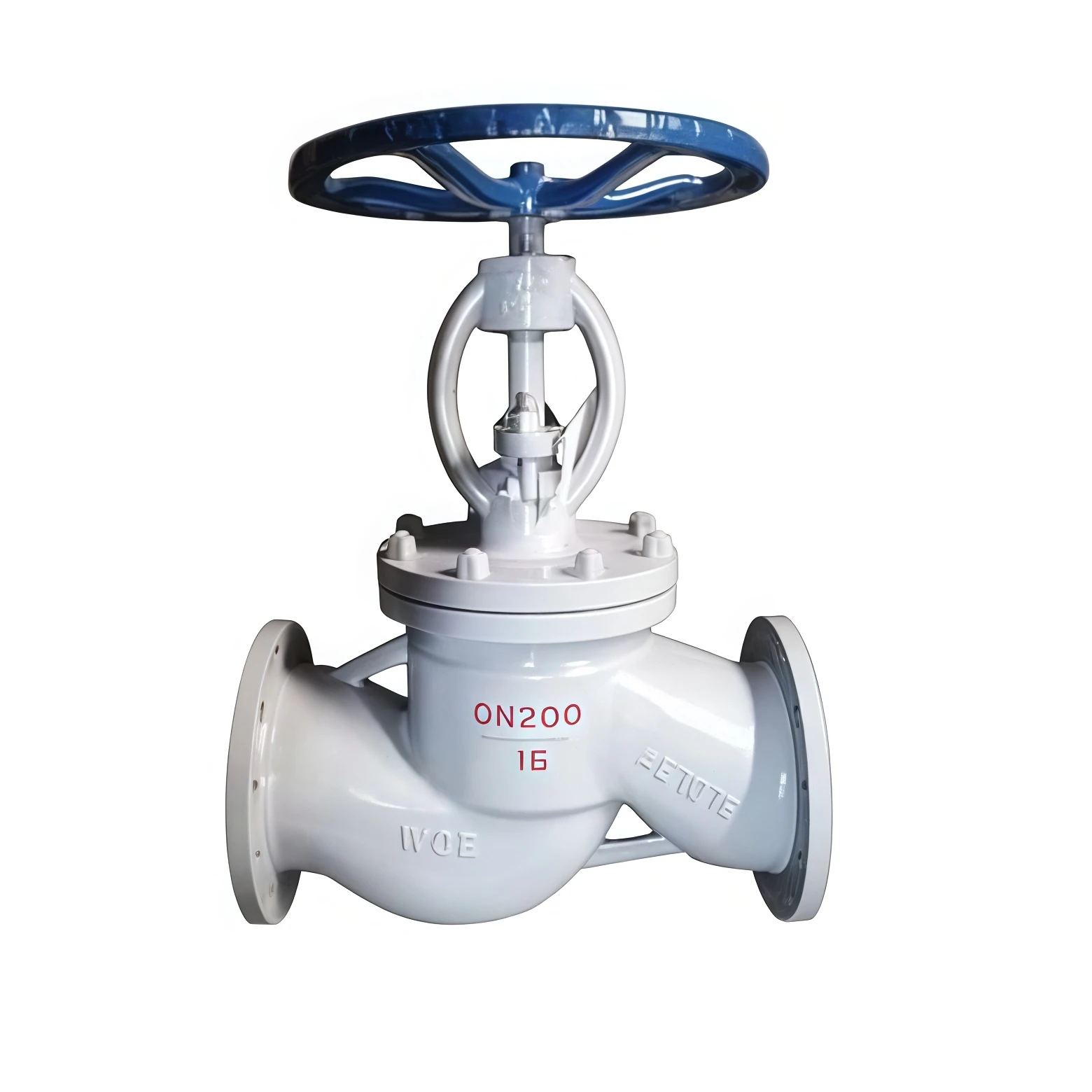

Cut-off valve special for chlorine
The Chlorine Cut-Off Valve is engineered for chlorine service in industrial and water treatment applications. Constructed with corrosion-resistant alloys and specialized sealing materials, it provides reliable shut-off, minimal leakage, and safe operation under high pressure and aggressive chemical conditions. OEM customization supports various sizes, pressure ratings, and connection types.
Cut-off valve special for chlorine
The Chlorine Cut-Off Valve is designed for secure handling and precise isolation of chlorine gas in chemical, water treatment, and industrial gas systems. Utilizing corrosion-resistant body materials and chemically compatible seat and packing materials, the valve maintains long-term integrity and prevents leakage, ensuring safety in hazardous service conditions.
Available in manual, pneumatic, or electric operation modes, it supports remote automation integration. The valve meets international chemical safety standards, offering exceptional durability and operational reliability in aggressive media.
Chlorine Cut-Off Valves are manufactured and tested according to chemical and industrial safety standards:
Cut-off valve special for chlorine
| Parameter | Specification |
|---|---|
| Product Name | Chlorine Cut-Off Valve |
| Valve Type | Chlorine Service Shut-Off Valve |
| Nominal Size | DN15 – DN600 |
| Pressure Rating | PN10 – PN160 |
| ANSI Class | Class 150 – Class 900 |
| Body Material | Hastelloy, Stainless Steel 316/316L, Titanium, Alloy Steel |
| Disc / Trim Material | Stainless Steel, Hastelloy, Titanium |
| Seat & Seal Material | PTFE, PCTFE, FEP, Compatible Elastomers |
| Connection Type | Flanged, Threaded, Butt Weld, Socket Weld |
| Operation | Manual, Gear, Pneumatic, Electric |
| Temperature Range | -20°C to +150°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 623, ASME B16.34, DIN, GB |
| Applicable Media | Chlorine Gas, Chlorine Solution, Aggressive Chemicals |
Cut-off valve special for chlorine
Control and isolation of chlorine pipelines and chemical storage systems.
Chlorine dosing, disinfection systems, and gas feed pipelines.
Handling chlorine in chemical reactors, bleaching, and synthesis processes.
Chlorine-based sterilization and production process control.
High-purity chlorine gas distribution and storage systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
