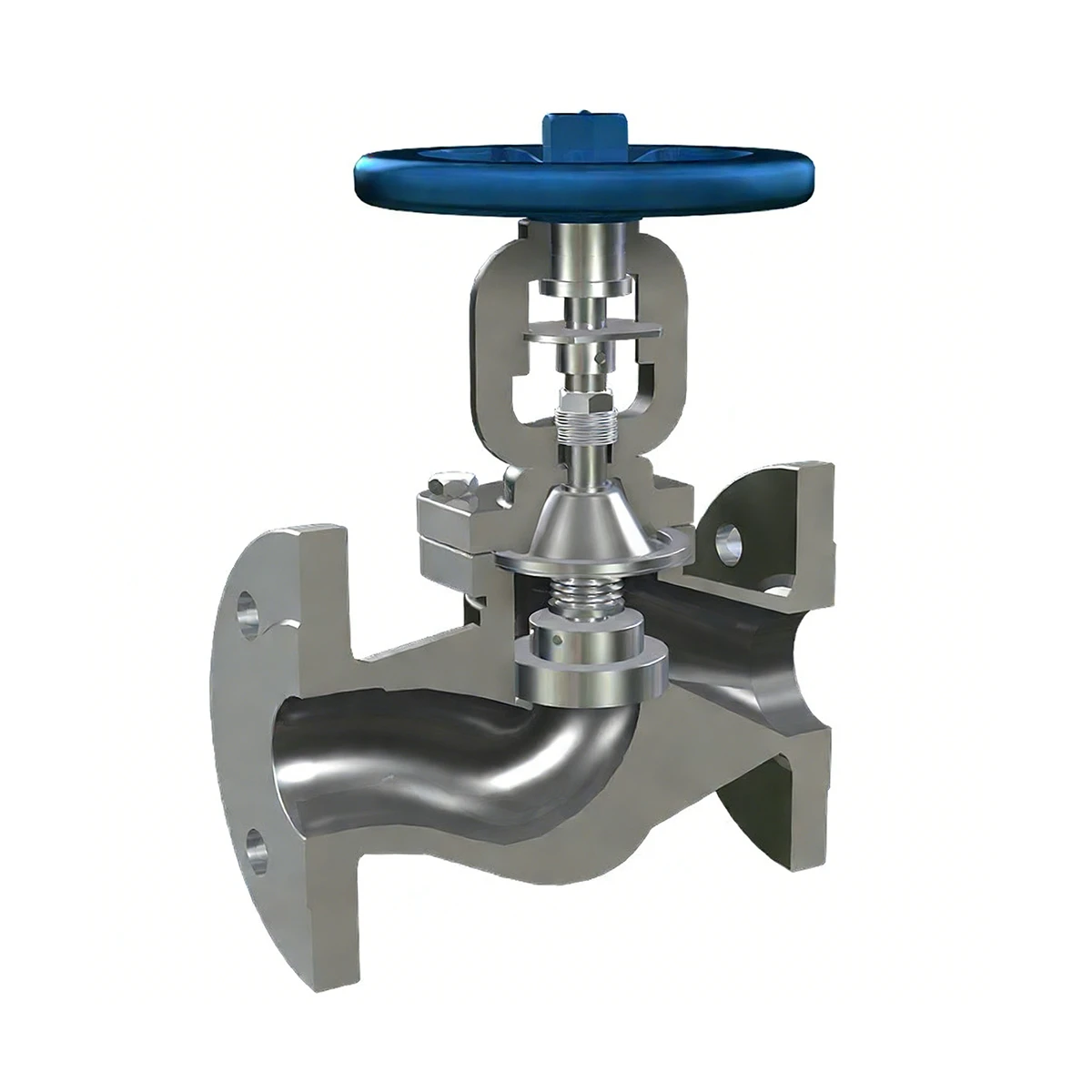

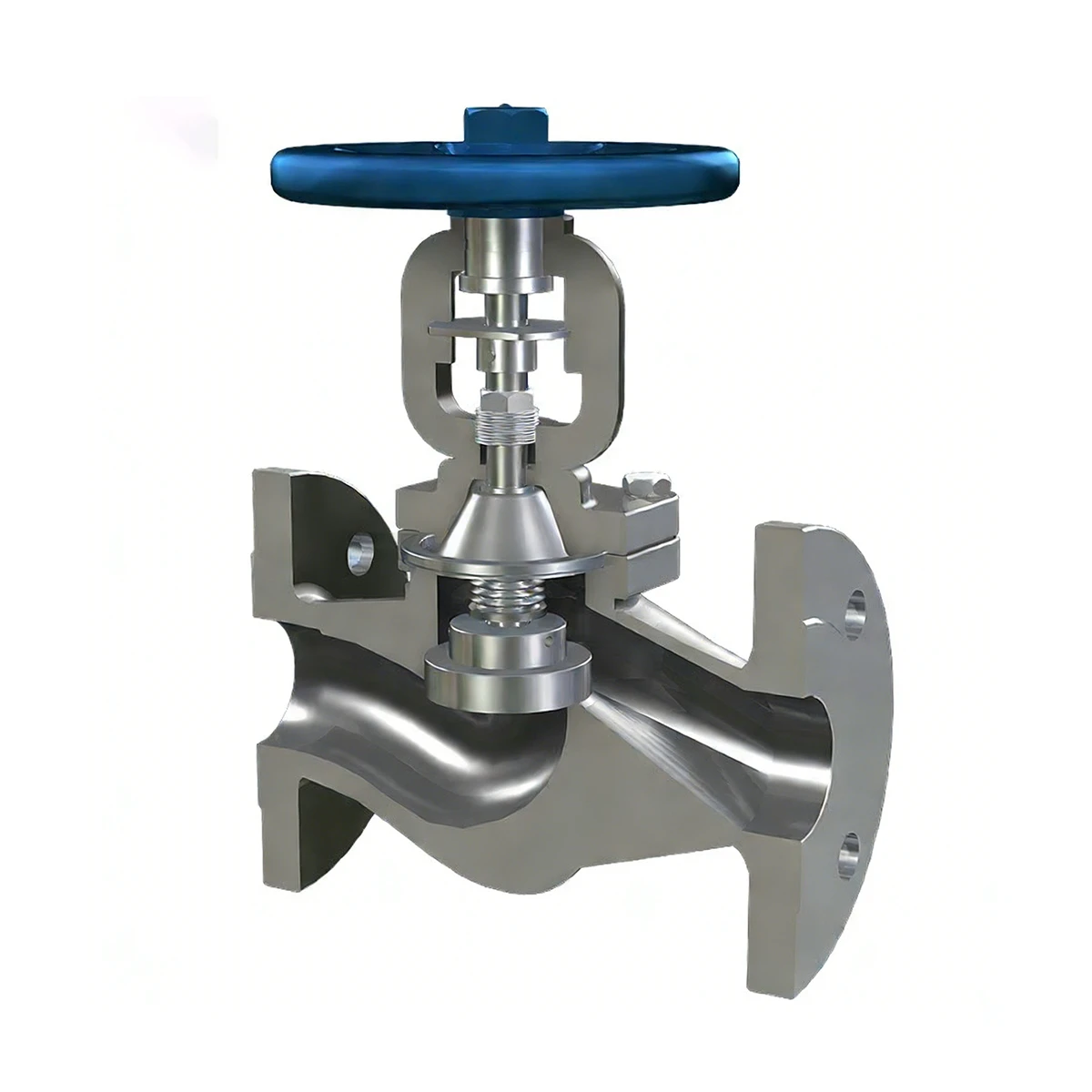

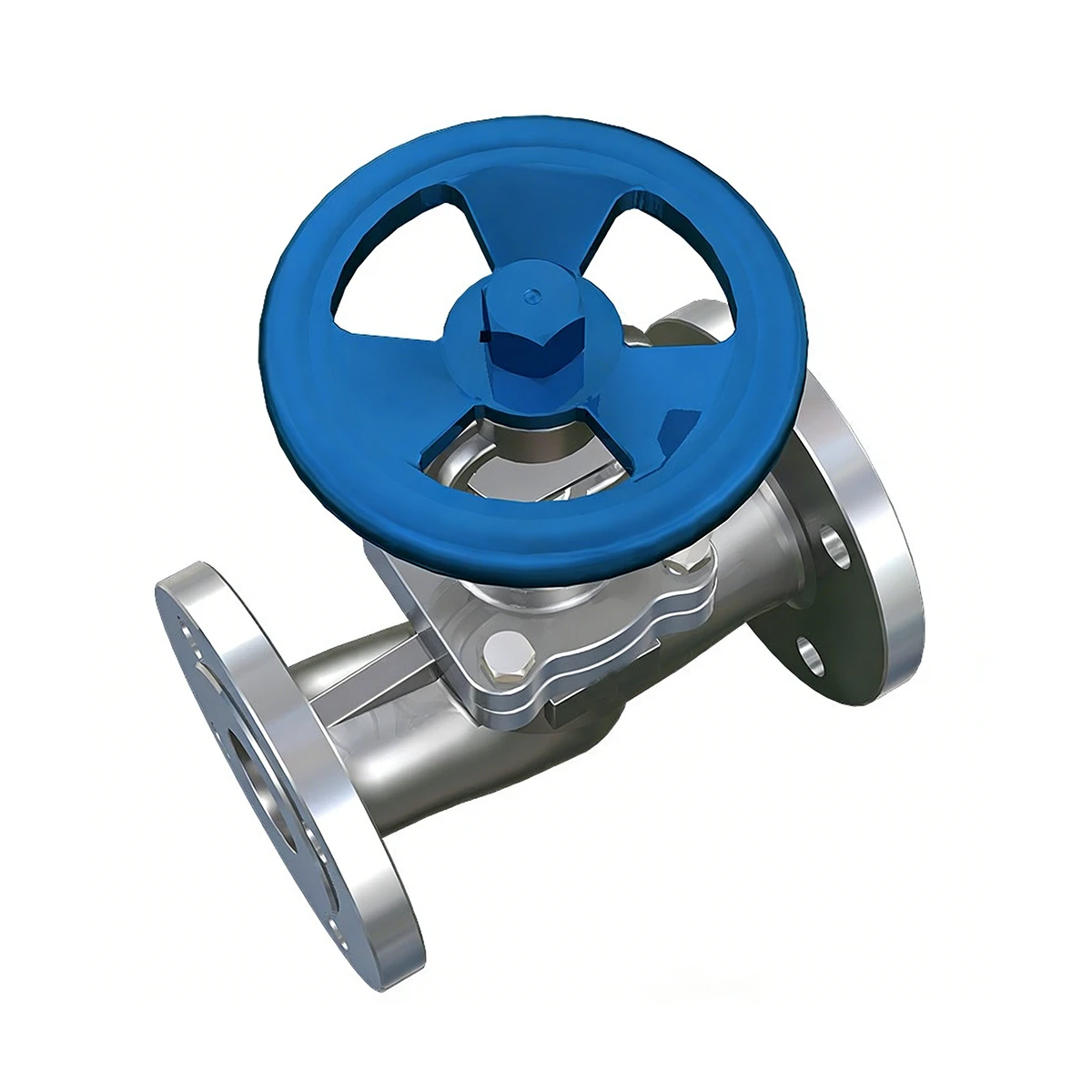

DIN Bellows Globe Valve
Nominal Diameter: 1" ~ 12"
Nominal Pressure: PN 10 ~ PN 160
Mediums: Water, steam, oil, gas, chemicals
Temperature Range: ≤ 650°C
DIN Bellows Globe Valve
DIN Bellows Globe Valve is designed according to DIN standards and is widely used in industrial pipelines requiring zero external leakage and reliable sealing performance. The bellows seal structure effectively isolates the stem from the external environment, preventing medium leakage and ensuring operational safety. Compared with conventional gland-packed globe valves, bellows sealed valves offer longer service life, reduced maintenance requirements, and enhanced environmental protection.
The valve is suitable for controlling or shutting off various media, including steam, thermal oil, hot water, ammonia, toxic fluids, flammable fluids, and other hazardous process media. It is extensively applied in power plants, chemical processing, petrochemical industries, oil & gas facilities, district heating systems, and industrial utility services.
As an experienced valve manufacturer, we provide comprehensive OEM and ODM services to meet diverse project requirements.
Customization Options:
Our manufacturing and quality management systems comply with international standards and industry requirements:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | DIN Bellows Globe Valve |
| Design Standard | DIN 3356 / EN 13709 |
| Face-to-Face Standard | DIN EN 558 |
| Flange Standard | DIN EN 1092-1 |
| Pressure Rating | PN16, PN25, PN40, PN63, PN100 |
| Nominal Size | DN15 – DN400 |
| Body Material | GS-C25, WCB, CF8, CF8M, CF3M, Alloy Steel |
| Bonnet Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Bellows Material | SS304, SS316L, Inconel |
| Disc Material | Stainless Steel, Alloy Steel |
| Stem Material | SS304, SS316, SS410 |
| Seat Material | Integral Seat, Stellite Overlay |
| Temperature Range | -196°C to +550°C |
| End Connection | Flanged, Butt Welded, Socket Welded |
| Operation | Handwheel, Pneumatic, Electric, Gear Operated |
| Leakage Class | EN 12266 Rate A |
| Packing Material | Graphite Packing |
| Testing Standard | EN 12266, API 598 |
| Suitable Media | Steam, Thermal Oil, Hot Water, Gas, Chemical Fluids |
| Surface Coating | Epoxy Coating / Customized |
| Available Certifications | ISO, CE, PED, TA-Luft, ISO 15848 |
Industry Applications
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
