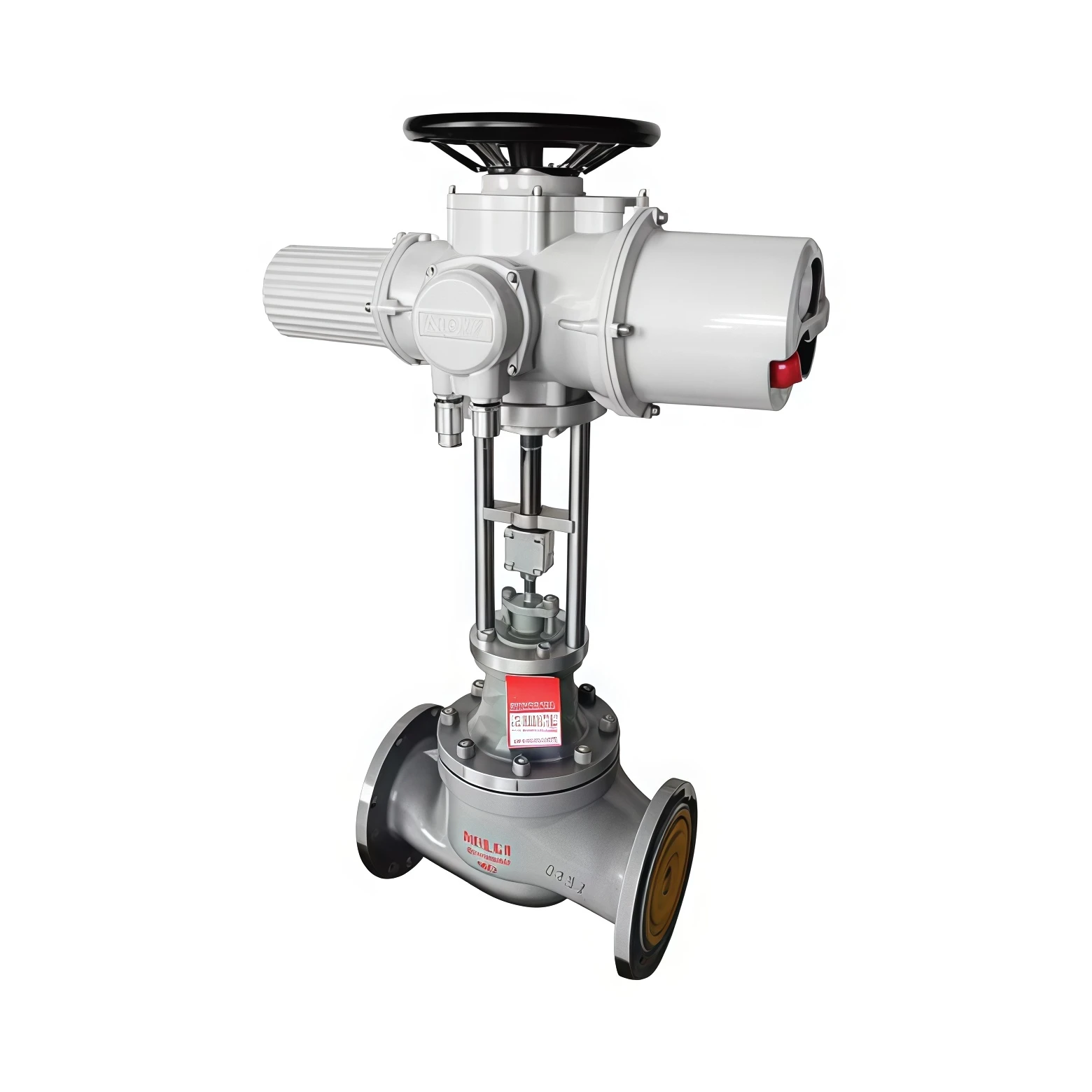

Electric globe valve
The Electric Globe Valve is engineered for reliable automated regulation of liquids, gases, and steam in industrial pipelines. Its linear motion disc ensures accurate throttling and tight sealing. Electric actuation provides precise control, reduces manual intervention, integrates with PLC/DCS systems, and enhances safety, efficiency, and process reliability.
Electric globe valve
The Electric Globe Valve combines a high-performance globe valve design with electric actuation for fully automated process control. The linear motion disc ensures accurate flow regulation and reliable shut-off. Constructed from carbon steel, stainless steel, or alloy steel, the valve resists corrosion, high pressure, and high temperatures.
Electric actuators enable remote operation, precise control, and seamless integration into industrial automation systems. The valve supports OEM customization, including size, materials, pressure ratings, connection types, and actuator configurations to meet diverse industrial requirements.
Electric Globe Valves are manufactured and tested according to international standards:
Electric globe valve
| Parameter | Specification |
|---|---|
| Product Name | Electric Globe Valve |
| Nominal Size | DN15 – DN1200 (½" – 48") |
| Pressure Rating | PN10 – PN420 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel |
| Disc Material | Stainless Steel, Alloy Steel, Stellite Overlay |
| Seat Material | Metal Seat / Soft Seat (PTFE, NBR, EPDM) |
| Connection Type | Flanged, Threaded, Butt Weld |
| Operation | Electric Actuated, Manual Override |
| Power Supply | 24V / 110V / 220V / 380V AC/DC |
| Temperature Range | -29°C to +550°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | ASME B16.34, DIN, GB Standards |
| Applicable Media | Water, Steam, Oil, Gas, Chemicals |
Electric globe valve
Steam, condensate, and feedwater control in boilers and turbines.
Automated flow control in pipelines, refining, and distribution systems.
Precise regulation of process fluids, acids, and industrial chemicals.
Automated control of potable and industrial water pipelines.
Flow regulation and shut-off in manufacturing, energy, and process automation systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
