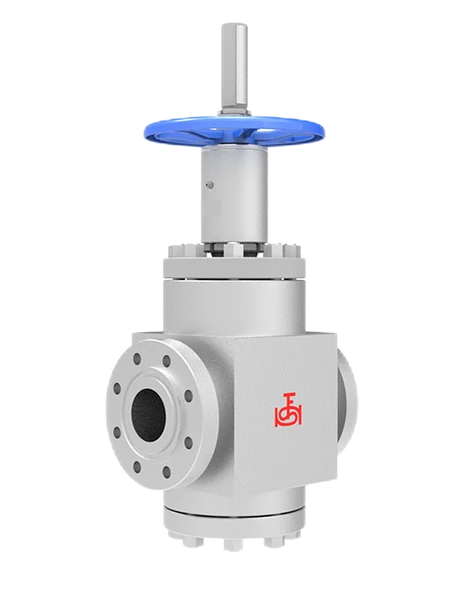

F60 material throttle stop vent valve
The F60 Material Throttle Stop Vent Valve is designed for high-pressure pipelines, boilers, and pressure vessels handling steam, gas, and liquids. Its F60 alloy construction ensures excellent corrosion and wear resistance. Precision throttling and sealing mechanisms provide smooth depressurization, minimal leakage, and enhanced safety. Suitable for industrial automation integration.
F60 material throttle stop vent valve
The F60 Material Throttle Stop Vent Valve is engineered for controlled venting, pressure relief, and throttling in industrial pipelines and vessels. The F60 alloy body ensures superior resistance to corrosion, erosion, and high-temperature operation. The valve features precision throttling and tight sealing to prevent leakage and maintain safe system pressure.
Available in manual, pneumatic, or electric actuation, it can integrate with PLC/DCS automation systems for precise industrial process control. OEM customization supports tailored sizes, pressure ratings, material selection, and connection types to meet diverse industrial requirements.
F60 Material Throttle Stop Vent Valves comply with international industrial standards:
F60 material throttle stop vent valve
| Parameter | Specification |
|---|---|
| Product Name | F60 Material Throttle Stop Vent Valve |
| Nominal Size | DN15 – DN400 (½" – 16") |
| Pressure Rating | PN16 – PN420 |
| Body Material | F60 Alloy (Standard), Stainless Steel, Carbon Steel, Duplex Stainless Steel |
| Trim Material | F60 Alloy, Stainless Steel, Hardfaced Steel |
| Seat Material | Metal Seat / Soft Seat (PTFE, NBR, EPDM) |
| Connection Type | Flanged, Threaded, Butt Weld |
| Operation | Manual, Pneumatic, Electric |
| Temperature Range | -29°C to +450°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 602 / API 623 / ASME B16.34 |
| Applicable Media | Steam, Gas, Water, Industrial Fluids |
F60 material throttle stop vent valve
Boiler venting, steam system depressurization, turbine vent control.
Pipeline venting, gas release, and safety pressure management.
Venting of corrosive fluids, reactors, and process pipelines.
Safe blowdown, venting, and controlled depressurization.
Pressure relief and controlled venting for steam, gas, and liquid pipelines.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
