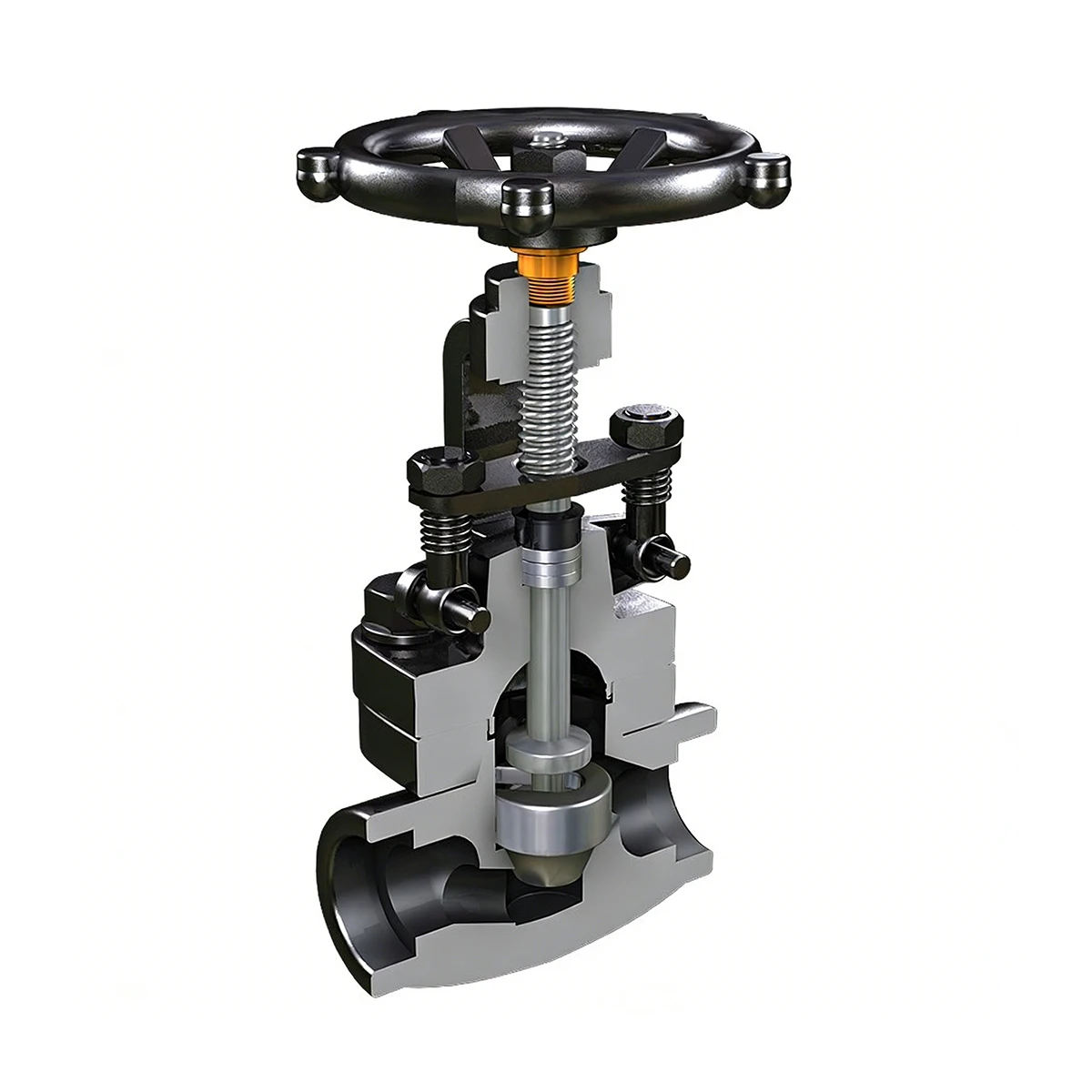

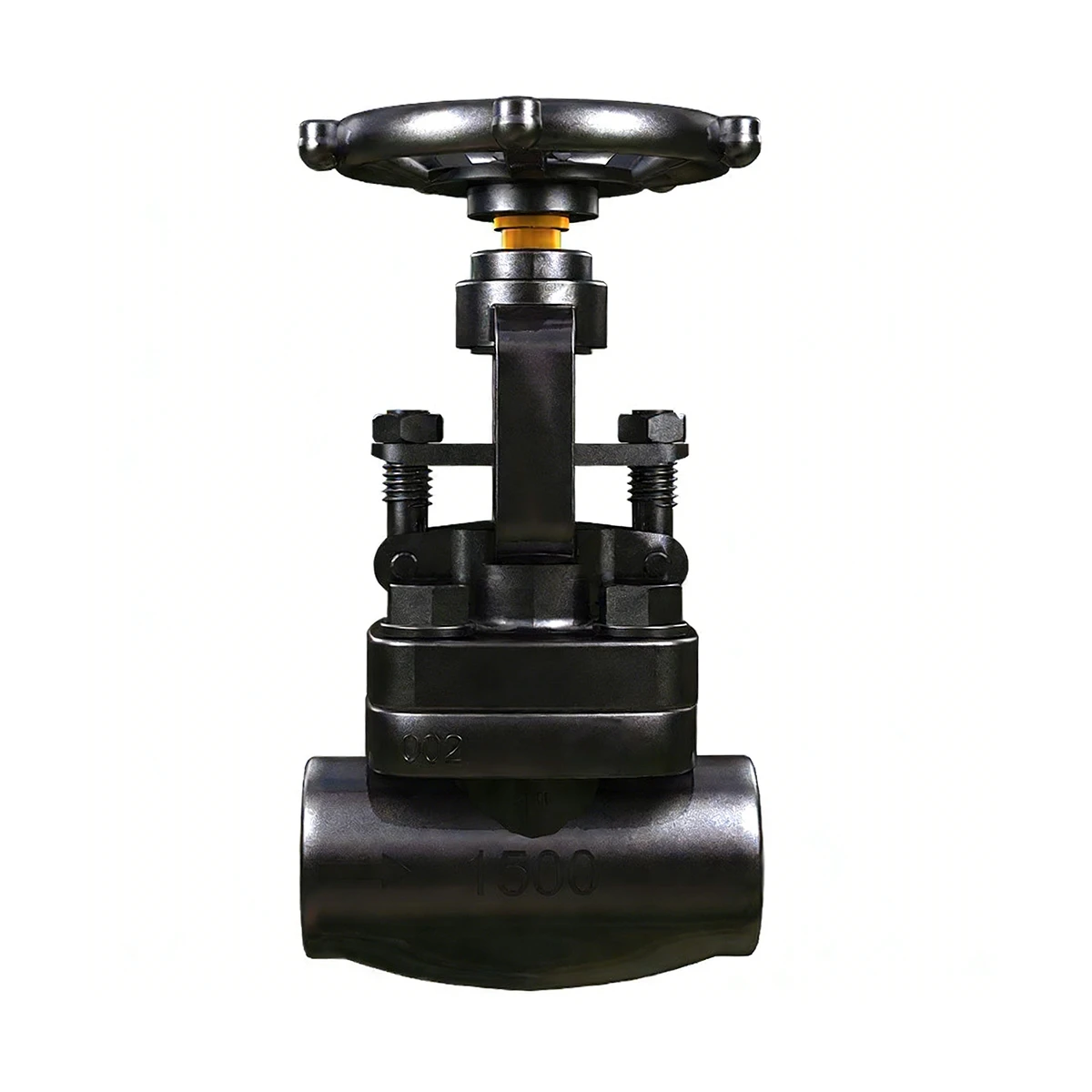

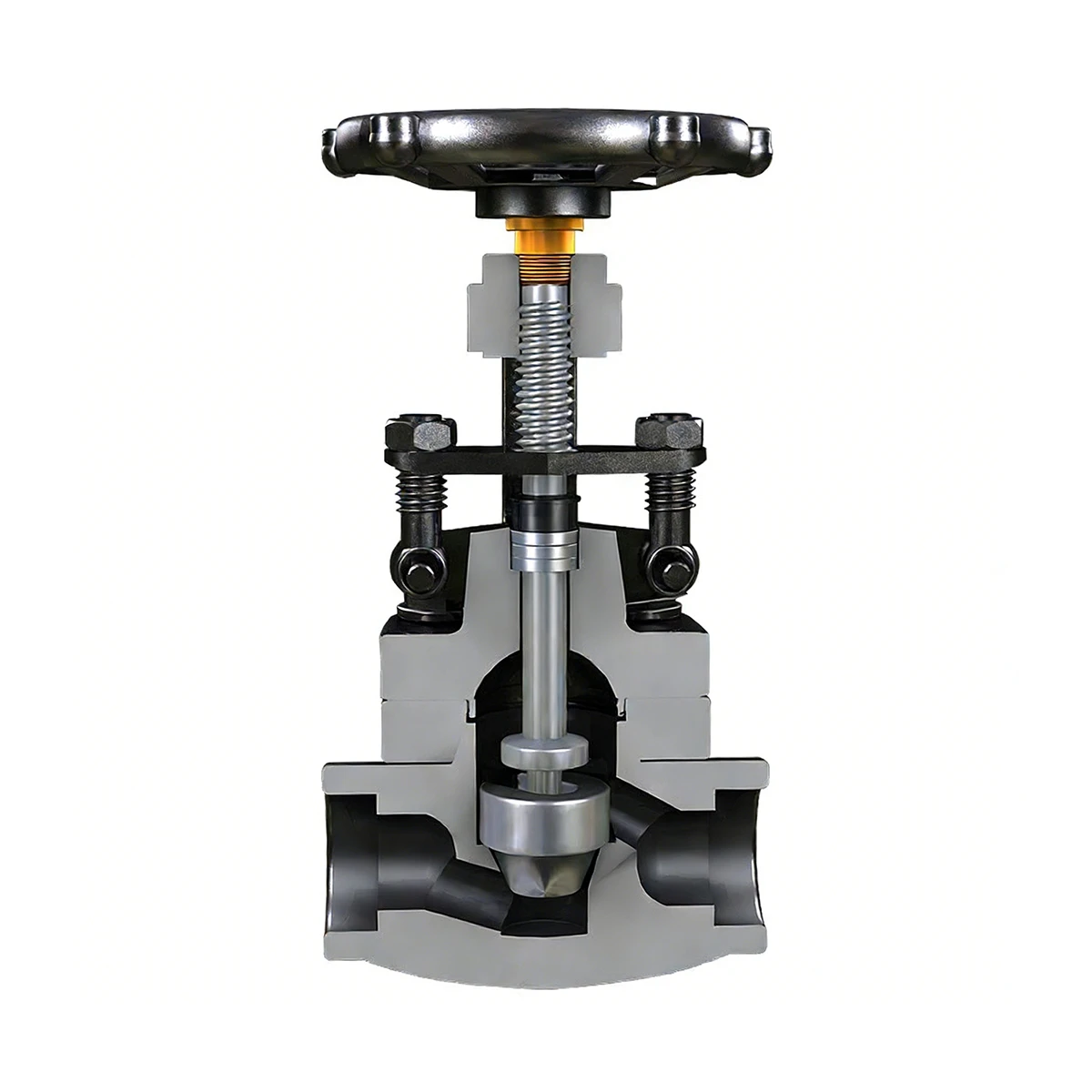

Forged Steelglobe Valve
Nominal Diameter: 1" ~ 24"
Nominal Pressure: 150 ~ 2500 lb
Mediums: Water, steam, oil, gas, chemicals, petroleum products
Temperature Range: ≤ 650°C
Forged Steel Globe Valve
The Forged Steel Globe Valve is designed for high-pressure and high-temperature applications, providing reliable flow control in pipelines. It features robust construction, precise sealing, and excellent durability. Our valves are suitable for industries requiring stringent safety and performance standards.
OEM & Customization Capabilities:
Certifications:
Parameter Specifications
| Parameter | Specification / Range |
|---|---|
| Valve Type | Globe Valve |
| Material (Body/Bonnet) | Forged Steel (A105, F22, CF8, CF8M, etc.) |
| Size Range | 1/2" – 24" (DN15 – DN600) |
| Pressure Rating | Class 150 – Class 2500 (PN16 – PN420) |
| End Connection | Flanged, Butt Welded, Socket Welded |
| Body Rating | ASME B16.34 / API 600 |
| Working Temperature | -29°C to 550°C (dependent on material) |
| Sealing Material | Metal-to-Metal / PTFE / Graphite |
| Operation Type | Manual (Handwheel), Gear, Electric, Pneumatic |
| Testing | API 598 / ISO 5208 |
Industry Applications
Forged steel globe valves are widely used across industries where precision flow control and high durability are required:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
