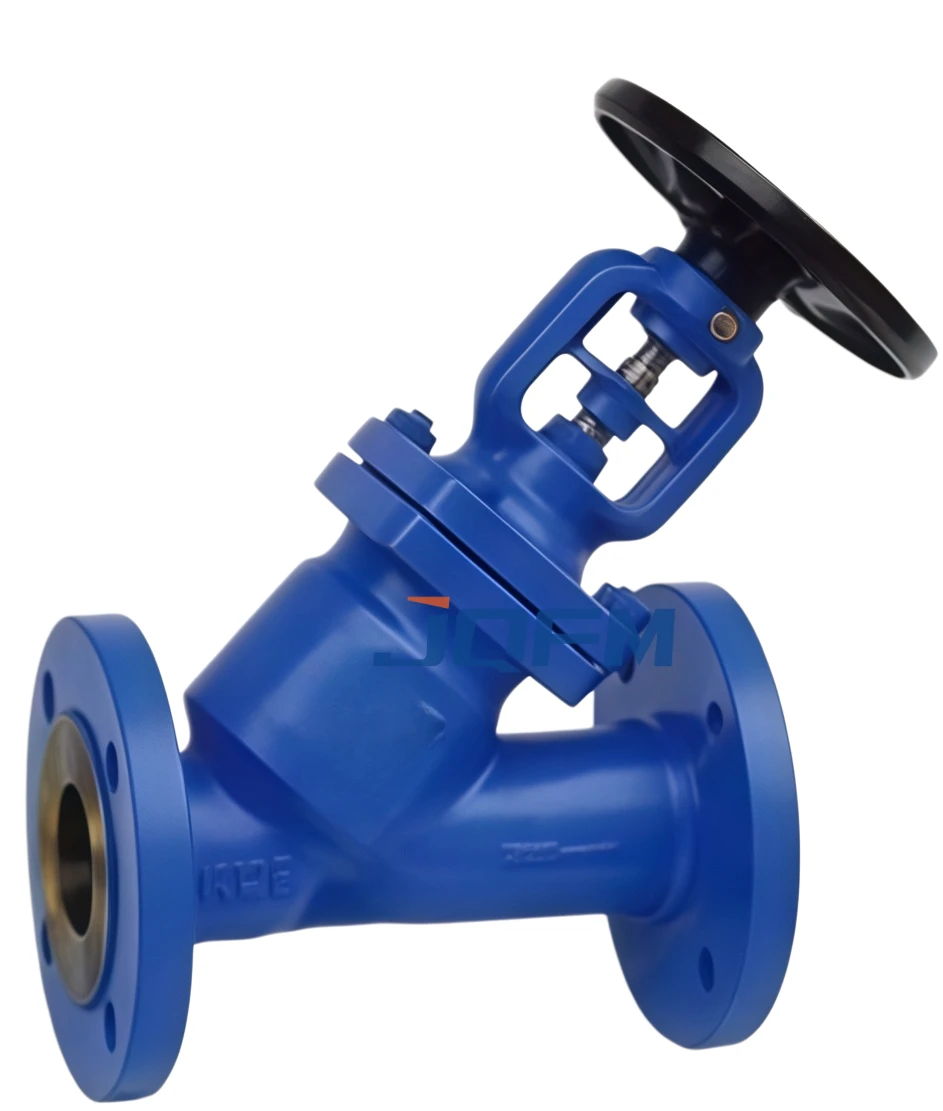

German standard Y-type straight through bellows globe valve
The German Standard Y-Type Straight Through Bellows Globe Valve combines a streamlined Y-pattern body with a welded bellows sealing system. This design minimizes pressure loss while eliminating stem leakage. Ideal for steam, thermal oil, gas, and chemical media, it delivers reliable shut-off, environmental safety, and long service life.
German standard Y-type straight through bellows globe valve
The German Standard Y-Type Straight Through Bellows Globe Valve is designed according to DIN standards and features a Y-pattern flow path that significantly reduces flow resistance compared to conventional globe valves. The stainless steel bellows assembly provides hermetic stem sealing, preventing external leakage and ensuring safe operation.
Its straight-through design enhances flow efficiency, reduces turbulence, and lowers energy consumption. The valve is widely used in power plants, petrochemical facilities, thermal oil systems, pharmaceutical plants, and industrial gas pipelines where leak-free operation is essential.
German Standard Y-Type Straight Through Bellows Globe Valves are manufactured and tested according to international standards:
German standard Y-type straight through bellows globe valve
| Parameter | Specification |
|---|---|
| Product Name | German Standard Y-Type Straight Through Bellows Globe Valve |
| Valve Type | Y-Pattern Bellows Sealed Globe Valve |
| Nominal Size | DN15 – DN800 |
| Pressure Rating | PN16 – PN160 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel |
| Bellows Material | SS304, SS316L, Inconel, Hastelloy |
| Disc Material | Stainless Steel, Stellite Overlay |
| Seat Material | Hard-Faced Alloy, Stainless Steel |
| Connection Type | DIN Flanged, Butt Weld, Socket Weld |
| Operation | Manual, Gear, Pneumatic, Electric |
| Temperature Range | -196°C to +550°C |
| Leakage Class | ISO 5208 Class A |
| Design Standard | DIN EN 13709 |
| Applicable Media | Steam, Thermal Oil, Gas, Water, Chemicals |
German standard Y-type straight through bellows globe valve
Steam pipelines, condensate systems, and auxiliary equipment requiring leak-free performance.
Hydrocarbon processing, refinery systems, and hazardous fluid transportation.
Corrosive and toxic media handling with environmental protection requirements.
Heat transfer fluid circulation and temperature control applications.
Clean process systems demanding zero emissions and contamination prevention.
High-purity gas transportation and vacuum service applications.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
