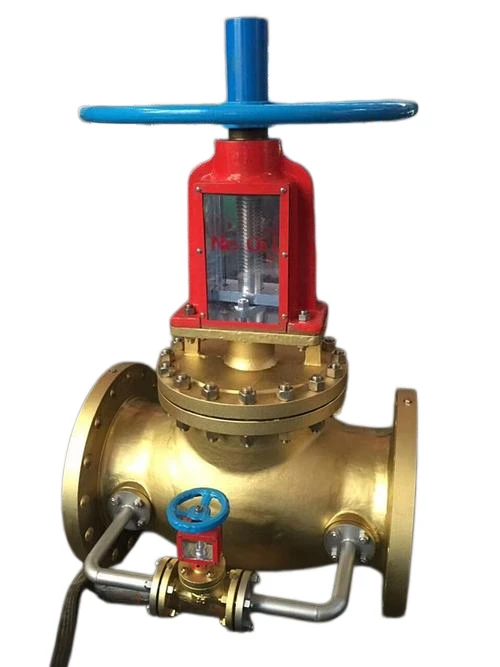

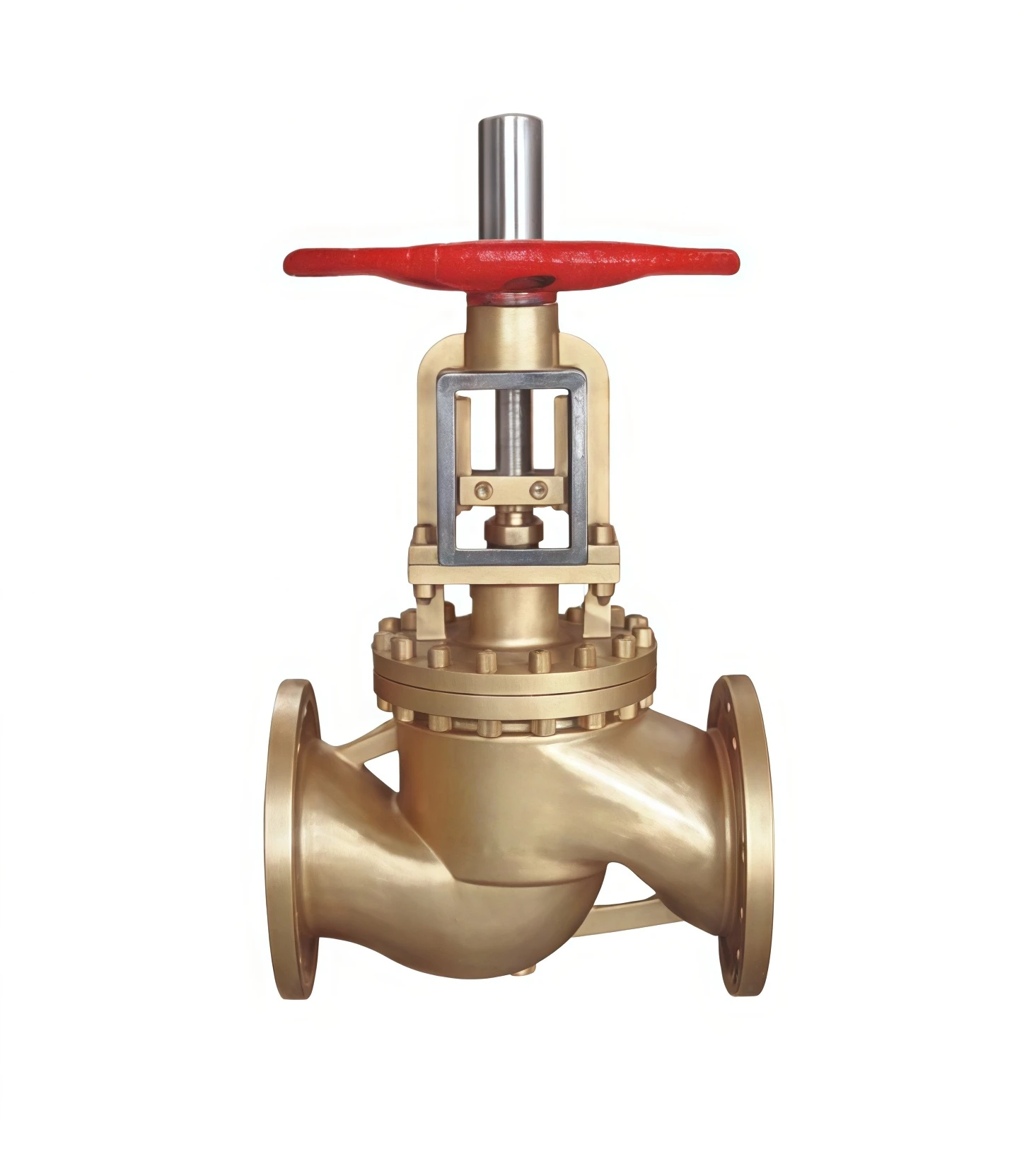

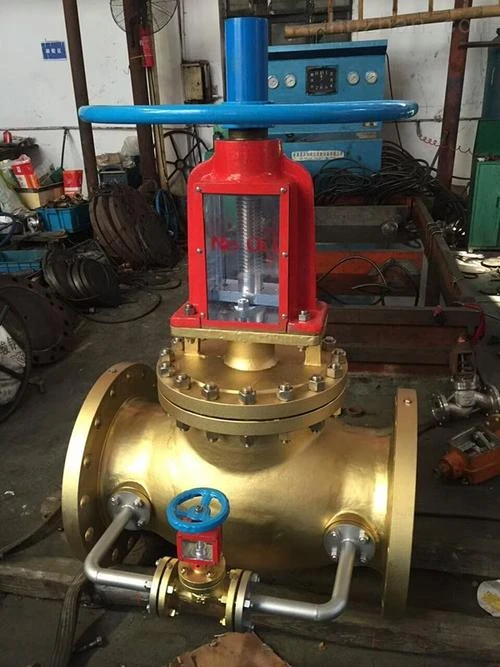

Oxygen globe valve
The Oxygen Globe Valve is engineered for high-purity oxygen systems and manufactured using oxygen-compatible materials and degreasing processes. Featuring precision-machined sealing surfaces, anti-static design, and strict cleanliness standards, it ensures safe operation, minimal leakage, and dependable flow control in industrial and medical oxygen applications.
Oxygen globe valve
The Oxygen Globe Valve is a specialized shut-off and regulating valve developed for oxygen pipelines and oxygen-related process systems. To ensure operational safety, all valve components undergo rigorous degreasing, cleaning, and oxygen-service preparation before assembly.
Manufactured from stainless steel, brass, bronze, or oxygen-compatible alloys, the valve offers excellent sealing performance, corrosion resistance, and fire safety characteristics. It is widely used in air separation plants, oxygen production facilities, steel manufacturing, medical gas systems, and chemical processing industries.
Our Oxygen Globe Valves are manufactured and tested according to international standards:
Oxygen globe valve
| Parameter | Specification |
|---|---|
| Product Name | Oxygen Globe Valve |
| Valve Type | Oxygen Service Globe Valve |
| Nominal Size | DN15 – DN600 |
| Pressure Rating | PN16 – PN160 |
| ANSI Class | Class 150 – Class 900 |
| Body Material | Stainless Steel, Bronze, Brass, Alloy Steel |
| Disc Material | Stainless Steel, Bronze, Hard-Faced Alloy |
| Seat Material | PTFE, PCTFE, Stainless Steel |
| Connection Type | Flanged, Threaded, Butt Weld, Socket Weld |
| Operation | Manual, Gear, Pneumatic, Electric |
| Temperature Range | -196°C to +200°C |
| Cleaning Standard | Oxygen Degreased & Oil-Free |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 623, ASME B16.34, DIN, GB |
| Applicable Media | Industrial Oxygen, Medical Oxygen, High-Purity Oxygen |
Oxygen globe valve
Oxygen production, purification, storage, and distribution systems.
Hospitals, oxygen supply stations, and medical oxygen distribution pipelines.
Oxygen injection systems for steelmaking, blast furnaces, and metal processing.
Oxygen-enriched process systems and oxidation applications.
Ground oxygen supply systems and specialized oxygen handling facilities.
High-purity oxygen transportation and storage infrastructure.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
