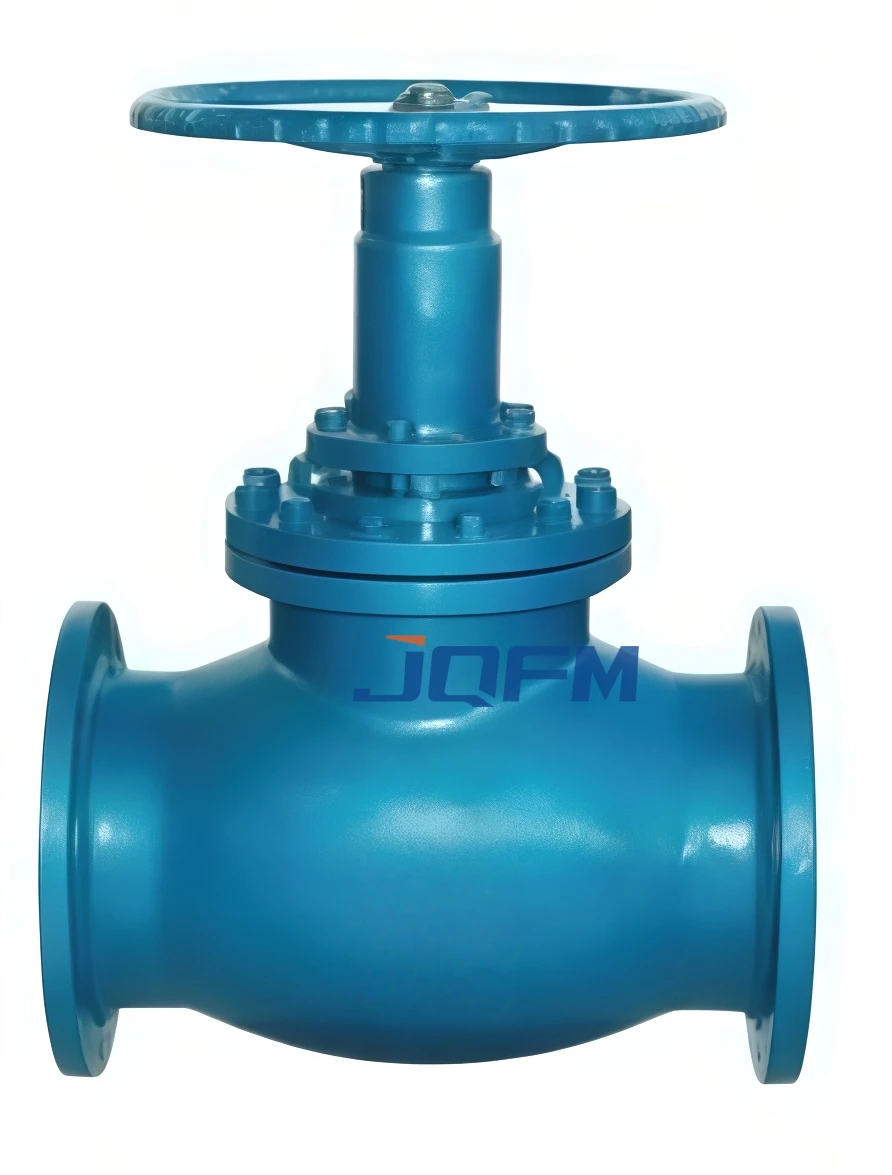

Piston globe valve
The Piston Globe Valve is engineered for pipelines requiring accurate flow regulation and high-pressure sealing. Its piston-guided disc reduces friction, enhances stability, and ensures reliable shut-off under severe conditions. Suitable for steam, oil, gas, and chemical media, the valve delivers long service life, minimal maintenance, and high operational safety.
Piston globe valve
The Piston Globe Valve utilizes a guided piston disc design to provide superior control and sealing performance in high-pressure, high-temperature industrial systems. The piston mechanism ensures smooth linear movement, reducing wear and extending operational life compared with conventional globe valves.
Manufactured from carbon steel, stainless steel, or alloy materials, it meets stringent industrial standards and is suitable for steam pipelines, high-pressure oil systems, and chemical processing units. Available in manual, electric, or pneumatic operation, the valve can integrate seamlessly into automated process systems.
Our Piston Globe Valves are manufactured and tested to meet international standards:
Piston globe valve
| Parameter | Specification |
|---|---|
| Product Name | Piston Globe Valve |
| Valve Type | Piston-Guided Globe Valve |
| Nominal Size | DN15 – DN600 |
| Pressure Rating | PN16 – PN250 / ANSI Class 150–600 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel |
| Disc Material | Piston-Guided Stainless Steel, Stellite Overlay, Hard-Faced Alloy |
| Seat Material | Stainless Steel / PTFE Optional |
| Connection Type | Flanged, Butt Weld, Socket Weld, Threaded |
| Operation | Manual, Bevel Gear, Pneumatic, Electric |
| Temperature Range | -29°C to +550°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 623, ASME B16.34, DIN, GB |
| Applicable Media | Steam, Oil, Gas, Chemical Liquids, High-Temperature Fluids |
Piston globe valve
High-pressure steam pipelines, turbine inlet/outlet, boiler feed systems.
Crude oil, refined products, high-pressure fuel lines, pipeline shut-off.
Corrosive or high-temperature chemical fluids requiring precise flow control.
Process control for high-viscosity, high-temperature hydrocarbons.
Thermal oil circuits, high-pressure hot water, and chemical heating loops.
High-pressure hydraulic and steam lines for vessels and platforms.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
