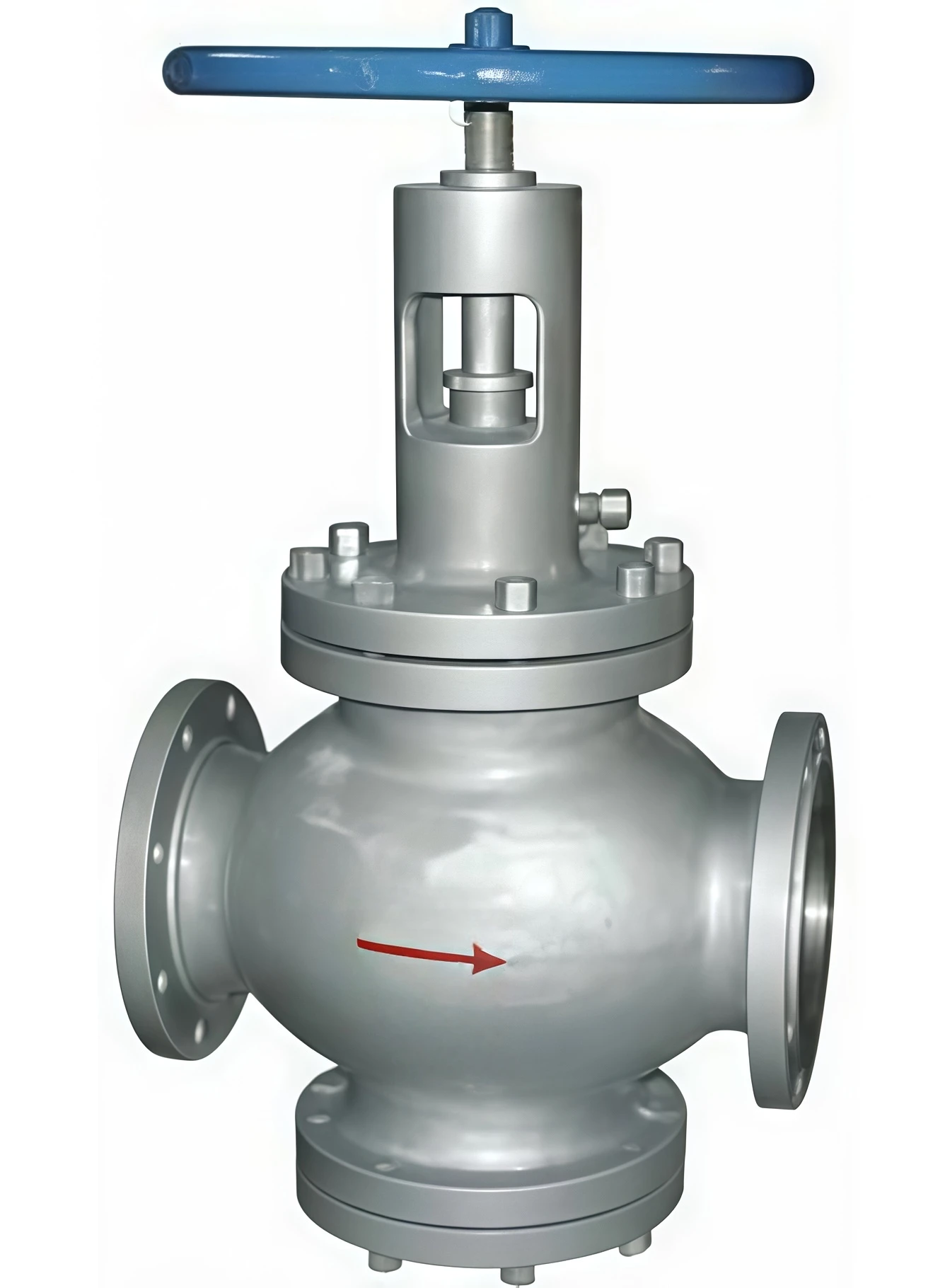

Throttle stop vent valve
The Throttle Stop Vent Valve is designed for safe venting, depressurization, and controlled flow release in high-pressure pipelines, boilers, and pressure vessels. Its precision throttling mechanism ensures smooth operation, reliable sealing, and minimal leakage. Suitable for gases, steam, and liquids, it enhances system safety, efficiency, and maintenance management.
Throttle stop vent valve
The Throttle Stop Vent Valve is engineered to regulate venting and pressure relief in industrial pipelines and vessels. The integrated throttle mechanism allows precise flow control, preventing sudden pressure surges and ensuring smooth operation.
Constructed from durable carbon steel, stainless steel, or alloy steel, it offers excellent corrosion resistance, high-temperature tolerance, and reliable sealing. The valve can be manually operated or fitted with pneumatic/electric actuators for automation. OEM customization enables adaptation of size, material, pressure rating, and connection type for specific industrial requirements.
Throttle Stop Vent Valves meet international industrial standards:
Throttle stop vent valve
| Parameter | Specification |
|---|---|
| Product Name | Throttle Stop Vent Valve |
| Nominal Size | DN15 – DN400 (½" – 16") |
| Pressure Rating | PN16 – PN420 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel |
| Trim Material | Stainless Steel, Alloy Steel, Hardfaced Steel |
| Seat Material | Metal Seat / Soft Seat (PTFE, NBR, EPDM) |
| Connection Type | Flanged, Threaded, Butt Weld |
| Operation | Manual, Pneumatic, Electric |
| Temperature Range | -29°C to +450°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 602 / API 623 / ASME B16.34 |
| Applicable Media | Steam, Gas, Water, Industrial Liquids |
Throttle stop vent valve
Boiler venting, steam system depressurization, and turbine vent control.
Pipeline venting, gas release, and safety pressure control.
Venting of corrosive fluids, reactors, and process lines.
Safe blowdown, venting, and controlled depressurization.
Pressure relief and controlled venting for gas, steam, and liquid pipelines.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
