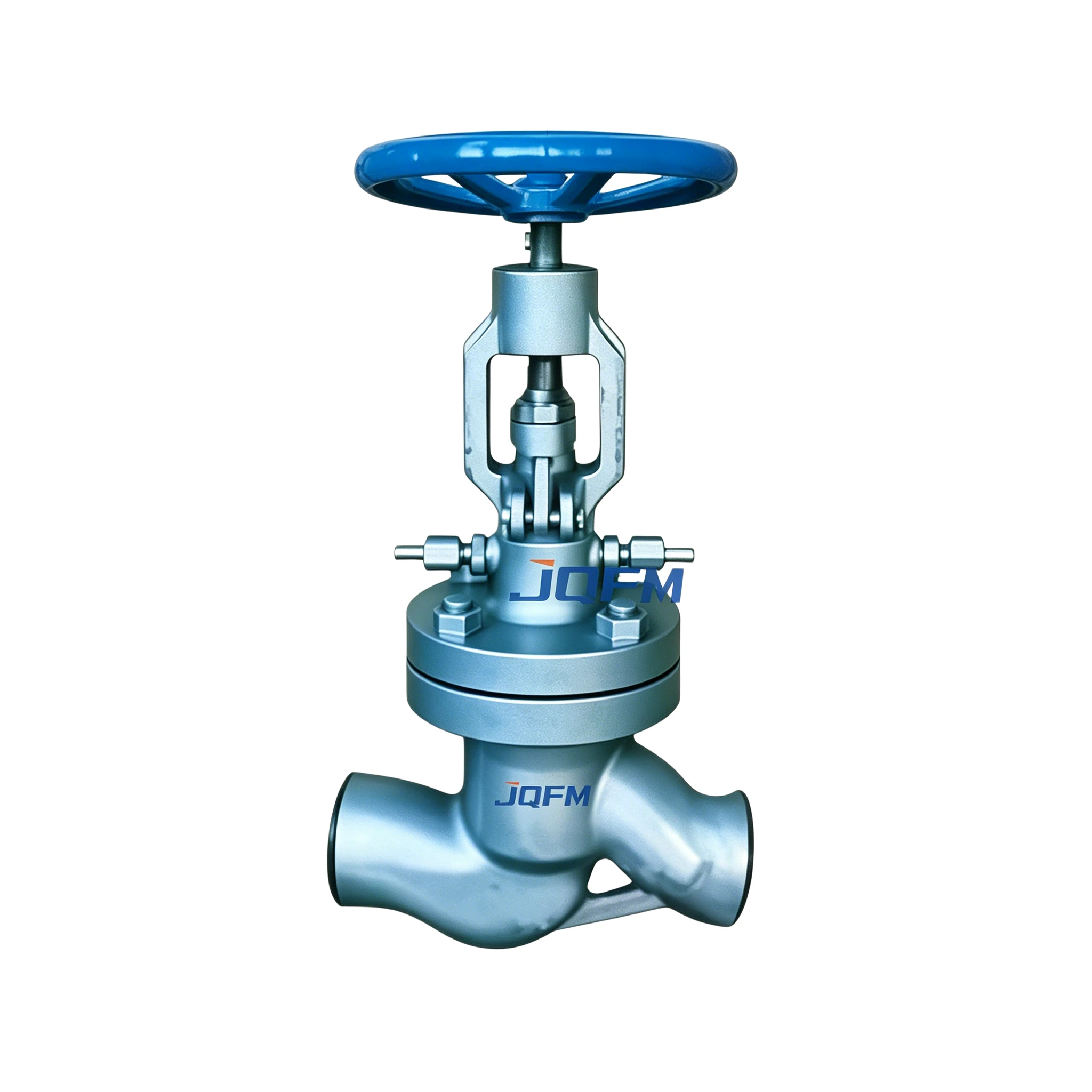

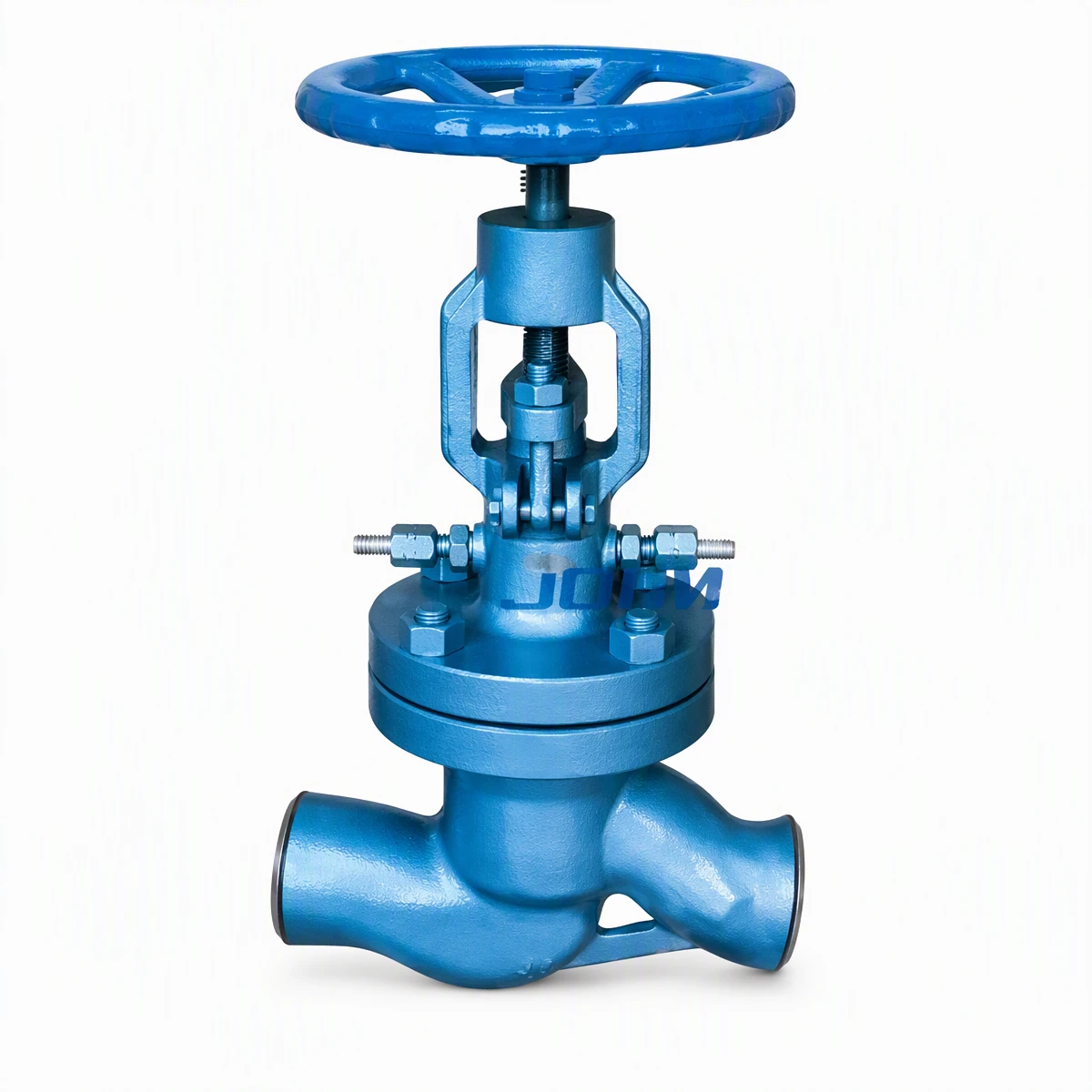

Water seal globe valve
The Water Seal Globe Valve is designed for high-pressure steam, gas, and liquid pipelines where tight sealing is critical. Its water seal structure prevents leakage and backflow, ensuring operational safety. Constructed with stainless steel, carbon steel, or alloy materials, the valve offers durability, corrosion resistance, and long-term reliability.
Water seal globe valve
The Water Seal Globe Valve is engineered for applications requiring absolute sealing and flow control, commonly used in boilers, steam lines, chemical pipelines, and energy systems. Its water-sealed design prevents leakage and enhances operational safety.
Available in manual, bevel gear, or electric operation, the valve can be customized for various sizes, pressure ratings, materials, and connection types. Its robust construction withstands high pressure, temperature fluctuations, and corrosive media, ensuring long service life.
Water Seal Globe Valves are manufactured and tested according to international standards:
Water seal globe valve
| Parameter | Specification |
|---|---|
| Product Name | Water Seal Globe Valve |
| Nominal Size | DN15 – DN600 (½" – 24") |
| Pressure Rating | PN16 – PN420 |
| ANSI Class | Class 150 – Class 1500 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel |
| Seat Material | Metal Seat / Soft Seat (PTFE, RPTFE, NBR) |
| Connection Type | Flanged, Threaded, Butt Weld |
| Operation | Manual, Bevel Gear, Electric |
| Temperature Range | -29°C to +550°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | ANSI / ASME B16.34, API 602 / 598 |
| Applicable Media | Steam, Gas, Water, Liquids, Condensate |
Water seal globe valve
Steam pipelines, boiler feedwater systems, and condensate lines.
High-pressure steam, gas, and liquid process pipelines.
Pressure control and leakage prevention in power and utility systems.
Steam and condensate handling, tight sealing for high-pressure operations.
High-pressure water and steam distribution pipelines.
Liquids, gases, and chemical media requiring water-sealed valves for leakage prevention.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
