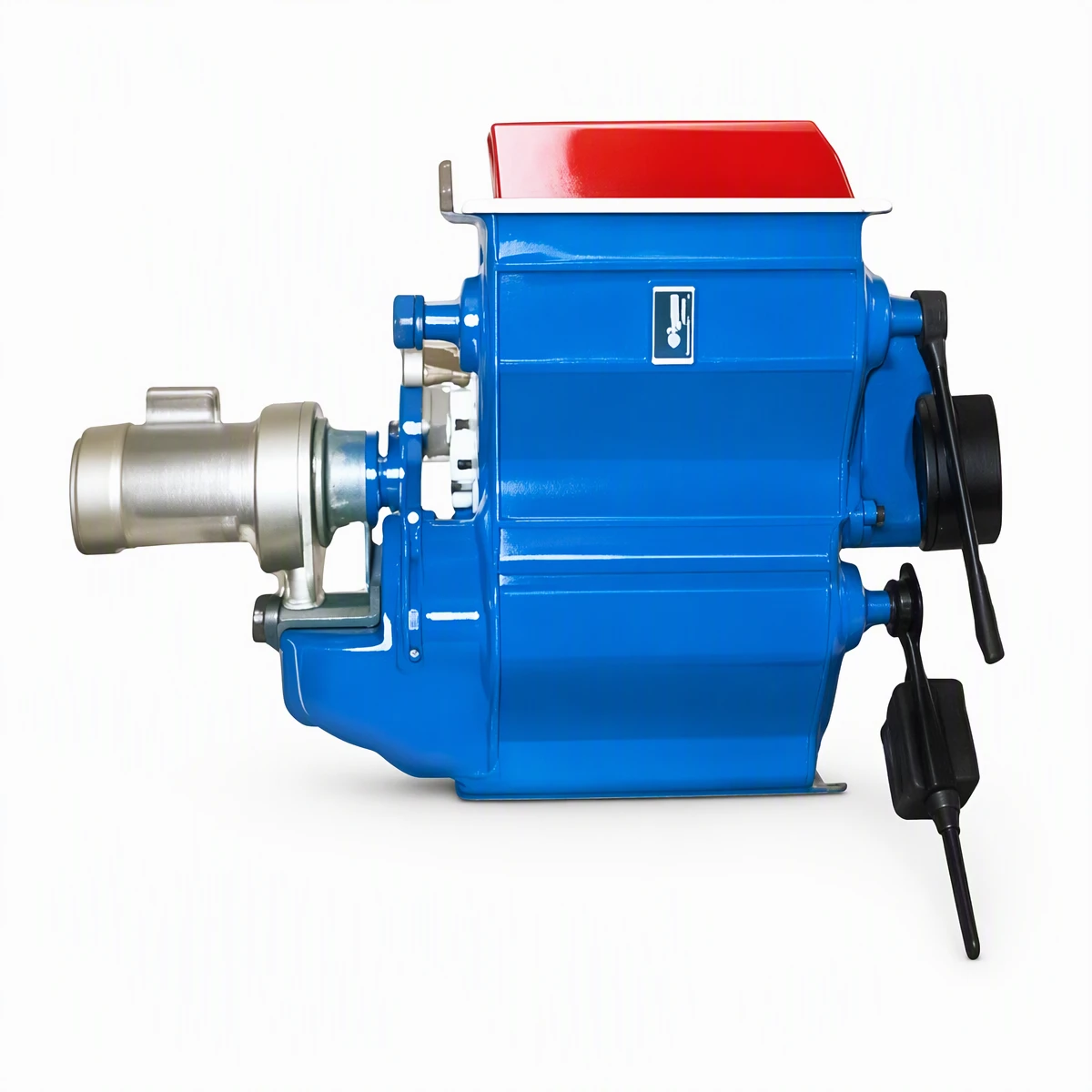

Electric double-layer ash discharge valve
The Electric Double-Layer Ash Discharge Valve is a specially designed industrial valve used for efficient ash discharge, material isolation, and dust control in solid handling systems. Featuring a double-layer sealing structure and electric drive operation, the valve provides reliable performance in high-temperature, dusty, and harsh industrial environments.
Designed for applications involving fly ash, powder materials, dust particles, and granular media, this valve ensures smooth discharge, excellent sealing, and stable operation. The double-layer structure effectively reduces material leakage, prevents dust escape, and improves equipment safety and service life.
Equipped with an electric actuator, the valve enables automatic operation and remote control, making it suitable for modern industrial automation systems. It is widely used in power plants, cement plants, metallurgy, chemical industries, and environmental protection systems.
Electric double-layer ash discharge valve
We provide professional OEM and ODM manufacturing services to develop customized electric double-layer ash discharge valves according to different industrial requirements.
Our Electric Double-Layer Ash Discharge Valves are manufactured under strict quality management systems and comply with international valve industry requirements.
Each valve is tested to ensure reliable sealing, stable discharge performance, and long-term operation in demanding industrial environments.
Parameter Specifications
| Item | Specification |
|---|---|
| Product Name | Electric Double-Layer Ash Discharge Valve |
| Valve Type | Electric Ash Discharge Valve / Double-Layer Isolation Valve |
| Operation Method | Electric Actuation |
| Application Medium | Fly Ash, Powder, Dust, Granular Materials |
| Valve Function | Ash Discharge, Isolation, Dust Control |
| Structure Type | Double-Layer Sealing Structure |
| Nominal Size | DN50–DN600 (Customized Available) |
| Connection Type | Flanged Connection |
| Flange Standard | ANSI / DIN / JIS / GB |
| Valve Body Material | Carbon Steel / Stainless Steel / Wear-Resistant Alloy |
| Sealing Material | High Temperature Resistant Seal / Wear Resistant Seal |
| Electric Actuator Type | Standard / Intelligent / Explosion-Proof Type |
| Power Supply | AC380V / AC220V / Customized |
| Working Pressure | 0.01–1.6 MPa (Customized Available) |
| Operating Temperature | -20℃ to +500℃ (Customized Available) |
| Control Mode | Electric / Remote Control / PLC Control |
| Leakage Performance | Low Leakage Double Sealing Design |
| Discharge Medium Temperature | High Temperature Ash and Powder Materials |
| Installation Position | Vertical / Horizontal Installation |
| Surface Treatment | Anti-Corrosion Coating / Customized |
| Service Life | Long Service Life Design |
| Maintenance | Easy Maintenance Structure |
| Certification | ISO, CE, Explosion-Proof Standards |
| OEM Service | Size, Material, Structure, Actuator, Logo, Packaging Customization |
Industry Applications
The Electric Double-Layer Ash Discharge Valve is widely used in industries requiring reliable discharge and isolation of ash, dust, and powder materials.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
