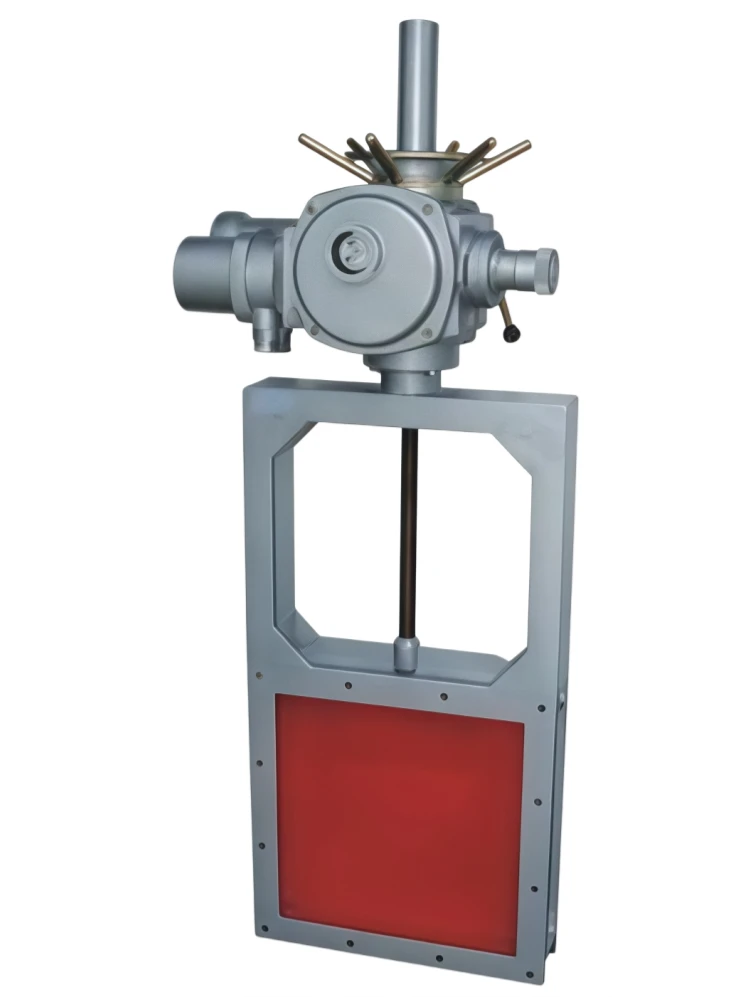

Electric spiral gate
The Electric Spiral Gate Valve is an advanced electrically actuated flow control valve designed for reliable opening, closing, and regulation of industrial pipelines. Featuring a spiral gate structure and electric actuator drive system, it provides accurate control, smooth operation, and excellent sealing performance.
The valve is suitable for applications requiring remote operation, automatic control, and frequent flow adjustment. Its robust construction ensures high durability, low maintenance requirements, and stable performance under demanding working conditions.
With professional manufacturing technology, strict quality inspection, and complete valve industry certifications, our electric spiral gate valves provide reliable solutions for industrial automation and fluid control systems worldwide.
Electric spiral gate
We provide comprehensive OEM and ODM services to meet customers’ specific project requirements, including:
We have a complete quality management system and full valve industry certifications, ensuring excellent product performance, safety, and compliance with international standards.
Parameter Specifications
| Item | Specification |
|---|---|
| Product Name | Electric Spiral Gate Valve |
| Valve Type | Electric Actuated Gate Valve |
| Operating Method | Electric Actuator Drive |
| Application Medium | Water, Oil, Gas, Steam, Slurry, Industrial Fluids |
| Nominal Diameter | DN50 – DN2000 (Customized Available) |
| Pressure Rating | PN10 – PN40 / Class 150–300 (Customized) |
| Operating Temperature | -20℃ to +400℃ (Customized Available) |
| Valve Body Material | Cast Iron / Ductile Iron / Carbon Steel / Stainless Steel |
| Gate Material | Stainless Steel / Carbon Steel / Alloy Material |
| Stem Material | Stainless Steel / Alloy Steel |
| Sealing Material | EPDM / NBR / PTFE / Metal Seal |
| Actuator Type | Electric Actuator |
| Control Mode | ON/OFF / Modulating / Intelligent Control |
| Power Supply | AC24V / AC110V / AC220V / AC380V |
| Protection Grade | IP65 / IP67 (Customized Available) |
| Connection Type | Flange / Welding / Customized |
| Flow Direction | Bidirectional |
| Sealing Performance | High Reliability / Low Leakage |
| Operation Torque | Customized According to Valve Size |
| Installation Position | Horizontal or Vertical Installation |
| Surface Treatment | Epoxy Coating / Anti-corrosion Coating |
| Communication Interface | Optional (PLC / Remote Control System) |
| Testing Standard | Pressure Test, Leakage Test, Performance Test |
| Certification | CE, ISO Quality System, Valve Industry Related Certifications |
| OEM Service | Available |
Industry Applications
Electric Spiral Gate Valves are widely used in various industrial fields, including:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
