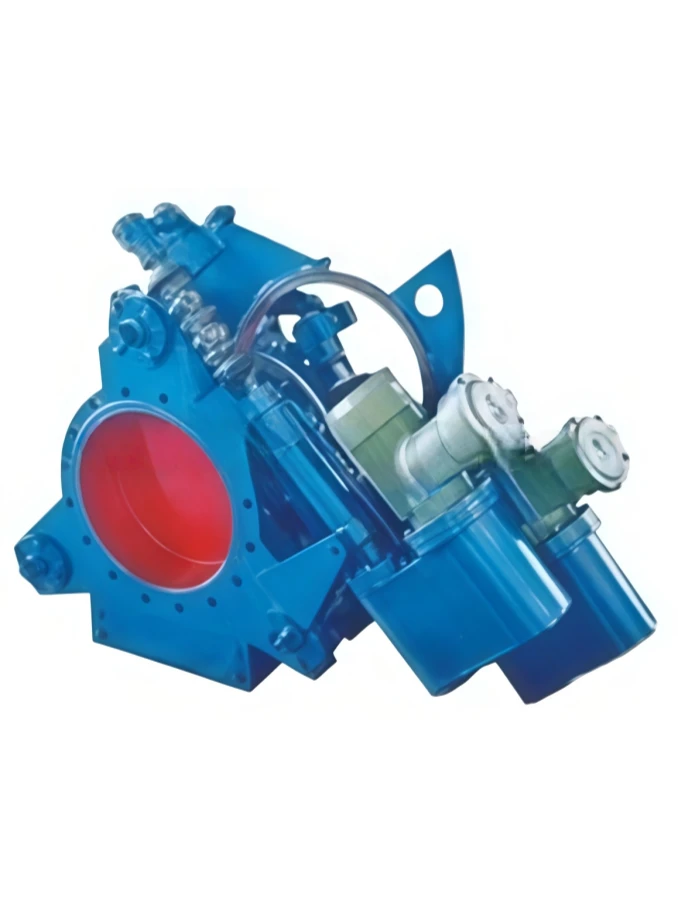

Electro hydraulic blind valve
The Electro Hydraulic Blind Valve is an advanced automated pipeline isolation valve designed for safe, efficient, and reliable positive isolation in industrial piping systems. Combining electric control technology with hydraulic drive power, the valve provides high operating torque, precise control, and stable performance for large-diameter and high-pressure pipeline applications.
Also known as an electro-hydraulic spectacle blind valve or electro-hydraulic line blind valve, it is designed to replace traditional manual blind plate operations, enabling remote control, automatic switching, and safer maintenance procedures.
The valve adopts a sector blind plate structure, providing clear open/close status indication and ensuring complete pipeline isolation during maintenance, inspection, and emergency shutdown operations. It is widely used in oil & gas, petrochemical, chemical, power generation, metallurgy, and large-scale industrial pipeline systems.

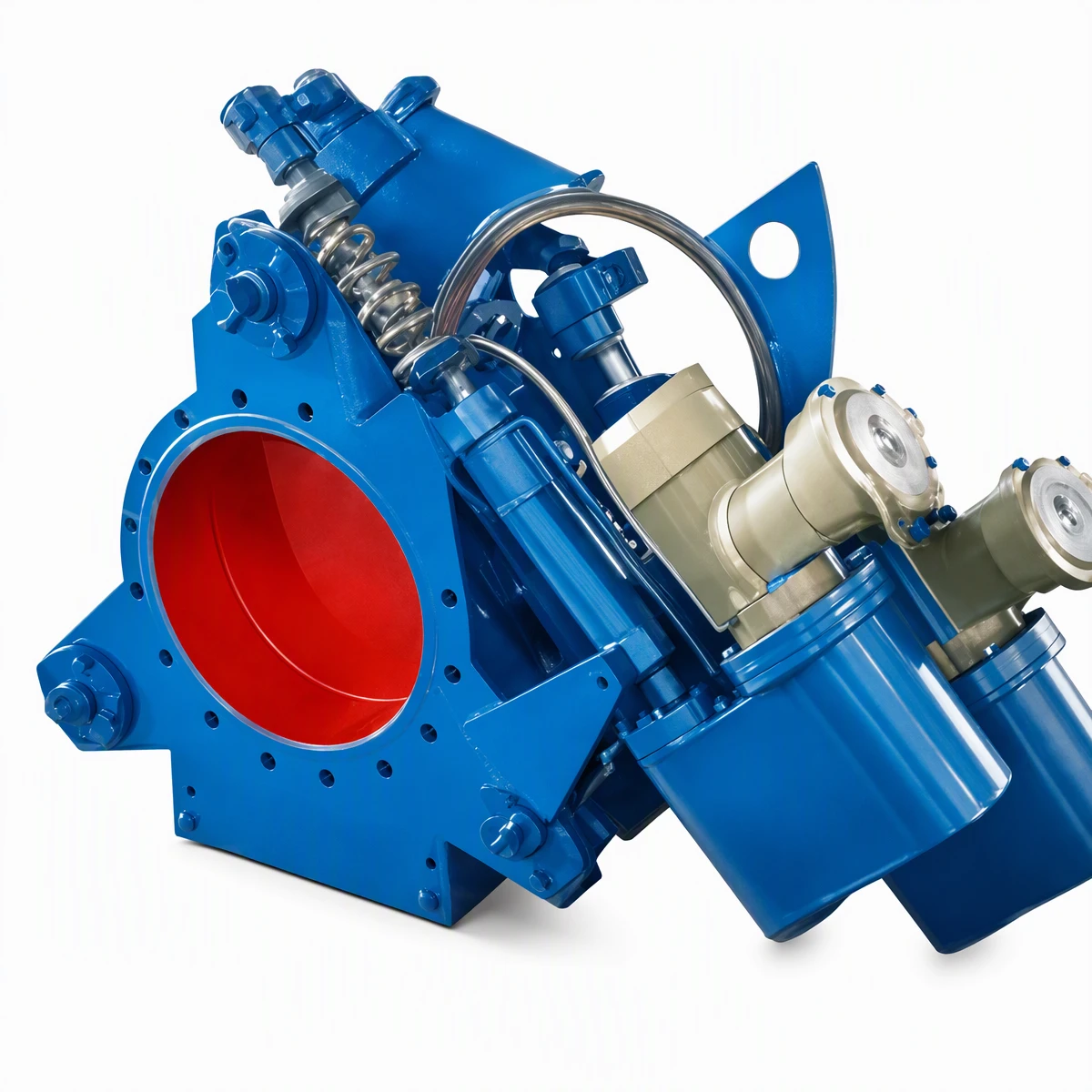

Electro hydraulic blind valve
We provide professional OEM and ODM manufacturing services to develop customized electro hydraulic blind valves according to different industrial applications.
Our Electro Hydraulic Blind Valves are manufactured under strict quality management systems and comply with international valve industry standards.
Each valve is tested to ensure accurate operation, reliable isolation, and safe performance in critical industrial applications.
Parameter Specifications
| Item | Specification |
|---|---|
| Product Name | Electro Hydraulic Blind Valve |
| Alternative Name | Electro Hydraulic Spectacle Blind Valve / Line Blind Valve |
| Valve Type | Automated Pipeline Isolation Valve |
| Operation Method | Electro Hydraulic Actuation |
| Application Medium | Gas, Oil, Water, Chemical Fluids, Industrial Media |
| Valve Function | Positive Isolation and Emergency Shut-Off |
| Structure Type | Sector Plate / Spectacle Blind Design |
| Nominal Size | DN50–DN3000 (Customized Available) |
| Connection Type | Flanged Connection |
| Flange Standard | ANSI / DIN / JIS / GB |
| Valve Body Material | Carbon Steel / Stainless Steel / Alloy Steel |
| Blind Plate Material | Stainless Steel / Carbon Steel / Alloy Steel |
| Sealing Material | PTFE / Graphite / Metal Seal / Customized |
| Drive System | Electro Hydraulic Power Unit + Hydraulic Cylinder |
| Power Supply | AC380V / AC220V / Customized |
| Control Mode | Local Control / Remote Control / PLC / DCS |
| Hydraulic Pressure | Customized According to Valve Size |
| Working Pressure | PN10–PN420 / Class 150–2500 (Customized) |
| Operating Temperature | -196℃ to +500℃ (Customized Available) |
| Switching Method | Automatic Hydraulic Drive Switching |
| Leakage Performance | Zero Leakage Positive Isolation Design |
| Position Feedback | Open/Close Signal Feedback (Optional) |
| Installation Position | Horizontal / Vertical Pipeline Installation |
| Protection Grade | IP65 / IP67 (Optional) |
| Surface Treatment | Anti-Corrosion Coating / Customized |
| Service Life | Long Cycle Operation Design |
| Certification | ISO, CE, API, EN Standards |
| OEM Service | Size, Material, Structure, Hydraulic System, Logo, Packaging Customization |
Industry Applications
The Electro Hydraulic Blind Valve is widely used in industries requiring safe, automated, and reliable pipeline isolation.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
