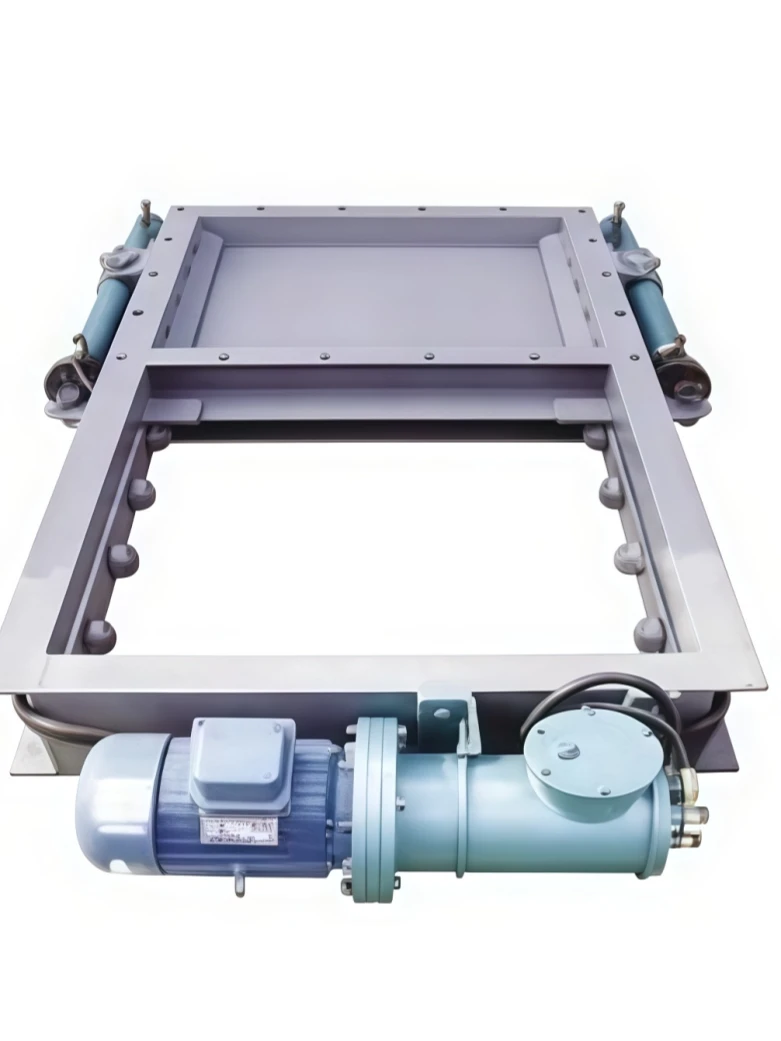

Electro hydraulic flat gate
The Electro Hydraulic Flat Gate Valve is a high-performance industrial valve designed for reliable shut-off and flow isolation in large-scale pipeline systems. It combines the advantages of a flat gate valve structure with an electro-hydraulic actuator system, providing powerful operation capability, precise control, and stable performance under demanding working conditions.
The valve adopts a flat gate plate design, which offers low flow resistance, excellent sealing performance, and minimal pressure loss. The electro-hydraulic drive system enables remote operation, automatic control, and reliable opening and closing even under high-pressure or large-diameter pipeline conditions.
Manufactured with advanced production technology and high-quality materials, this valve provides excellent durability, corrosion resistance, and long service life. It is widely used in oil & gas pipelines, petrochemical facilities, power plants, water conservancy projects, and other industrial systems requiring safe and efficient flow isolation.
Electro hydraulic flat gate
We provide comprehensive OEM and ODM customization services to meet different industrial project requirements.
Available materials include:
Our Electro Hydraulic Flat Gate Valves are manufactured under strict quality management systems and supplied with complete valve industry certification documents, including:
We provide reliable valve manufacturing solutions with professional engineering support for global customers.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Electro Hydraulic Flat Gate Valve |
| Valve Type | Flat Gate Valve with Electro Hydraulic Actuator |
| Operating Principle | Electro-hydraulic driven gate opening and closing |
| Main Function | Pipeline isolation, shut-off control, flow regulation |
| Nominal Size | DN50–DN2000 (Customized available) |
| Pressure Rating | PN1.0–PN42.0 MPa / Class 150–2500 |
| Working Temperature | -196℃ to +600℃ (Depending on material selection) |
| Applicable Medium | Oil, gas, water, steam, chemical fluids, industrial media |
| Valve Body Material | Carbon Steel / Stainless Steel / Alloy Steel |
| Gate Plate Material | Stainless Steel / Alloy Steel / Customized |
| Sealing Type | Soft Seal / Metal Seal |
| Actuator Type | Electro Hydraulic Actuator |
| Control Method | Local Control / Remote Control / PLC / DCS |
| Connection Type | Flanged / Butt Weld / Customized |
| Design Standard | API 6D / API 600 / ASME B16.34 / Customized |
| Face-to-Face Standard | ASME B16.10 / DIN / GB standards |
| Flange Standard | ANSI B16.5 / EN1092 / JIS / GB standards |
| Leakage Standard | API 598 / ISO 5208 |
| Protection Grade | IP65/IP67 (According to actuator configuration) |
| Explosion-Proof Option | Available for hazardous environments |
| Flow Characteristic | Full bore, low pressure loss |
| Installation Position | Horizontal or vertical installation |
| Emergency Operation | Manual override available |
| Service Life | Long service life with high reliability |
| Inspection | Pressure test, sealing test, functional test |
| OEM Service | Size, material, actuator, control system, logo customization |
Industry Applications
The Electro Hydraulic Flat Gate Valve is widely used in industries requiring large-diameter pipeline isolation, remote operation, and high reliability.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
