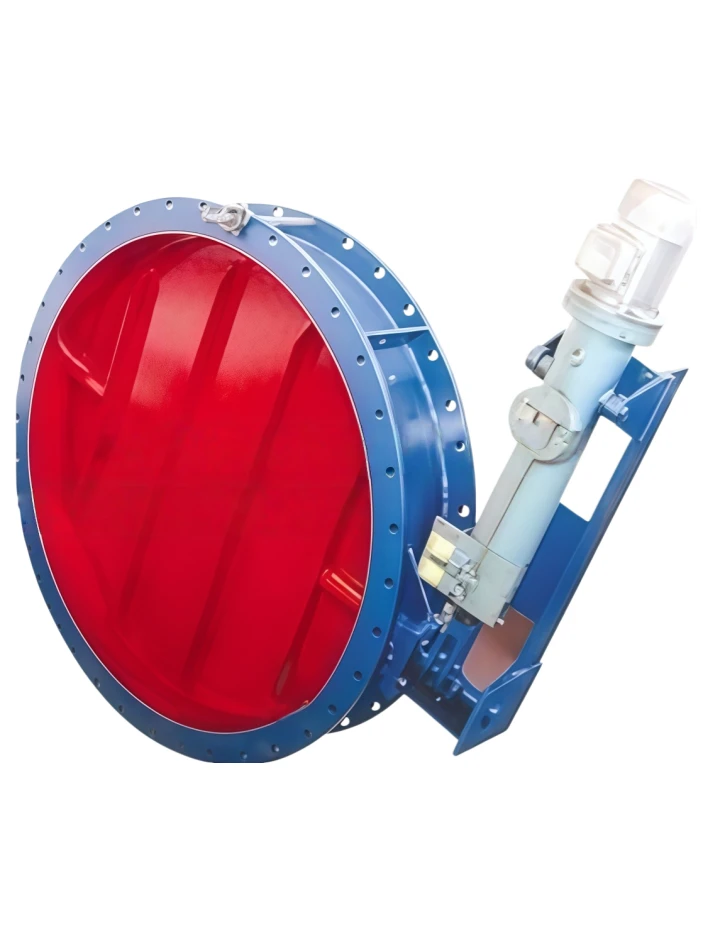

Electro hydraulic pneumatic butterfly valve
The Electro Hydraulic Pneumatic Butterfly Valve is an advanced industrial flow control valve that integrates electro-hydraulic and pneumatic drive technologies to achieve precise regulation, reliable shut-off, and automated operation in complex pipeline systems.
The valve adopts a high-performance butterfly structure with a lightweight disc design, low flow resistance, and fast response characteristics. The combined electro-hydraulic pneumatic actuation system provides powerful driving force, stable operation, and flexible control options, making it suitable for large-diameter pipelines, harsh industrial environments, and automated process systems.
Designed with high-strength materials and advanced sealing technology, the valve offers excellent corrosion resistance, pressure resistance, and long service life. It can be customized with different actuator configurations, control systems, and materials according to specific working conditions.
The valve is widely used in oil & gas, power generation, chemical processing, metallurgy, water treatment, ventilation systems, and industrial automation applications requiring reliable flow control and remote operation.
Electro hydraulic pneumatic butterfly valve
We provide professional OEM and ODM customization services to meet different industrial valve requirements.
Available materials include:
Our Electro Hydraulic Pneumatic Butterfly Valves are manufactured under strict quality management systems and supplied with complete valve industry certification documents, including:
We provide reliable automated valve solutions with professional manufacturing capability and global OEM service support.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Electro Hydraulic Pneumatic Butterfly Valve |
| Valve Type | Automated Butterfly Valve / Control Butterfly Valve |
| Operating Principle | Butterfly disc rotation driven by electro-hydraulic and pneumatic systems |
| Main Function | Flow regulation, pipeline isolation, automatic control |
| Nominal Size | DN50–DN5000 (Customized available) |
| Pressure Rating | PN0.1–PN6.4 MPa (Customized available) |
| Working Temperature | -40℃ to +600℃ (Depending on material selection) |
| Applicable Medium | Air, gas, water, oil, steam, chemical fluids, industrial media |
| Valve Body Material | Carbon Steel / Stainless Steel / Cast Steel / Alloy Steel |
| Disc Material | Stainless Steel / Alloy Steel / Customized Materials |
| Shaft Material | Stainless Steel / Alloy Steel |
| Sealing Type | Soft Seal / Metal Seal / High Temperature Seal |
| Connection Type | Flanged / Wafer / Lug / Welded / Customized |
| Drive System | Electro-Hydraulic + Pneumatic Actuation System |
| Control Mode | Local Control / Remote Control / PLC / DCS Integration |
| Operation Method | Automatic / Manual Emergency Override |
| Actuator Protection Grade | IP65–IP67 (According to actuator configuration) |
| Explosion-Proof Option | Available for hazardous environments |
| Flow Characteristic | Precise regulation and low pressure loss |
| Flow Direction | Bidirectional |
| Design Standard | API / DIN / ANSI / GB Standards |
| Leakage Standard | API 598 / ISO 5208 |
| Corrosion Resistance | Suitable for harsh industrial environments |
| Response Speed | Fast opening and closing performance |
| Maintenance Requirement | Low maintenance design |
| Service Life | Long cycle operation with high reliability |
| Inspection | Pressure test, sealing test, functional operation test |
| OEM Service | Size, material, actuator, control system, logo, packaging customization |
Industry Applications
The Electro Hydraulic Pneumatic Butterfly Valve is widely used in industries requiring reliable automation, precise flow control, and remote operation.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
