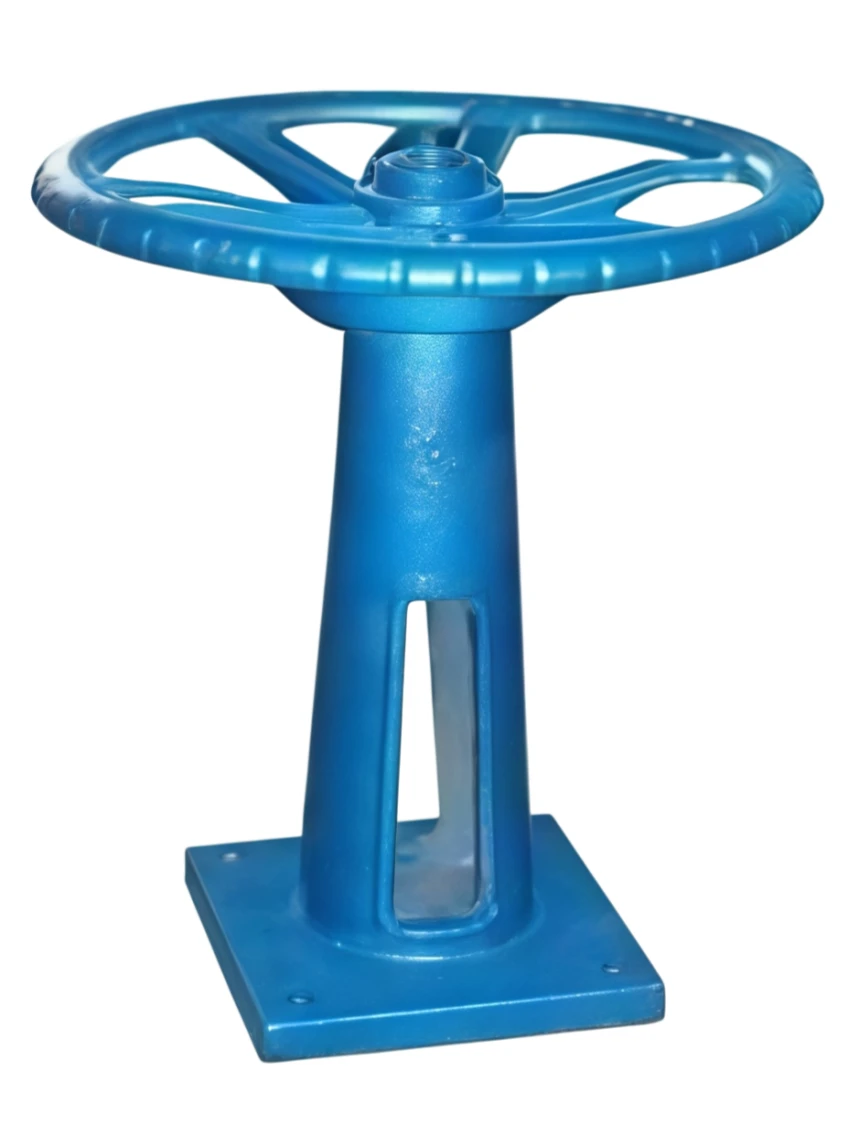

Hand wheel hoist
The Hand Wheel Hoist is a manually operated lifting and driving device specially designed for the opening, closing, and positioning control of industrial valves, gates, and mechanical equipment. It provides a simple, reliable, and efficient solution for applications where manual operation is required without external power sources.
The hand wheel hoist adopts a high-strength mechanical transmission structure, providing smooth operation, high output torque, and accurate control. It is commonly used for operating large-size valves, gate valves, butterfly valves, sluice gates, and other industrial flow control equipment.
With a compact design, excellent durability, and easy maintenance, the Hand Wheel Hoist is suitable for harsh industrial environments. It can be customized according to valve size, operating torque requirements, installation space, and environmental conditions.
The product supports various configurations, including manual handwheel operation, gearbox transmission, rising stem drive, and customized mounting solutions, making it an ideal choice for reliable valve operation systems.
Hand wheel hoist
We provide professional OEM and ODM customization services to meet different valve operating and mechanical drive requirements.
Available materials include:
Our Hand Wheel Hoists are manufactured under strict quality management systems and supplied with complete valve industry certification documents, including:
We provide reliable valve operation solutions with professional manufacturing capability and global OEM service support.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Hand Wheel Hoist |
| Product Type | Manual Valve Hoist / Valve Gear Operator |
| Operating Principle | Mechanical gear transmission for valve opening and closing |
| Main Function | Manual operation and torque amplification for industrial valves |
| Application | Gate valves, butterfly valves, sluice gates, industrial equipment |
| Operating Method | Hand wheel manual operation |
| Output Torque | 100–50000 N·m (Customized available) |
| Lifting Capacity | Customized according to application requirements |
| Transmission Ratio | Customized according to torque requirements |
| Applicable Valve Size | DN50–DN5000 (Depending on valve type) |
| Body Material | Cast Iron / Ductile Iron / Carbon Steel / Stainless Steel |
| Gear Material | Alloy Steel / Hardened Steel |
| Shaft Material | Stainless Steel / Alloy Steel |
| Lubrication Method | Grease lubrication / Oil lubrication |
| Protection Grade | Outdoor protection design available |
| Installation Type | Valve-mounted / Equipment-mounted |
| Operating Temperature | -40℃ to +120℃ (Customized available) |
| Corrosion Protection | Painting / Epoxy Coating / Special Treatment |
| Drive Direction | Manual clockwise/counterclockwise operation |
| Emergency Operation | Available according to requirements |
| Maintenance Requirement | Low maintenance design |
| Service Life | Long service life with reliable mechanical performance |
| Inspection | Torque test, load test, dimensional inspection |
| OEM Service | Size, torque, material, coating, logo, packaging customization |
Industry Applications
The Hand Wheel Hoist is widely used in industries requiring manual operation and reliable mechanical control of valves and gates.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
