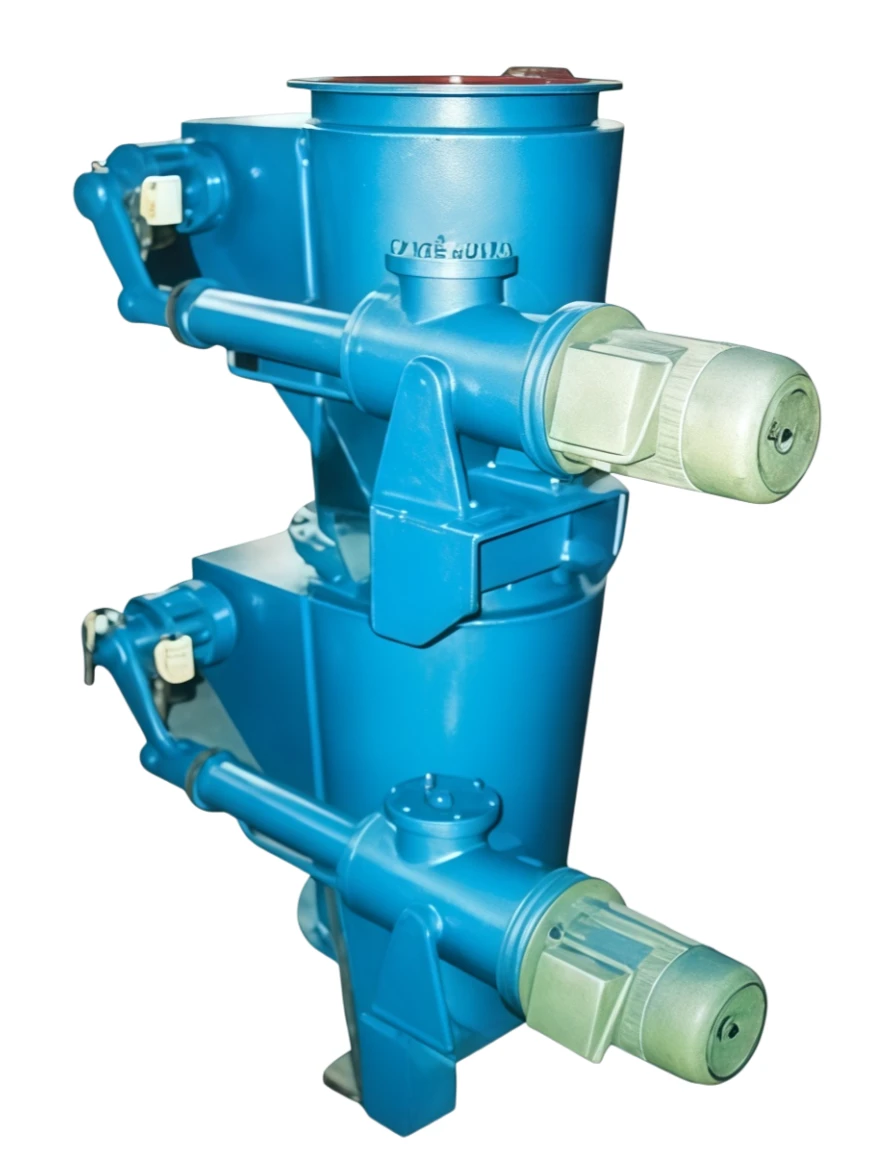

Intelligent double-layer ash discharge valve
The Intelligent Double-Layer Ash Discharge Valve is an advanced automated valve designed for efficient ash discharge, material isolation, and intelligent control in industrial solid handling systems. Featuring a double-layer sealing structure combined with an intelligent control system, the valve provides high reliability, precise operation, and excellent sealing performance in harsh industrial environments.
Designed for handling fly ash, dust, powder, and granular materials, this valve effectively prevents material leakage and dust emissions while improving system automation and operational safety. Equipped with intelligent electric control technology, it supports remote monitoring, automatic operation, fault diagnosis, and integration with PLC/DCS control systems.
The valve is widely used in power plants, cement production, metallurgy, chemical processing, waste treatment, and other industries requiring reliable and intelligent ash discharge solutions.
Intelligent double-layer ash discharge valve
We provide professional OEM and ODM services to develop customized intelligent double-layer ash discharge valves according to different industrial requirements.
Our Intelligent Double-Layer Ash Discharge Valves are manufactured under strict quality management systems and comply with international industrial valve standards.
Each valve is tested to ensure intelligent operation, reliable sealing, and stable performance in demanding industrial environments.
Parameter Specifications
| Item | Specification |
|---|---|
| Product Name | Intelligent Double-Layer Ash Discharge Valve |
| Valve Type | Intelligent Ash Discharge Valve / Double-Layer Isolation Valve |
| Operation Method | Intelligent Electric Actuation |
| Application Medium | Fly Ash, Dust, Powder, Granular Materials |
| Valve Function | Automatic Ash Discharge, Isolation, Dust Control |
| Structure Type | Double-Layer Sealing Structure |
| Control System | Intelligent Control / PLC / DCS Integration |
| Nominal Size | DN50–DN600 (Customized Available) |
| Connection Type | Flanged Connection |
| Flange Standard | ANSI / DIN / JIS / GB |
| Valve Body Material | Carbon Steel / Stainless Steel / Wear-Resistant Alloy |
| Sealing Material | High Temperature Resistant / Wear Resistant Seal |
| Electric Actuator Type | Intelligent Electric Actuator |
| Power Supply | AC380V / AC220V / Customized |
| Control Signal | 4-20mA / Remote Control / Field Bus (Optional) |
| Working Pressure | 0.01–1.6 MPa (Customized Available) |
| Operating Temperature | -20℃ to +600℃ (Customized Available) |
| Control Mode | Automatic / Remote / Manual Override |
| Leakage Performance | Double Sealing Low Leakage Design |
| Discharge Medium | Ash, Dust, Powder, Solid Particles |
| Installation Position | Vertical / Horizontal Installation |
| Protection Grade | IP65 / IP67 (Optional) |
| Surface Treatment | Anti-Corrosion Coating / Customized |
| Service Life | Long Service Life Design |
| Maintenance | Intelligent Monitoring and Easy Maintenance |
| Certification | ISO, CE, Explosion-Proof Standards |
| OEM Service | Size, Material, Structure, Control System, Logo, Packaging Customization |
Industry Applications
The Intelligent Double-Layer Ash Discharge Valve is widely used in industries requiring automated discharge, dust control, and reliable material isolation.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
