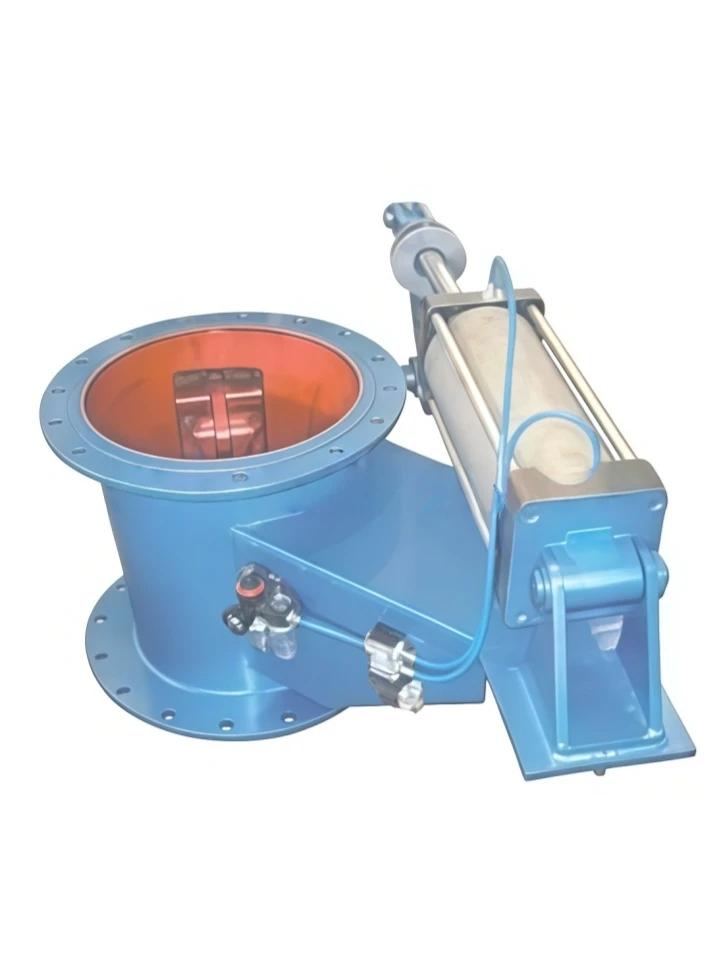

Pneumatic bell ash unloading valve
The Pneumatic Bell Ash Unloading Valve is a specialized industrial valve designed for the controlled discharge of fly ash, dry ash, powder materials, and granular solids in pneumatic conveying and ash handling systems. It adopts a bell-shaped sealing structure combined with pneumatic drive technology, providing fast response, reliable sealing, and efficient material discharge performance.
The valve is widely used in high-pressure ash conveying systems where excellent airtightness, wear resistance, and automatic operation are required. Its pneumatic actuation enables rapid opening and closing cycles, reducing material leakage and improving the efficiency and reliability of ash transportation systems.
Manufactured with wear-resistant materials and precision machining technology, the valve provides excellent durability under harsh conditions involving abrasive particles, dust, and continuous operation. Customized solutions are available according to system pressure, material characteristics, operating temperature, and automation requirements.
Pneumatic bell ash unloading valve
We provide professional OEM and ODM customization services to meet different ash handling and pneumatic conveying system requirements.
Available materials include:
Our Pneumatic Bell Ash Unloading Valves are manufactured under strict quality management systems and supplied with complete valve industry certification documents, including:
We provide reliable ash discharge solutions with professional manufacturing capability and global OEM service support.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Pneumatic Bell Ash Unloading Valve |
| Valve Type | Pneumatic Ash Discharge Valve / Bell Valve |
| Operating Principle | Pneumatic actuator drives bell sealing structure for opening and closing |
| Main Function | Ash discharge, material isolation, pneumatic conveying control |
| Nominal Size | DN50–DN500 (Customized available) |
| Pressure Rating | PN0.6–PN4.0 MPa (Customized available) |
| Working Temperature | -40℃ to +300℃ (Customized for higher temperatures) |
| Applicable Medium | Fly ash, dry ash, powder materials, granular solids |
| Valve Body Material | Carbon Steel / Stainless Steel / Alloy Steel |
| Bell / Sealing Component Material | Stainless Steel / Wear-resistant Alloy |
| Sealing Type | Metal Seal / Soft Seal / High-temperature Seal |
| Drive Method | Pneumatic Actuation |
| Operating Air Pressure | 0.4–0.8 MPa (Customized available) |
| Connection Type | Flanged / Welded / Customized |
| Control Mode | Solenoid Valve / PLC / DCS Automatic Control |
| Opening & Closing Speed | Fast response operation |
| Wear Resistance | Enhanced structure for abrasive materials |
| Dust Protection | Suitable for high-dust environments |
| Leakage Standard | According to customer requirements |
| Design Standard | API / DIN / ANSI / GB Standards |
| Corrosion Resistance | Suitable for industrial ash handling environments |
| Maintenance Requirement | Low maintenance structure |
| Service Life | Long cycle operation under heavy-duty conditions |
| Inspection | Pressure test, sealing test, pneumatic function test |
| OEM Service | Size, material, actuator, control system, logo customization |
Industry Applications
The Pneumatic Bell Ash Unloading Valve is widely used in industries requiring reliable discharge and automatic control of dry ash and powder materials.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
