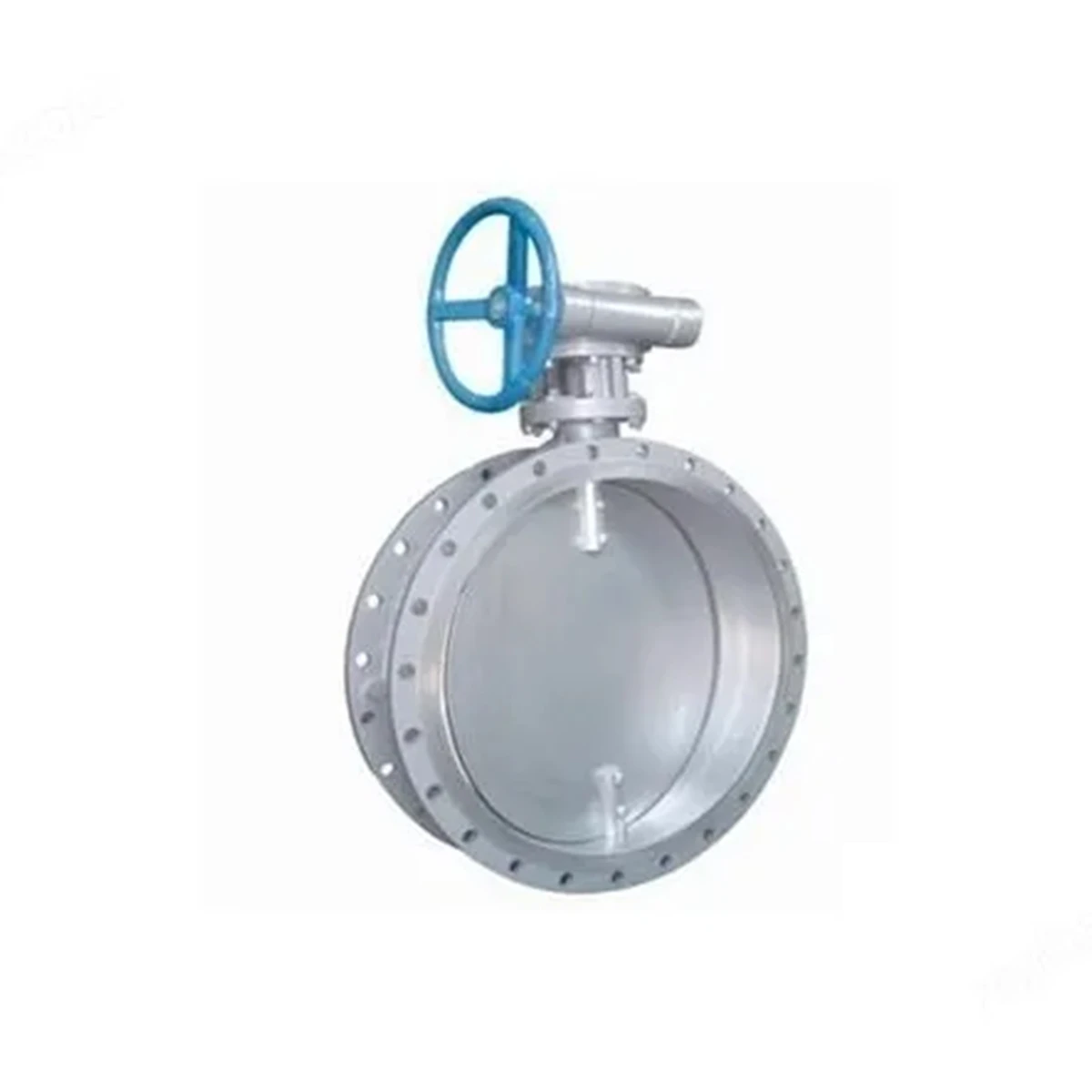

Ventilation Regulating Butterfly Valve

Ventilation Regulating Butterfly Valve Parameter Specifications Industry Applications

Ventilation Regulating Butterfly Valve

Product Overview

The Ventilation Regulating Butterfly Valve is specifically designed for regulating and isolating airflow in ventilation, exhaust gas, dust collection, and low-pressure air handling systems. Featuring a lightweight structure, low operating torque, and excellent flow control characteristics, the valve provides accurate airflow regulation while ensuring reliable operation in industrial ventilation networks.

The valve is widely used in power plants, metallurgy, cement plants, chemical facilities, environmental protection systems, and HVAC applications. Its optimized butterfly disc design minimizes flow resistance and allows smooth airflow adjustment across a wide operating range.

OEM & Customization Capabilities

We offer comprehensive OEM and ODM manufacturing services to satisfy various industrial ventilation requirements:

Custom valve diameters and pressure ratings
Circular, rectangular, and custom-shaped valve designs
Carbon steel, stainless steel, alloy steel, and special material options
Electric, pneumatic, manual, and worm gear operation available
High-temperature and corrosion-resistant configurations
Customized flange standards (ANSI, DIN, EN, JIS, GB)
Special sealing materials for dust-laden and corrosive gases
Explosion-proof actuator options
Customized logos, nameplates, and packaging
Surface treatments including galvanizing, epoxy coating, and anti-corrosion painting

Certifications

Our Ventilation Regulating Butterfly Valves can be manufactured and tested according to international standards:

ISO 9001 Quality Management System
CE / PED Certification
ISO 5208 Pressure Testing Standard
API 609 Butterfly Valve Standard (where applicable)
ISO 14001 Environmental Management System
ISO 45001 Occupational Health & Safety Management System
ATEX Explosion-Proof Certification (Optional)
IECEx Certification (Optional)
SIL Functional Safety Certification (Optional)

Parameter Specifications

Parameter	Specification / Range
Valve Type	Ventilation Regulating Butterfly Valve
Structure Type	Centerline Butterfly Valve / Ventilation Damper Type
Body Material	Carbon Steel, Stainless Steel, Alloy Steel
Disc Material	Carbon Steel, Stainless Steel
Seal Material	Metal Seal, Graphite, Silicone, EPDM (Optional)
Size Range	DN100 – DN5000 (NPS 4" – 200")
Pressure Rating	PN0.1 – PN2.5
Connection Type	Flanged, Welded
Applicable Medium	Air, Flue Gas, Exhaust Gas, Dust-Laden Gas
Operating Temperature	-20°C to +450°C
High-Temperature Option	Up to +800°C
Operation Method	Manual Lever, Worm Gear, Electric, Pneumatic
Control Function	On-Off / Flow Regulation
Leakage Rate	Low Leakage Design / Customizable
Testing Standard	ISO 5208
Surface Treatment	Epoxy Coating, Galvanized, Heat-Resistant Paint

Industry Applications

Ventilation Regulating Butterfly Valves are widely used in air handling and gas regulation systems requiring precise airflow control and reliable shut-off.

Power Generation

Boiler air supply systems
Flue gas ducts
Desulfurization and denitrification systems
Air preheater systems

Metallurgical Industry

Blast furnace ventilation systems
Hot blast stove pipelines
Dust collection systems
Industrial exhaust networks

Cement Industry

Kiln exhaust systems
Clinker cooling air ducts
Dust filtration systems
Process ventilation pipelines

Chemical & Petrochemical Industry

Process gas ventilation systems
Exhaust gas treatment facilities
Corrosive gas handling systems
Industrial ventilation networks

Environmental Protection Projects

Waste gas treatment systems
Air pollution control equipment
Industrial emission control facilities
Scrubber and filtration systems

HVAC & Building Services

Commercial ventilation systems
Central air-conditioning systems
Smoke exhaust systems
Fresh air supply networks

Mining Industry

Mine ventilation systems
Dust extraction pipelines
Underground air circulation systems

Key Advantages

Excellent airflow regulation performance
Lightweight structure with low operating torque
Suitable for large-diameter ventilation ducts
Low pressure loss and high flow efficiency
Available for high-temperature gas applications
Corrosion-resistant and wear-resistant designs available
Compatible with automated control systems
Easy installation and maintenance
Cost-effective solution for air and gas regulation systems
Designed for long-term, reliable industrial operation under demanding conditions.

CUSTOMIZED SERVICE Customized Product

Material customization plan

Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.

Structural optimization design

For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.

Interface standard adaptation

Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
