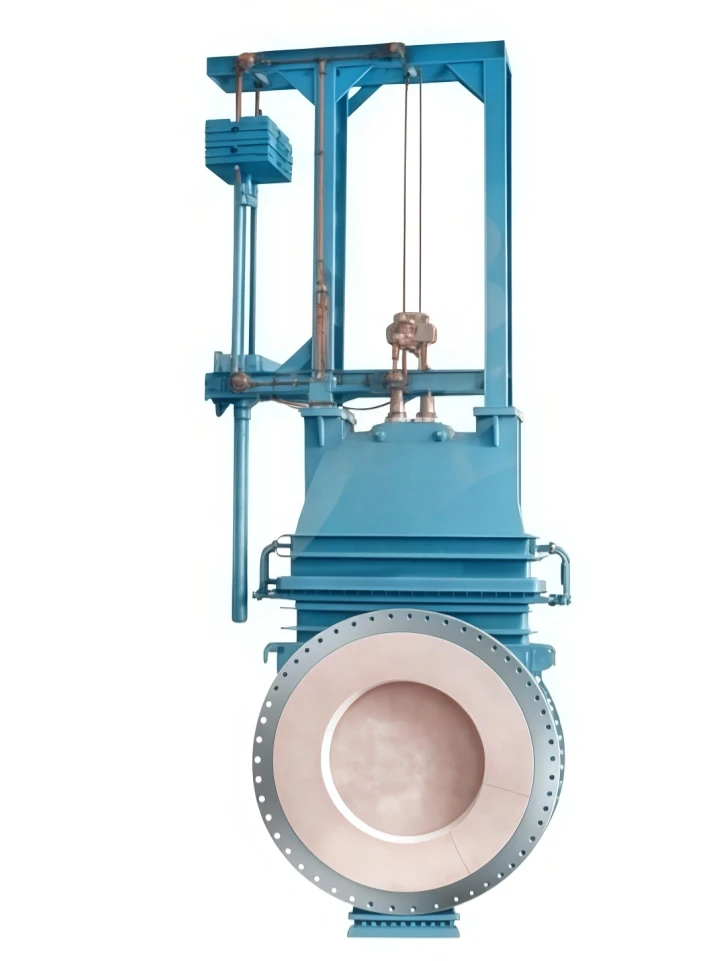

Water cooled hot air valve
The Water Cooled Hot Air Valve is a specially engineered industrial valve designed for controlling and isolating high-temperature hot air, combustion air, and industrial gas flow systems. It adopts an advanced water cooling structure to effectively reduce valve body temperature, protect sealing components, and ensure stable operation under extreme thermal conditions.
The valve features a heavy-duty structure, high-temperature-resistant materials, and reliable sealing technology, providing excellent thermal resistance, low operating torque, and long service life in harsh environments. The integrated water cooling system improves heat dissipation performance and extends the service life of the valve body, disc, shaft, and sealing components.
Designed for continuous operation in high-temperature applications, the Water Cooled Hot Air Valve is widely used in blast furnaces, steel plants, cement kilns, power plants, industrial furnaces, and high-temperature gas systems.
Various operating methods are available, including manual, pneumatic, electric, and hydraulic actuation, with customized solutions according to temperature, pressure, media characteristics, and automation requirements.
Water cooled hot air valve
We provide professional OEM and ODM customization services to meet different high-temperature industrial valve requirements.
Available materials include:
Our Water Cooled Hot Air Valves are manufactured under strict quality management systems and supplied with complete valve industry certification documents, including:
We provide reliable high-temperature valve solutions with professional manufacturing capability and global OEM service support.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Water Cooled Hot Air Valve |
| Valve Type | High Temperature Hot Air Control Valve |
| Operating Principle | Rotary or linear movement with water-cooled protection structure |
| Main Function | Hot air flow control, isolation, and high-temperature gas regulation |
| Nominal Size | DN100–DN4000 (Customized available) |
| Pressure Rating | PN0.05–PN2.5 MPa (Customized available) |
| Working Temperature | 300℃–1500℃ (Customized according to application) |
| Applicable Medium | Hot air, combustion air, furnace gas, high-temperature industrial gas |
| Valve Body Material | Heat-resistant Steel / Stainless Steel / Alloy Steel |
| Disc Material | High-temperature Alloy / Heat-resistant Steel |
| Shaft Material | Heat-resistant Alloy Steel |
| Cooling Method | Water-cooled jacket circulation system |
| Cooling Medium | Industrial cooling water |
| Sealing Type | Metal Seal / Graphite Seal / High-temperature Seal |
| Connection Type | Flanged / Welded / Customized |
| Operation Method | Manual / Pneumatic / Electric / Hydraulic |
| Control Mode | Local Control / Remote Control / PLC Integration |
| Flow Direction | Bidirectional or Unidirectional |
| Temperature Resistance | Ultra-high temperature resistant design |
| Thermal Protection | Water cooling and heat insulation structure |
| Corrosion Resistance | Suitable for harsh industrial gas environments |
| Leakage Standard | According to customer requirements |
| Design Standard | API / DIN / ANSI / GB Standards |
| Installation Position | Horizontal or vertical installation |
| Maintenance Requirement | Low maintenance design |
| Service Life | Extended service life under high-temperature operation |
| Inspection | Pressure test, sealing test, cooling performance test |
| OEM Service | Size, material, cooling structure, actuator, coating, logo customization |
Industry Applications
The Water Cooled Hot Air Valve is widely used in industries requiring reliable control of high-temperature air and gas systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
