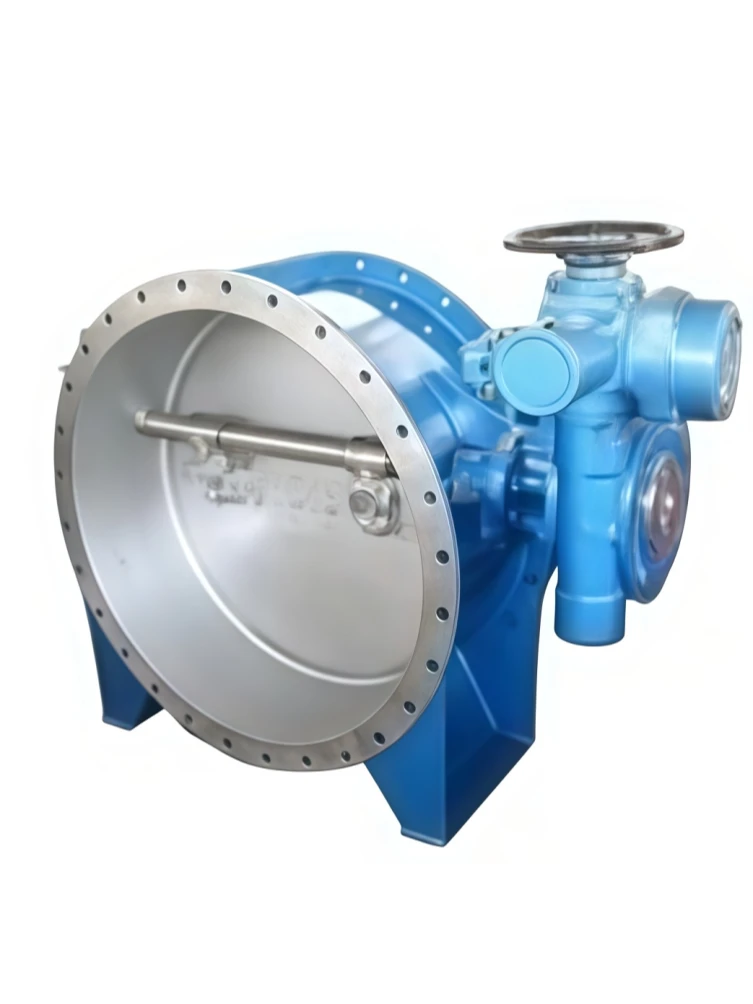

Water cooled ultra high temperature butterfly valve
The Water Cooled Ultra High Temperature Butterfly Valve is a specially engineered industrial valve designed for controlling and isolating extremely high-temperature gas, air, and process media in demanding industrial environments. It features an advanced water-cooling jacket structure that effectively reduces valve body and sealing component temperatures, ensuring stable operation and extended service life under extreme thermal conditions.
The valve adopts a heavy-duty butterfly design with high-temperature-resistant materials, precision sealing technology, and a robust cooling system. It provides excellent thermal resistance, reliable sealing performance, low operating torque, and long-term durability in applications involving high-temperature exhaust gas, combustion systems, and industrial furnaces.
With flexible actuator options, including manual, pneumatic, electric, and hydraulic operation, the valve can be integrated into automated process control systems. Customized solutions are available according to temperature requirements, pressure conditions, media characteristics, and installation environments.
Water cooled ultra high temperature butterfly valve
We provide comprehensive OEM and ODM customization services to meet the requirements of high-temperature industrial applications.
Available materials include:
Our Water Cooled Ultra High Temperature Butterfly Valves are manufactured under strict quality management systems and supplied with complete valve industry certification documents, including:
We provide reliable high-temperature valve solutions with professional manufacturing capability and global OEM support.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Water Cooled Ultra High Temperature Butterfly Valve |
| Valve Type | High Temperature Butterfly Valve with Water Cooling System |
| Operating Principle | Rotary disc control with water-cooled protection structure |
| Main Function | High-temperature gas flow control and pipeline isolation |
| Nominal Size | DN100–DN4000 (Customized available) |
| Pressure Rating | PN0.1–PN2.5 MPa (Customized available) |
| Working Temperature | 500℃–1500℃ (Customized according to application) |
| Applicable Medium | High-temperature gas, flue gas, hot air, combustion gas, industrial exhaust gas |
| Valve Body Material | Heat-resistant Steel / Stainless Steel / Alloy Steel |
| Disc Material | High-temperature Alloy / Stainless Steel / Special Heat-resistant Materials |
| Shaft Material | Heat-resistant Alloy Steel |
| Cooling Method | Water-cooled jacket circulation system |
| Cooling Medium | Industrial cooling water |
| Sealing Type | Metal Seal / Graphite Seal / High Temperature Seal |
| Connection Type | Flanged / Welded / Customized |
| Operation Method | Manual / Pneumatic / Electric / Hydraulic |
| Control Mode | Local Control / Remote Control / PLC Integration |
| Flow Direction | Bidirectional or Unidirectional |
| Design Standard | API / DIN / ANSI / GB Standards |
| Leakage Standard | According to customer requirements |
| Temperature Resistance | Ultra-high temperature resistant design |
| Cooling System | Integrated water circulation cooling structure |
| Corrosion Resistance | Suitable for harsh industrial environments |
| Maintenance Requirement | Low maintenance design |
| Service Life | Extended service life under extreme temperature conditions |
| Inspection | Pressure test, sealing test, cooling system test, functional test |
| OEM Service | Size, material, cooling structure, actuator, coating, logo customization |
Industry Applications
The Water Cooled Ultra High Temperature Butterfly Valve is widely used in industries requiring reliable flow control under extreme temperature conditions.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
