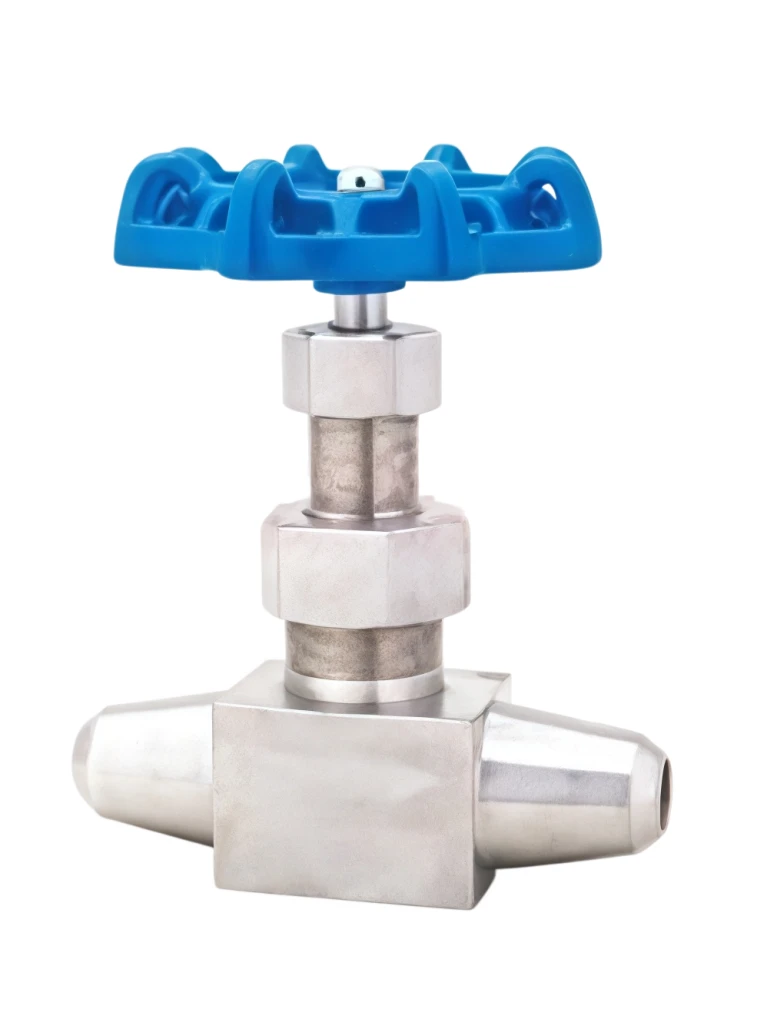

High temperature and high pressure globe valve valve
The High Temperature and High Pressure Globe Valve is a specially designed industrial valve engineered for reliable shut-off and flow regulation under extreme operating conditions. It features a robust valve body structure, high-strength materials, and advanced sealing technology, ensuring excellent performance in high-temperature and high-pressure environments.
High temperature and high pressure globe valve
The valve adopts a globe valve design with optimized flow channels, providing precise control, low leakage, stable operation, and long service life. It is widely used in critical systems where safety, durability, and operational reliability are essential, especially in steam, power generation, petrochemical, and industrial process applications.
We provide professional OEM and customization services, including valve size customization, pressure and temperature rating adjustments, material selection, flange standard customization (ANSI, DIN, JIS, GB, etc.), trim design, sealing solutions, actuator configuration, surface treatment, logo marking, packaging solutions, and special structure development according to customer requirements.
Our products are manufactured under strict quality control systems and comply with international valve manufacturing standards. We provide complete valve industry certifications and inspection documents, including material certificates, pressure test reports, dimensional inspection reports, and quality assurance documentation to ensure reliable performance for global customers.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | High Temperature and High Pressure Globe Valve |
| Valve Type | Globe Valve |
| Application | High Temperature & High Pressure Shut-off and Regulation |
| Nominal Size | DN15–DN600 (Customized Available) |
| Pressure Rating | PN16–PN420 / Class 150–2500 |
| Valve Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Chrome Moly Steel, Customized |
| Trim Material | Stainless Steel, Alloy Steel, Stellite Alloy, Customized |
| Connection Type | Flanged, Butt Welded, Socket Welded, Customized |
| Flange Standard | ANSI B16.5, ASME B16.47, DIN, JIS, GB |
| Applicable Medium | Steam, Oil, Gas, Water, Chemical Fluids, High Temperature Media |
| Working Temperature | -196℃ to +650℃ (According to Material Selection) |
| Operation Method | Handwheel, Gear Operator, Pneumatic Actuator, Electric Actuator |
| Structure Type | Straight Pattern / Angle Pattern / Y-Type Globe Valve |
| Sealing Type | Metal Seal / Pressure Seal / Hard Seal |
| Flow Control | Precise Throttling and Shut-off Control |
| Leakage Standard | ANSI B16.104 / ISO 5208 |
| Pressure Test Standard | API 598 / EN 12266 |
| Design Standard | ASME B16.34 / API 623 / GB Standards |
| Surface Treatment | Anti-corrosion Coating, Heat Treatment, Customized Treatment |
| OEM Capability | Custom Design, Drawing Development, Material Selection, Logo & Packaging Service |
| Certification | ISO9001, CE, PED, API, Material Certificate, Pressure Test Report |
Industry Applications
The High Temperature and High Pressure Globe Valve is widely used in industries requiring safe operation, precise control, and long-term reliability under severe working conditions.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
