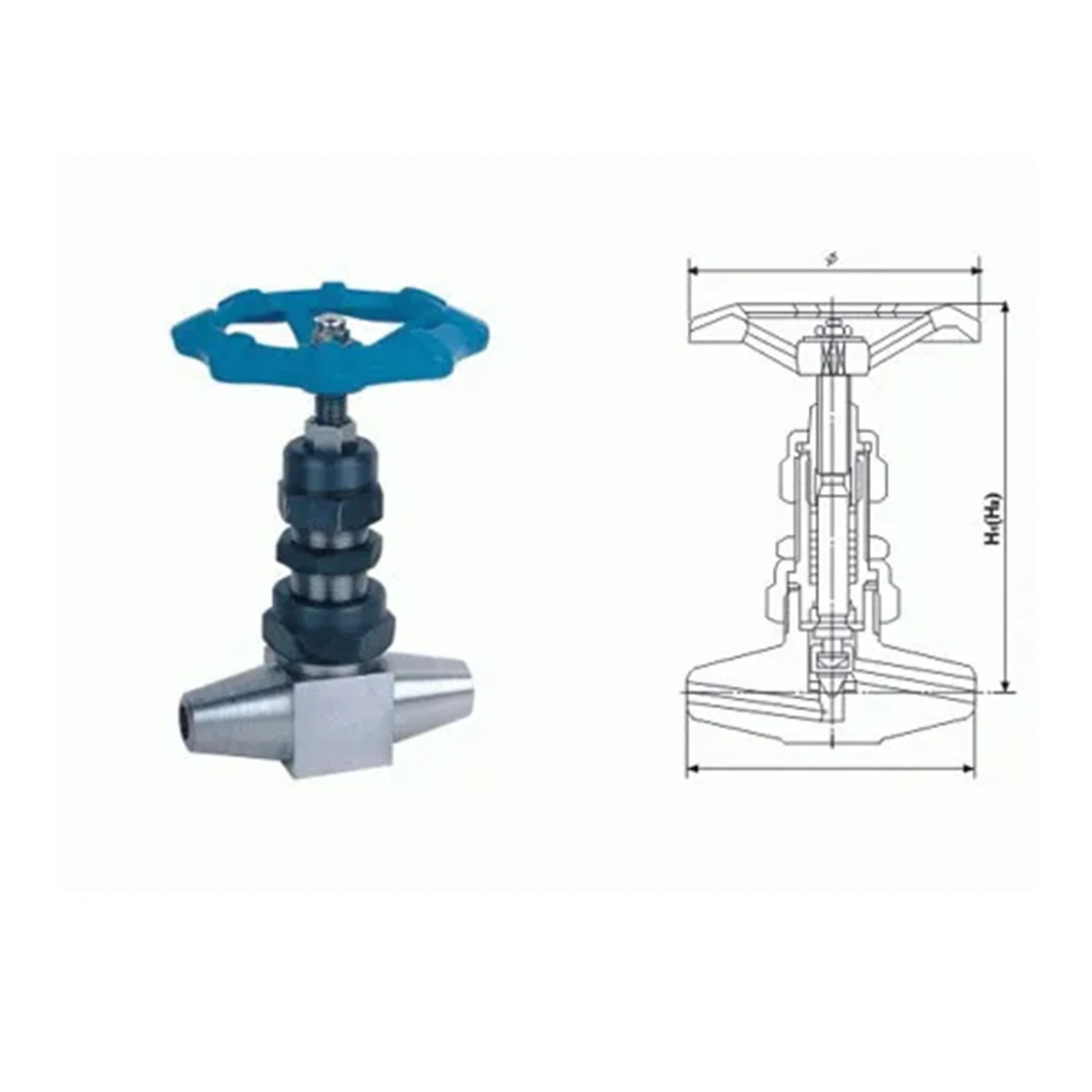

High Temperature and High Pressure Globe Valve
Nominal Diameter: DN 6 ~ 15 mm
Nominal Pressure: PN 16 ~ 32 MPa
Main Materials: Carbon steel, stainless steel, etc.
Applicable Temperature: ≤ 650°C

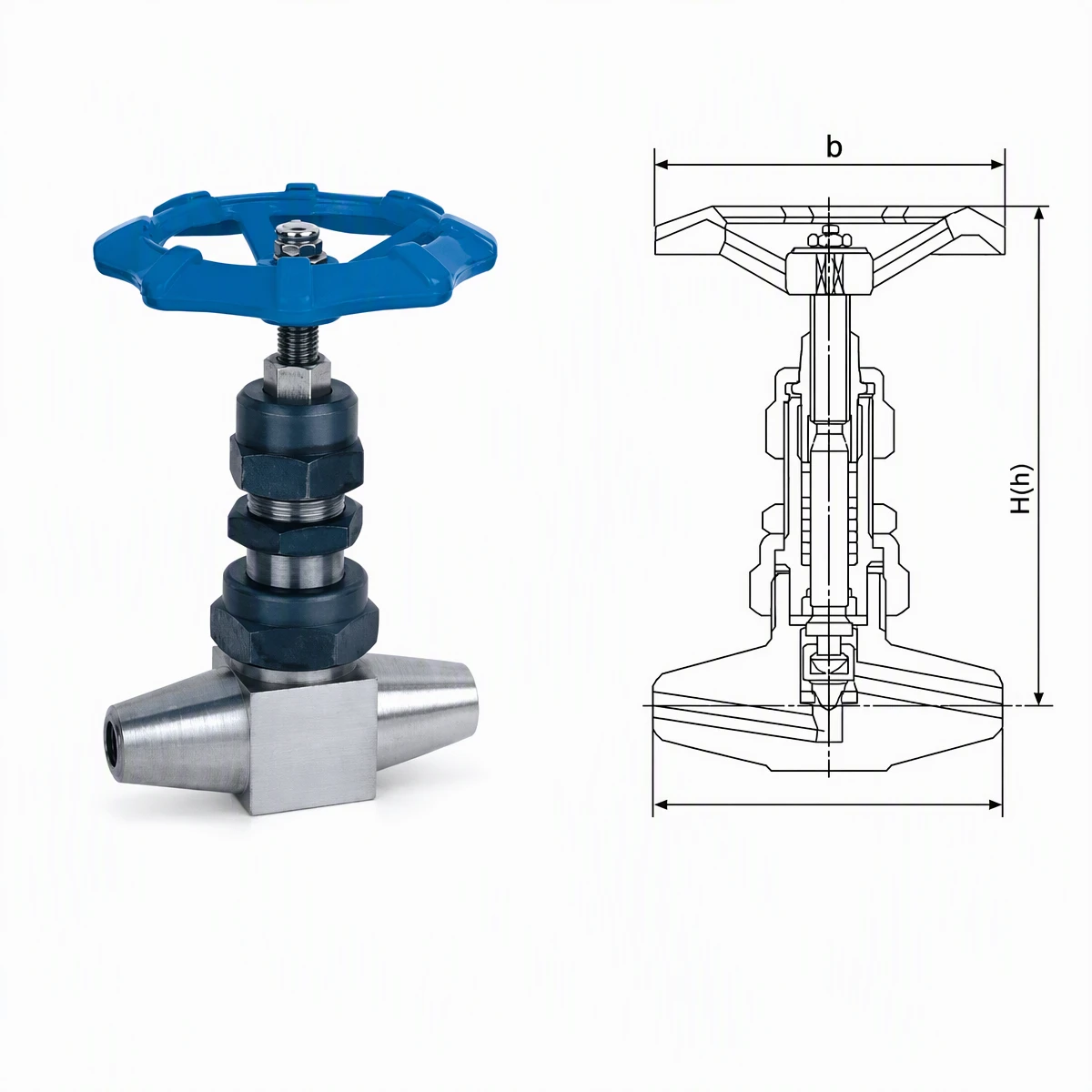

High Temperature and High Pressure Globe Valve
The High Temperature and High Pressure Globe Valve is specifically designed for severe service conditions involving elevated temperatures, high pressures, and demanding process environments. Featuring a robust globe valve structure, precision-machined sealing surfaces, and pressure-sealed bonnet design, the valve provides excellent shut-off performance, reliable flow regulation, and long-term operational safety.
Manufactured from premium alloy steels and heat-resistant materials, these valves are widely used in power plants, petrochemical facilities, oil & gas processing, steam systems, and other critical industrial applications where high-pressure and high-temperature media must be controlled safely and efficiently.
As a professional industrial valve manufacturer, we offer comprehensive OEM and ODM solutions to meet global customer requirements.
Our manufacturing facilities and products comply with international quality and industry standards.
Parameter Specifications
| Item | Specification |
|---|---|
| Product Name | High Temperature and High Pressure Globe Valve |
| Valve Type | Globe Valve |
| Nominal Size | DN15–DN1000 (½"–40") |
| Pressure Rating | PN16–PN760 / ANSI Class 150–4500 |
| Body Material | WCB, WC6, WC9, F11, F22, F91, SS304, SS316 |
| Trim Material | 13Cr, SS304, SS316, Stellite Overlay |
| Bonnet Type | Bolted Bonnet / Pressure Seal Bonnet |
| Seat Type | Renewable Seat Ring / Integral Seat |
| Connection Type | Flanged, Butt Weld, Socket Weld |
| Flange Standard | ANSI, ASME, DIN, EN, JIS, GB |
| Operating Temperature | -29°C to +700°C |
| Maximum Working Pressure | Up to 76 MPa |
| Leakage Standard | API 598 / ISO 5208 |
| Stem Design | Rising Stem |
| Operation Type | Handwheel, Gear, Electric, Pneumatic |
| Packing Material | Flexible Graphite, Expanded Graphite |
| Design Standard | API 600, API 623, ASME B16.34 |
| Face-to-Face Standard | ASME B16.10 |
| End Connection Standard | ASME B16.25, ASME B16.5 |
| Inspection & Testing | API 598, EN 12266 |
| Fire Safe Design | API 607 / API 6FA (Optional) |
| Applicable Media | Steam, Water, Oil, Gas, Thermal Oil |
Industry Applications
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
