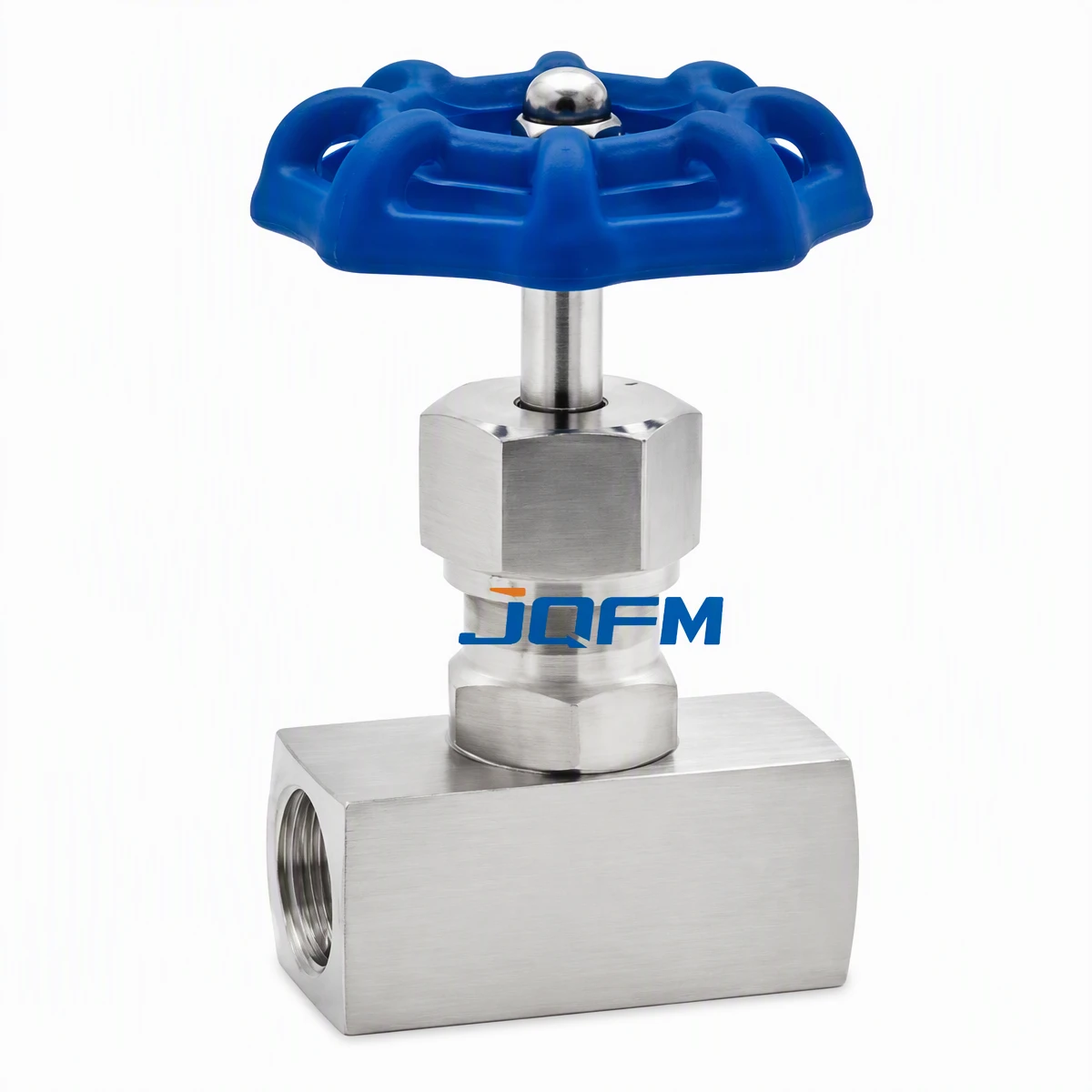

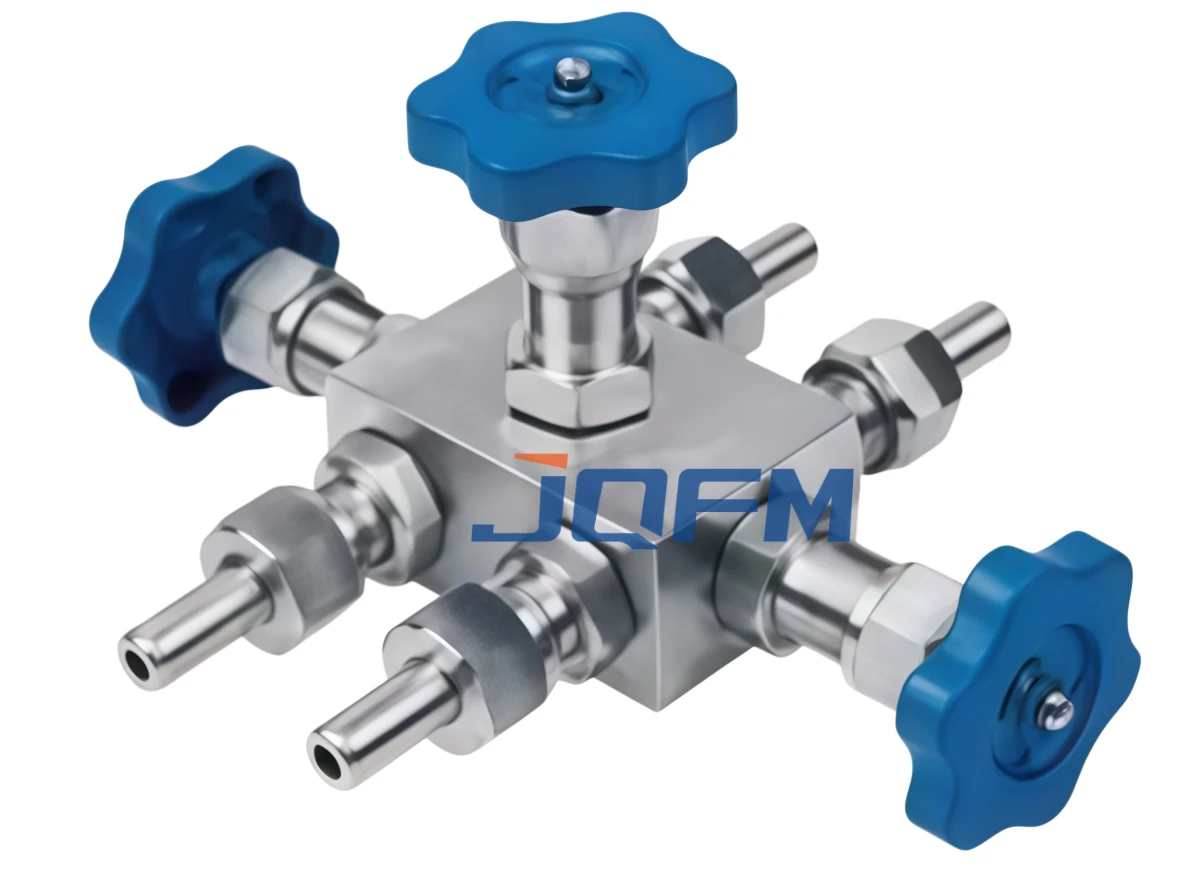

A needle valve is a type of flow control valve that allows for precise regulation of fluid flow. The design of the valve includes a long, tapered needle-like stem that fits into a matching seat, allowing for very fine adjustments in the flow rate of liquids or gases.

Unlike other types of valves that are generally designed for quick on/off operation, the needle valve is specifically intended for applications where detailed flow control is required. It’s ideal for low-flow applications and situations where accurate throttling is essential.

How Does a Needle Valve Work?

The operation of a needle valve is relatively simple, but it provides a high degree of control over the flow rate. Here's a basic explanation of its working mechanism:

1. Valve Body: The main structure of the needle valve that houses the internal components, including the stem and seat. It typically has two ports: one for the fluid inlet and one for the fluid outlet.

2. Needle-Shaped Stem: The key feature of the needle valve is the long, tapered needle-shaped stem. This stem can be adjusted manually using a handwheel or actuator to control the position of the needle inside the valve body.

3. Valve Seat: At the other end of the needle, there is a seating area (a seat or orifice) that the needle seals against when the valve is closed. As the needle is raised (by turning the handwheel), it moves away from the seat, allowing fluid to flow through the valve. The more the needle is raised, the larger the opening and the greater the flow.

4. Flow Adjustment: The needle valve provides extremely fine control over the flow rate by adjusting the distance between the needle and the seat. This allows the valve to be used in systems where a precise flow rate is necessary, often with very low flow requirements.

5. Fine Threaded Stem:  The stem is typically designed with a fine thread to allow for very small and accurate changes in position. This is what enables the fine control of flow in needle valves, unlike other valves that are designed for more rapid opening or closing.

6. Sealing:  When the valve is closed, the needle sits against the seat, effectively sealing the flow passage and preventing any fluid from passing through. When the valve is opened, the needle’s position can be adjusted to regulate the flow of fluid through the valve.
