Two valve manifold

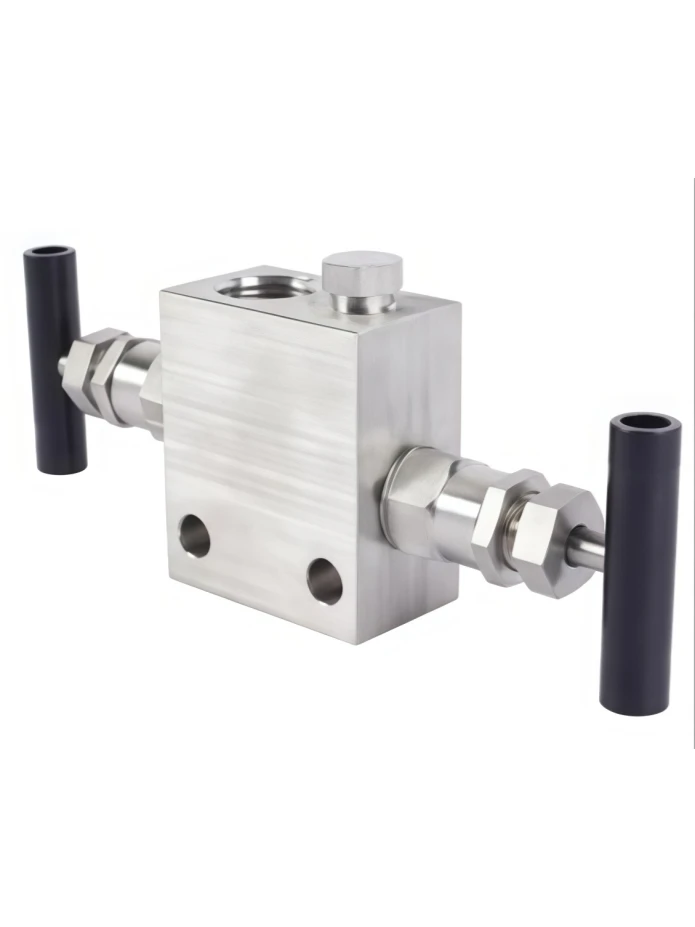

The Two Valve Manifold is a compact and reliable instrumentation valve assembly designed for pressure measurement, isolation, and calibration applications. It integrates two valves into a single body, typically including a shut-off valve and a vent or drain valve, providing safe instrument isolation and convenient maintenance operations.
Two valve manifold
With a compact structure, excellent sealing performance, and high-pressure resistance, the two valve manifold reduces installation space, minimizes potential leakage points, and improves system reliability. It is widely used in pressure transmitters, gauges, and process instrumentation systems requiring accurate pressure control and easy operation.
We provide professional OEM and customization services, including customized valve configurations, port arrangements, connection standards, pressure ratings, body and trim material selection, thread specifications, mounting designs, surface treatments, logo marking, packaging solutions, and special engineering modifications according to customer requirements.
Our products are manufactured under strict quality management systems and comply with international valve industry standards. We provide complete valve industry certifications and inspection documents, including material certificates, pressure test reports, dimensional inspection reports, and quality assurance documentation to ensure reliable performance for global customers.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Two Valve Manifold |
| Valve Type | Instrumentation Manifold Valve |
| Function | Isolation, Venting, Pressure Measurement, Calibration |
| Valve Configuration | 2 Valves (Block Valve + Bleed Valve) |
| Nominal Size | 1/2"–2" (DN15–DN50) |
| Pressure Rating | PN16–PN420 / Class 150–2500 |
| Valve Body Material | Stainless Steel 304, Stainless Steel 316, Carbon Steel, Alloy Steel, Customized |
| Trim Material | Stainless Steel, Alloy Materials, Customized |
| Connection Type | Threaded, Flanged, Socket Welded, Customized |
| Thread Standard | NPT, BSP, BSPT, Metric Thread, Customized |
| Flange Standard | ANSI, DIN, JIS, GB Standards |
| Applicable Medium | Gas, Liquid, Steam, Oil, Chemical Fluids |
| Working Temperature | -196℃ to +550℃ (According to Material Selection) |
| Operation Type | Manual Handle / Handwheel Operation |
| Sealing Type | Soft Seal / Metal Seal |
| Pressure Control | Instrument Isolation and Pressure Relief |
| Leakage Standard | ANSI B16.104 / ISO 5208 |
| Pressure Test Standard | API 598 / EN 12266 |
| Surface Treatment | Polishing, Anti-corrosion Coating, Customized Treatment |
| OEM Capability | Custom Design, Drawing Development, Material Selection, Logo & Packaging Service |
| Certification | ISO9001, CE, PED, API, Material Certificate, Pressure Test Report |
Industry Applications
The Two Valve Manifold is widely used in industrial instrumentation systems requiring reliable pressure measurement, isolation, and maintenance functions.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
