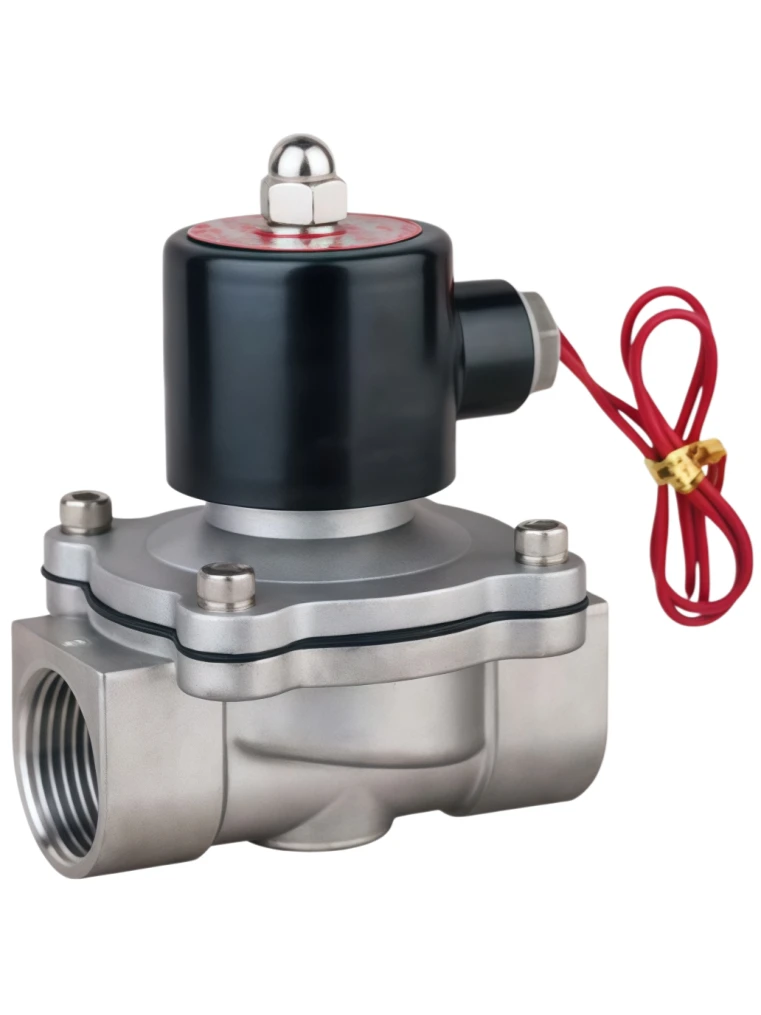

2W water (hot water) gas normally closed solenoid valve valve
The 2W Water (Hot Water) Gas Normally Closed Solenoid Valve is an automatic control valve designed for reliable on/off control of water, hot water, air, and other compatible fluids. It adopts a normally closed structure, meaning the valve remains closed when the coil is de-energized and opens quickly when electrical power is supplied.
2W water (hot water) gas normally closed solenoid valve
This solenoid valve features a compact design, fast response, stable operation, excellent sealing performance, and long service life. It is widely used in water treatment systems, heating equipment, industrial automation pipelines, and fluid control applications requiring precise and safe flow regulation.
We provide comprehensive OEM manufacturing services, including customized valve body materials, connection types, voltage specifications, sealing materials, pressure ratings, and appearance designs according to customer requirements. Our production capabilities support customized solutions for different working conditions and equipment integration needs.
The valve is manufactured under strict quality control systems and is equipped with complete valve industry certifications and compliance standards, ensuring reliable performance, safety, and durability for global industrial applications.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | 2W Water (Hot Water) Gas Normally Closed Solenoid Valve |
| Valve Type | Normally Closed Solenoid Valve |
| Operation Mode | Electromagnetic Control |
| Medium | Water, Hot Water, Air, Non-corrosive Fluids |
| Valve Size | DN10 - DN50 (Customized Available) |
| Port Connection | Threaded / Flanged / Customized |
| Pressure Range | 0.05 - 1.6 MPa (Customized Available) |
| Temperature Range | -10℃ to +120℃ (According to Material Selection) |
| Coil Voltage | DC12V, DC24V, AC110V, AC220V (Customized Available) |
| Valve Body Material | Brass / Stainless Steel / Aluminum Alloy |
| Seal Material | NBR / EPDM / FKM (Customized Available) |
| Structure Type | Direct Acting / Pilot Operated |
| Response Time | Fast Opening and Closing Response |
| Protection Class | IP65 or Higher (Customized Available) |
| Installation Method | Horizontal Installation Recommended |
| Flow Direction | One-way Flow |
| Leakage Standard | High Sealing Performance, Low Leakage Design |
| Service Life | Long Cycle Operation Design |
| OEM Capability | Custom Materials, Dimensions, Voltage, Pressure Rating, Branding, Packaging |
| Certifications | CE, ISO9001, RoHS, and Other Industry Certifications Available |
Industry Applications
The 2W Water (Hot Water) Gas Normally Closed Solenoid Valve is widely used in various industries, including:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
