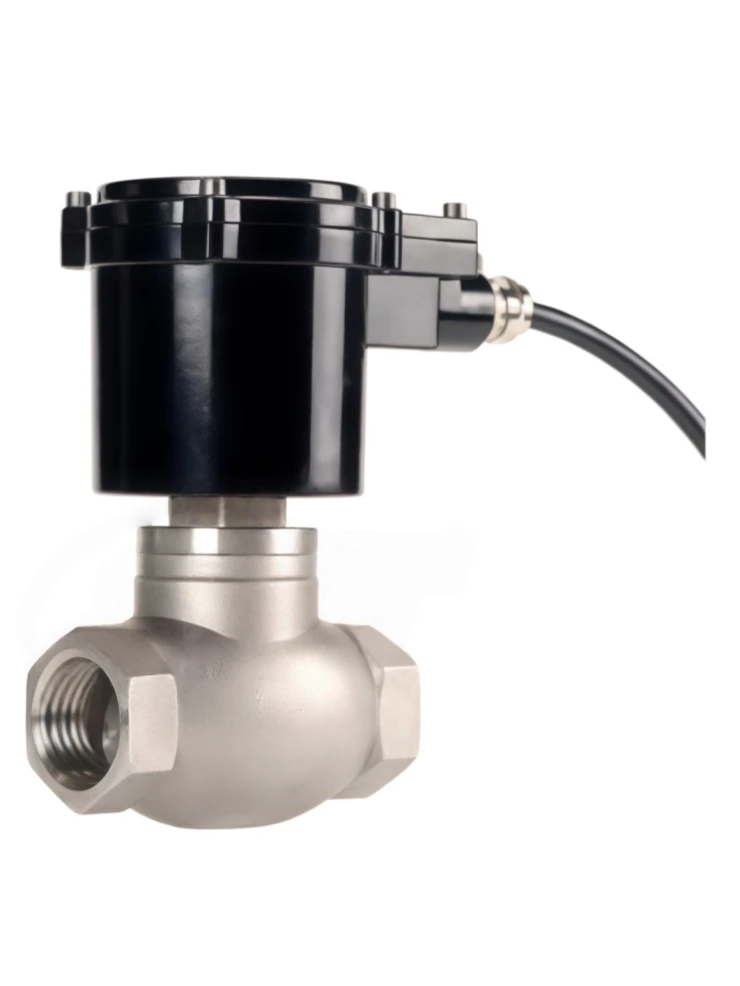

ZQDF stainless steel series solenoid valve
The ZQDF Stainless Steel Series Solenoid Valve is a high-performance automatic control valve designed for controlling the on/off flow of water, gas, oil, steam, and other compatible media. It adopts a stainless steel valve body structure, providing excellent corrosion resistance, high strength, and reliable performance under demanding industrial conditions.
ZQDF stainless steel series solenoid valve
The valve features fast response, stable operation, excellent sealing performance, compact structure, and long service life. It is suitable for applications requiring frequent switching, precise flow control, and safe automatic operation. The stainless steel construction makes it especially suitable for corrosive environments, high cleanliness requirements, and industrial automation systems.
We provide comprehensive OEM manufacturing services, including customized valve body materials, connection standards, coil voltage, pressure ratings, sealing materials, flow capacity, installation dimensions, logo marking, and packaging solutions. Our engineering team can develop customized solenoid valve solutions according to customer equipment requirements and special working conditions.
The ZQDF Stainless Steel Series Solenoid Valve is manufactured under strict quality management systems with complete valve industry certifications, ensuring reliable quality, safety compliance, and long-term stable operation for global customers.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | ZQDF Stainless Steel Series Solenoid Valve |
| Valve Type | Stainless Steel Solenoid Valve |
| Operation Mode | Electromagnetic Automatic Control |
| Structure Type | Direct Acting / Pilot Operated |
| Medium | Water, Gas, Oil, Steam, Air, Other Compatible Fluids |
| Valve Size | DN10 - DN100 (Customized Available) |
| Port Connection | Threaded / Flanged / Customized |
| Valve Body Material | Stainless Steel 304 / Stainless Steel 316 |
| Pressure Range | 0 - 1.6 MPa (Customized Available) |
| Temperature Range | -10℃ to +180℃ (Depending on Seal Material) |
| Coil Voltage | DC12V, DC24V, AC110V, AC220V (Customized Available) |
| Coil Power | Standard / Low Power Options Available |
| Seal Material | NBR / EPDM / PTFE / FKM |
| Response Time | Fast Opening and Closing Response |
| Protection Class | IP65, IP67 (Customized Available) |
| Flow Direction | One-way Flow |
| Installation Position | Horizontal Installation Recommended |
| Leakage Standard | High Sealing Performance, Low Leakage Design |
| Applicable Medium Viscosity | ≤20 cSt (Customized Available) |
| Service Life | Long Cycle Operation Design |
| OEM Capability | Custom Size, Material, Voltage, Connection, Branding, Packaging |
| Certifications | CE, ISO9001, RoHS and Other Industry Certifications Available |
Industry Applications
The ZQDF Stainless Steel Series Solenoid Valve is widely used in various industries and automation systems, including:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
