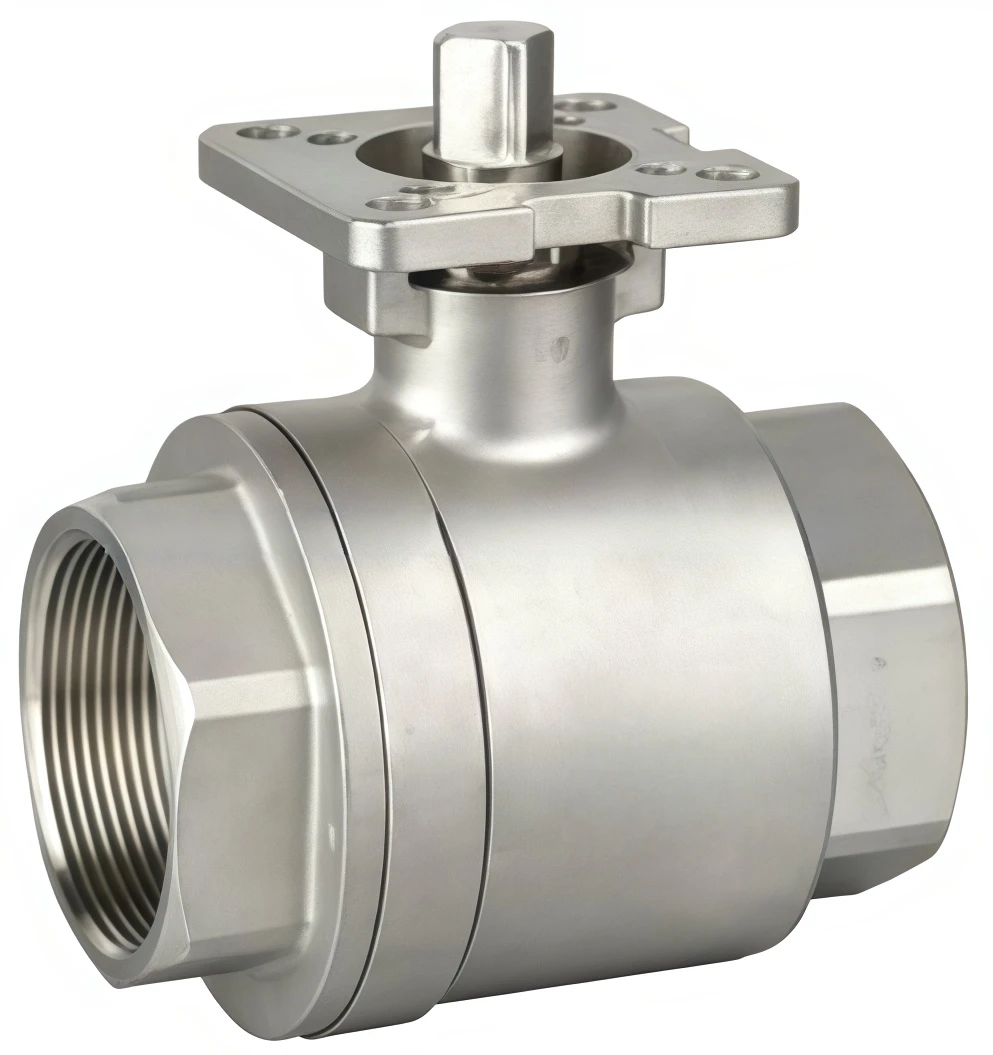

2PC high platform internal thread ball valve
The 2PC High Platform Internal Thread Ball Valve is a high-performance two-piece ball valve designed for reliable shut-off, efficient flow control, and easy actuator installation. Featuring a high platform mounting design and internal threaded connection, the valve is compatible with ISO standard actuators and can be easily upgraded to pneumatic or electric automatic control systems.
2PC high platform internal thread ball valve
With a two-piece body structure, precision-machined ball, and advanced sealing technology, this valve provides excellent sealing performance, low operating torque, corrosion resistance, and long service life. The high platform design improves installation flexibility and makes it suitable for automated industrial pipeline applications.
We provide professional OEM manufacturing and customization services, including customized valve sizes, body materials, thread standards, pressure ratings, sealing materials, platform dimensions, actuator configurations, control accessories, surface treatments, logo marking, and packaging solutions. Our production process follows strict quality management systems, supported by complete valve industry certifications, testing procedures, and inspection capabilities to ensure compliance with international standards and customer project requirements.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | 2PC High Platform Internal Thread Ball Valve |
| Valve Type | Two-Piece High Platform Threaded Ball Valve |
| Body Structure | Two-Piece Split Body Design |
| Mounting Design | High Platform ISO Actuator Mounting Pad |
| Connection Type | Internal Thread Connection |
| Thread Standard | NPT / BSP / BSPT / G Thread |
| Body Material | Stainless Steel 304/316, Carbon Steel, Brass, Alloy Materials |
| Ball Material | Stainless Steel / Customized Materials |
| Stem Material | Stainless Steel / Customized Materials |
| Nominal Size | DN8-DN100 / 1/4"-4" |
| Pressure Rating | PN1.6-PN6.4 MPa / Class 150-Class 600 |
| Working Temperature | -20°C to 180°C (Customized according to materials) |
| Applicable Medium | Water, Oil, Gas, Air, Steam, Chemical Fluids |
| Operation Method | Manual Handle / Pneumatic Actuator / Electric Actuator |
| Actuator Compatibility | ISO5211 Direct Mounting Available |
| Sealing Material | PTFE, RPTFE, PEEK, Graphite, Metal Seal |
| Port Type | Full Port / Reduced Port |
| Flow Direction | Bidirectional Flow |
| Valve Structure | Floating Ball Structure |
| Stem Design | Anti-Blowout Stem Design |
| Platform Feature | High Mounting Platform for Automation Upgrade |
| Design Standard | ANSI, API, DIN, GB, JIS Standards Available |
| Testing Standard | API 598 / EN 12266 Pressure Testing |
| OEM Capability | Customized Design, Materials, Dimensions, Actuator Mounting, Branding and Packaging |
| Certification | ISO, CE, API, PED and Other Valve Industry Certifications Available |
Industry Applications
The 2PC High Platform Internal Thread Ball Valve is widely used in industries requiring reliable shut-off, automation compatibility, and compact threaded connections, including:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
