2PC Wire Open Ball Valve Stainless Steel Threaded Full Port Ball Valve Industrial Valve

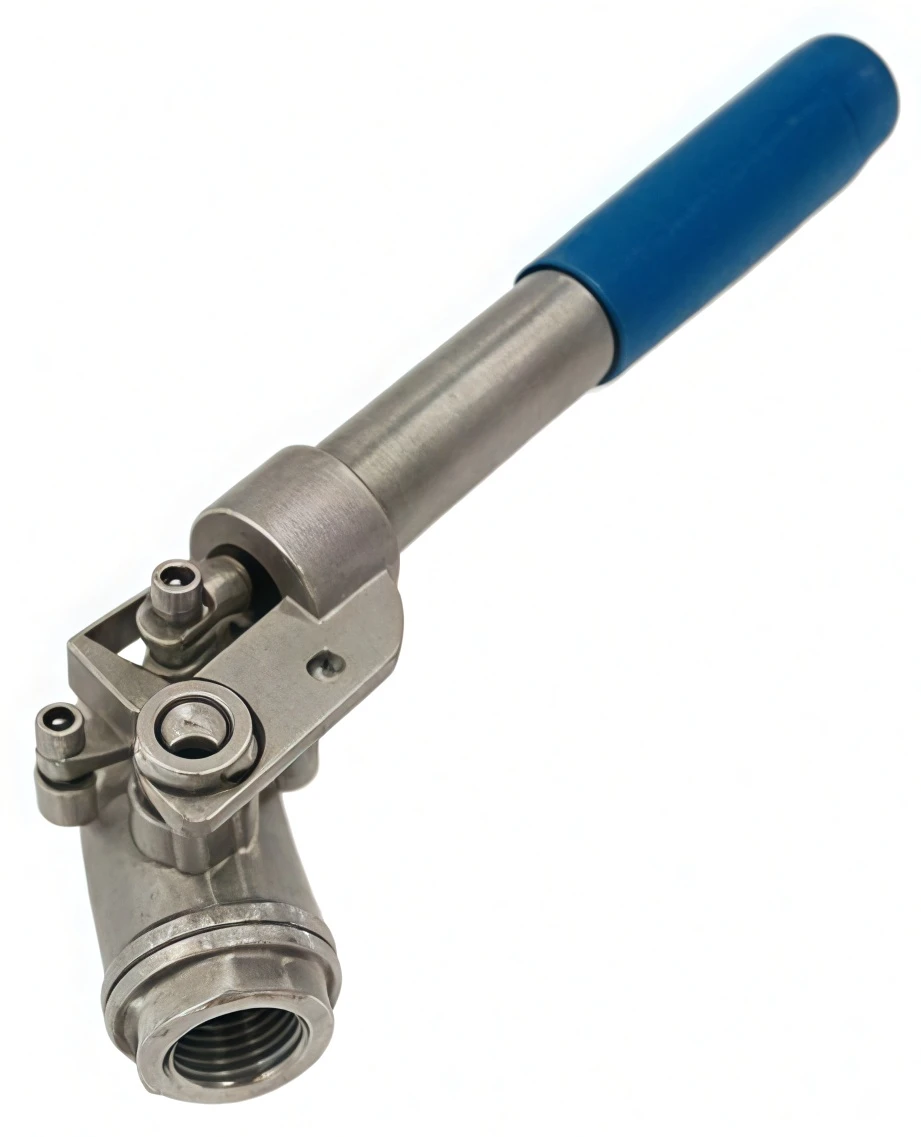

The 2PC Wire Opening Ball Valve is a two-piece ball valve designed with a wire-operated opening structure, providing convenient remote operation and reliable flow control in various piping systems. With a compact two-piece body design, low operating torque, excellent sealing performance, and durable construction, this valve ensures stable operation and long service life.

Inquire Now 2PC Wire Open Ball Valve Stainless Steel Threaded Full Port Ball Valve Industrial Valve

Next Products 2PC Wire Open Ball Valve Stainless Steel Threaded Full Port Ball Valve Industrial Valve

2PC Wire opening ball valve Parameter Specifications Industry Applications

2PC Wire opening ball valve

The wire opening mechanism allows flexible installation in limited spaces or special operating environments where direct handle operation is inconvenient. Manufactured from high-quality materials such as stainless steel, brass, or customized alloys, the valve offers excellent corrosion resistance and mechanical strength.

OEM Capability & Customization

We provide professional OEM and ODM customization services to meet different application requirements, including:

Customized valve size, structure, connection type, and installation dimensions.
Customized materials including SS304, SS316, brass, carbon steel, and special alloys.
Customized wire opening device length, operation method, and accessories.
Customized sealing materials according to different working media and temperature conditions.
Customized logo marking, laser engraving, packaging, and surface finishing.
Customized pressure rating, testing standards, and special design solutions.

Our production process is strictly controlled according to international quality management systems. We provide complete valve industry certifications and quality inspection capabilities, including material inspection, pressure testing, leakage testing, dimensional inspection, and performance verification to ensure reliable product quality and global market compliance.

Parameter Specifications

Parameter	Specification
Product Name	2PC Wire Opening Ball Valve
Valve Type	Two-Piece Ball Valve with Wire Operation
Body Structure	Two-Piece Design
Body Material	Stainless Steel SS304 / SS316 / Brass / Customized
Ball Material	Stainless Steel / Brass / Customized
Stem Material	Stainless Steel
Connection Type	Threaded / Flanged / Customized
Thread Standard	BSP / NPT / G Thread / Customized
Size Range	DN8–DN100 (1/4"–4")
Pressure Rating	PN10–PN40 / Class 150–300 (Customized)
Working Temperature	-20°C to 180°C (Depending on Material and Seal)
Applicable Media	Water, Oil, Gas, Air, Steam, Chemical Fluids
Sealing Material	PTFE / RPTFE / NBR / EPDM / Viton
Operation Method	Wire Opening Control
Valve Type	Full Port / Reduced Port Optional
Flow Direction	Bidirectional
Leakage Standard	Bubble Tight Shut-Off
Surface Treatment	Polishing / Sand Blasting / Customized
Inspection Standard	Pressure Test, Leakage Test, Material Inspection
OEM Service	Size, Material, Logo, Packaging and Design Customization Available

Industry Applications

The 2PC Wire Opening Ball Valve is widely used in industries and systems requiring flexible valve operation, including:

Industrial Pipeline Systems – Provides reliable shut-off and flow control.
Automation Equipment – Suitable for remote or flexible valve operation.
HVAC Systems – Used for water circulation and pipeline isolation.
Water Treatment Facilities – Controls fluid flow in compact piping systems.
Agricultural Irrigation Systems – Provides convenient operation in hard-to-access locations.
Chemical Processing Industry – Suitable for controlled transfer of various fluids.
Oil & Gas Applications – Used for pipeline shut-off and flow management.
Pneumatic and Hydraulic Systems – Provides reliable fluid isolation.
Marine Equipment – Suitable for applications requiring corrosion resistance and remote operation.
Machinery and Equipment Manufacturing – Used in auxiliary piping and control systems.

CUSTOMIZED SERVICE Customized Product

Material customization plan

Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.

Structural optimization design

For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.

Interface standard adaptation

Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
