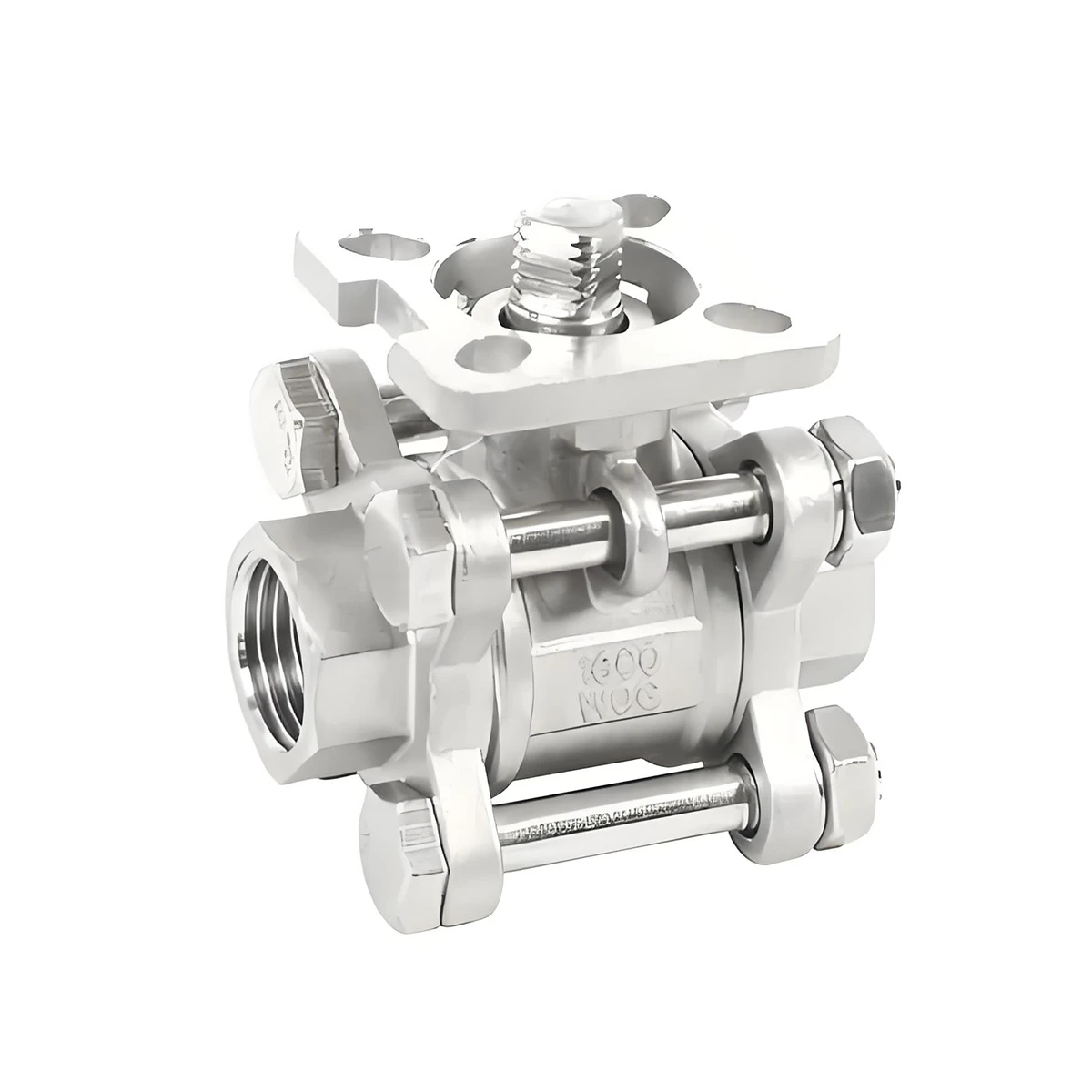

3PC Internal Thread High Platform Ball Valve

Product Overview

The 3PC Internal Thread High Platform Ball Valve is a three-piece ball valve designed for compact piping systems where internal thread connections are required. The high platform design allows for easy actuation with gear operators, pneumatic or electric actuators, and facilitates maintenance without removing the valve from the pipeline.

This valve provides reliable on/off and throttling control, excellent sealing performance, and high pressure and temperature handling capability. Its three-piece body construction enables quick disassembly, maintenance, and inspection, making it ideal for high-pressure, high-temperature, and corrosive media applications.

Key Features

Three-piece body for easy maintenance and assembly
Internal thread (female) connection for compact pipeline installation
High platform design for actuator compatibility
Bi-directional tight shut-off
Full bore or reduced bore design
Blow-out proof stem and anti-static feature
Fire-safe design available
Corrosion-resistant and long-life materials
Suitable for liquids, gases, steam, and corrosive media

OEM & Customization Capabilities

OEM Service Scope

Private label manufacturing and branding
Custom nameplates and packaging
Project-specific engineering and valve design
Special inspection and testing procedures
Technical support and system integration services

Customization Capabilities

Valve sizes from DN10 to DN300 (½"–12")
Pressure ratings up to ANSI Class 1500 / PN420
Full bore, reduced bore, or V-port design
Body materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel, Titanium
Seat materials: PTFE, RTFE, PEEK, Metal Seats
Fire-safe and anti-static designs available
Handle, gear, pneumatic, or electric actuation
Thread standards: NPT, BSPT, BSPP, ISO7/1
Special coatings and corrosion-resistant treatments
High-temperature and cryogenic versions

Available Materials

Body Materials:

Carbon Steel (WCB, WCC)
Stainless Steel (304, 316, CF8, CF8M)
Duplex Stainless Steel
Alloy Steel
Titanium

Ball & Stem Materials:

SS304, SS316, SS316L
Stellite-coated alloys for high-wear service
Alloy steel

Seat Materials:

PTFE, RTFE, PEEK, Metal Seats

Certifications

ISO 9001 Quality Management System
ISO 14001 Environmental Management System
ISO 45001 Occupational Health & Safety Management System
CE Certification
API 6D / API 608 Compliance
PED (Pressure Equipment Directive)
ATEX / IECEx Certifications
Fire-Safe Design (API 607 / API 6FA)
SIL Functional Safety Certification
RoHS Compliance
EN 10204 3.1 / 3.2 Material Certificate
Third-party inspection available (SGS, TUV, BV, Lloyd’s Register)

Parameter Specifications

Item	Specification
Product Name	3PC Internal Thread High Platform Ball Valve
Valve Type	Three-Piece Ball Valve, Floating / Trunnion Mounted
Nominal Size	DN10–DN300 (½"–12")
Pressure Rating	PN10–PN420 / ANSI Class 150–1500
Body Material	WCB, WCC, SS304, SS316, CF8, CF8M, Duplex SS, Alloy Steel, Titanium
Ball Material	SS304, SS316, SS316L, Stellite-coated alloys
Stem Material	SS304, SS316, Alloy Steel
Seat Material	PTFE, RTFE, PEEK, Metal Seats
Connection Type	Internal Thread (Female)
Thread Standard	NPT, BSPT, BSPP, ISO7/1
Bore Type	Full Bore / Reduced Bore / V-Port
Operation Type	Manual Lever, Gear, Pneumatic, Electric Actuator
Operating Temperature	-196°C to +450°C (depending on seat material)
Maximum Working Pressure	Up to 42 MPa
Leakage Class	ANSI/FCI 70-2 Class VI
Fire-Safe Design	API 607 / API 6FA (Optional)
Anti-Static Feature	Yes
Design Standard	API 6D, API 608, ASME B16.34
Face-to-Face Standard	ASME B16.10
End Connection Standard	NPT, BSPT, BSPP, ISO7/1
Inspection & Testing	API 598, EN 12266
Applicable Media	Water, Oil, Gas, Steam, Chemicals, Corrosive Fluids

Industry Applications

Oil & Gas Industry

Crude oil and refined product pipelines
Natural gas distribution and transmission
Offshore and onshore production facilities
High-pressure utility pipelines
Instrumentation and sampling lines

Petrochemical & Chemical Industry

Reactor and distillation lines
Solvent transfer pipelines
Corrosive and high-temperature pipelines
Flow measurement and throttling applications

Power Generation

Steam and condensate lines
Boiler auxiliary pipelines
High-pressure water systems
Turbine auxiliary systems

Pharmaceutical & Food & Beverage

Process water and steam lines
Beverage and dairy production pipelines
CIP/SIP systems
Laboratory and pilot plant pipelines

Marine & Offshore

Fuel and lube oil systems
Hydraulic pipelines
Cooling water systems
Engine room pipelines

Water Treatment & Utilities

Potable water networks
Wastewater treatment pipelines
Industrial water distribution pipelines
HVAC water systems

CUSTOMIZED SERVICE Customized Product

Material customization plan

Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.

Structural optimization design

For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.

Interface standard adaptation

Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
