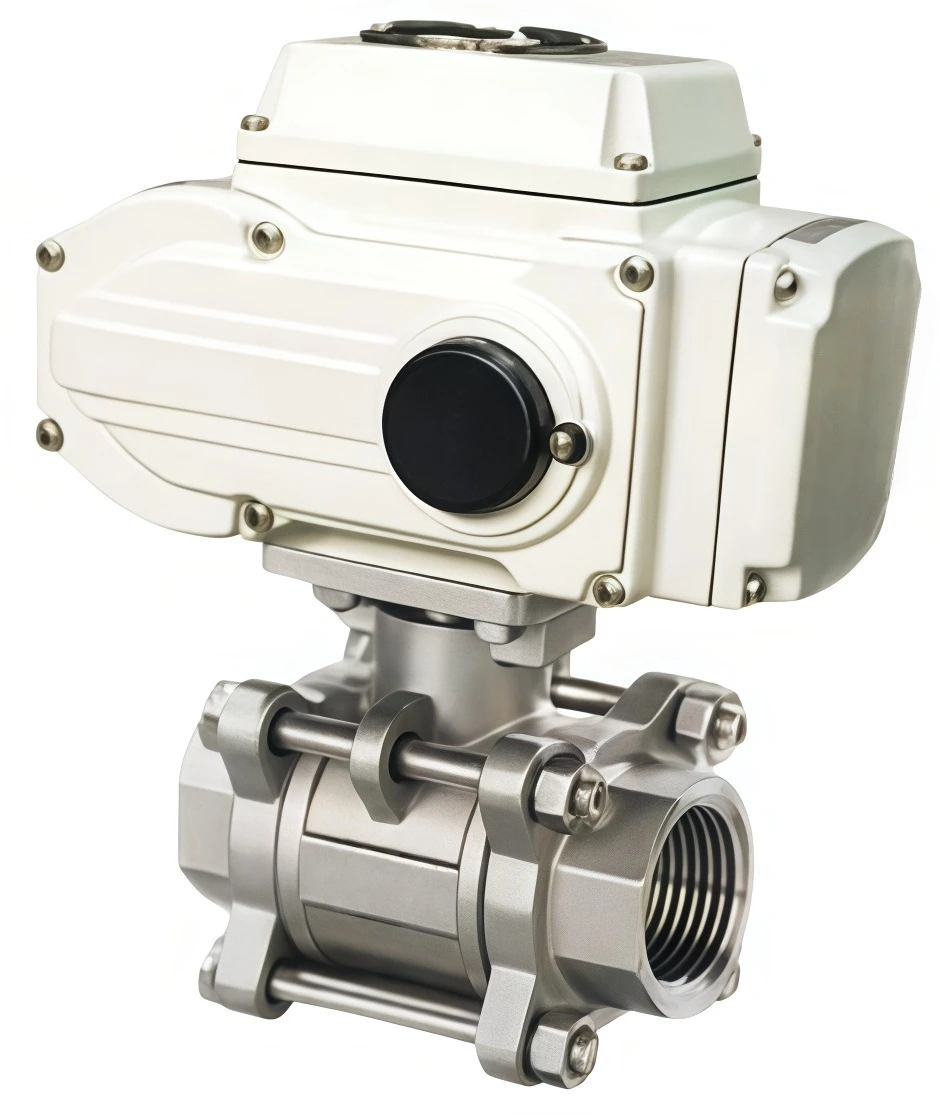

Electric screw ball valve
The Electric Screw Ball Valve is an automated valve that combines a high-performance threaded ball valve with an electric actuator, providing precise flow control, reliable shut-off, and intelligent remote operation. Designed with a screw threaded connection structure, it features compact installation, strong connection reliability, and excellent sealing performance for various industrial piping systems.

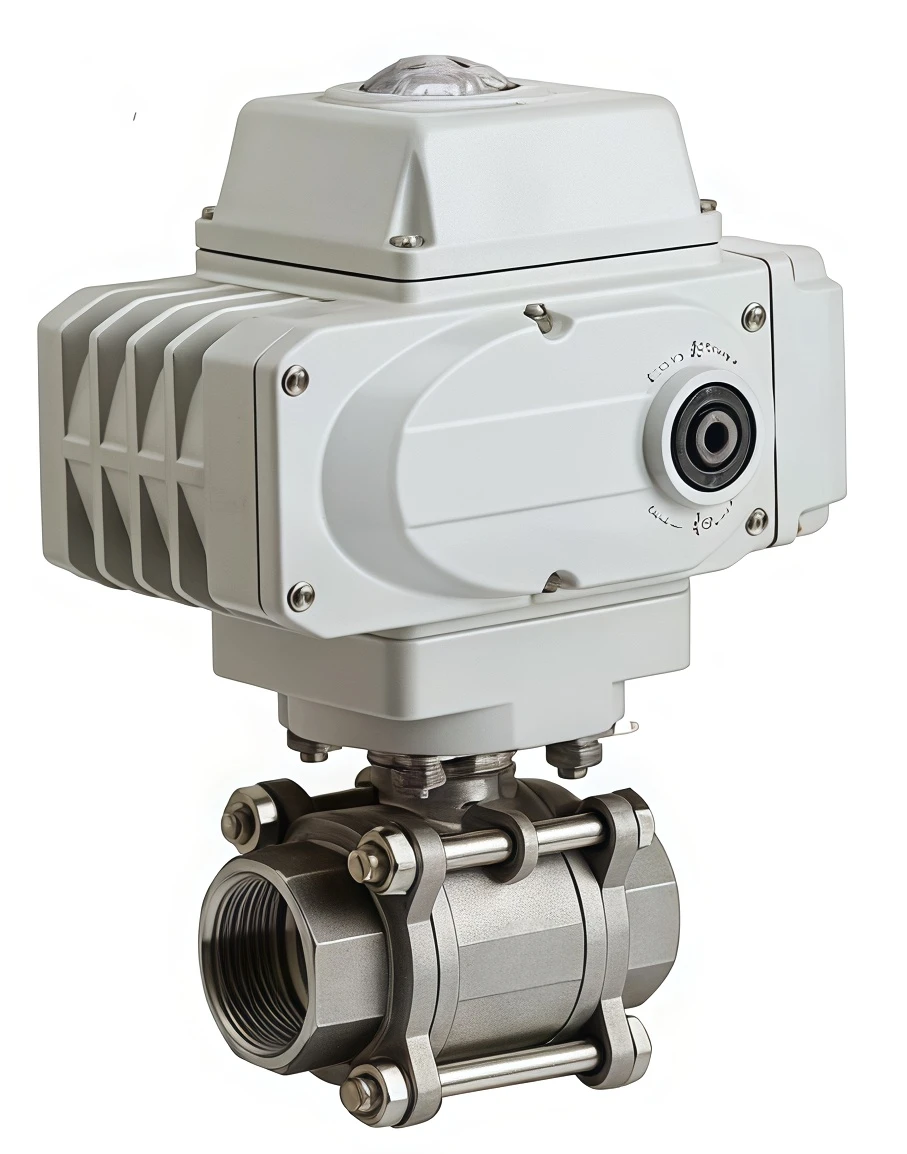

Electric screw ball valve
The valve adopts a precision-engineered ball and sealing structure, ensuring low torque operation, smooth flow passage, and long service life. Equipped with an electric actuator, it enables automatic opening and closing control, making it ideal for applications requiring remote control, automation, and precise fluid management.
We provide professional OEM manufacturing and customization services, including customized valve sizes, materials, thread standards, pressure ratings, actuator specifications, control modes, sealing materials, electrical configurations, surface treatments, logo marking, and packaging solutions. Our manufacturing process follows strict quality management systems, with complete valve industry certifications, inspection procedures, and testing capabilities to ensure compliance with international standards and customer project requirements.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Electric Screw Ball Valve |
| Valve Type | Electric Actuated Threaded Ball Valve |
| Valve Structure | Floating Ball Valve / Fixed Ball Valve |
| Body Material | Stainless Steel 304/316, Brass, Carbon Steel, Alloy Materials |
| Ball Material | Stainless Steel / Customized Materials |
| Connection Type | Screw Thread Connection |
| Thread Standard | NPT / BSP / BSPT / G Thread |
| Nominal Size | DN8-DN100 / 1/4"-4" |
| Pressure Rating | PN1.6-PN6.4 MPa / Class 150-Class 600 |
| Working Temperature | -20°C to 180°C (Customized according to materials) |
| Applicable Medium | Water, Oil, Gas, Air, Steam, Chemical Fluids |
| Actuator Type | Electric Rotary Actuator |
| Power Supply | DC12V / DC24V / AC110V / AC220V / Customized |
| Control Mode | On-Off Control / Modulating Control |
| Sealing Material | PTFE, RPTFE, Graphite, Metal Seal |
| Port Type | Full Port / Reduced Port |
| Flow Direction | Bidirectional Flow |
| Valve Operation | Electric Automatic Control |
| Stem Design | Anti-Blowout Stem Structure |
| Protection Grade | IP65 / IP67 (Customized) |
| Connection Feature | Compact Screw Thread Installation |
| Design Standard | ANSI, API, DIN, GB, JIS Standards Available |
| Testing Standard | API 598 / EN 12266 Pressure Testing |
| OEM Capability | Customized Design, Materials, Actuators, Electrical Components, Branding and Packaging |
| Certification | ISO, CE, API, PED and Other Valve Industry Certifications Available |
Industry Applications
The Electric Screw Ball Valve is widely used in automated pipeline systems requiring precise control, remote operation, and reliable shut-off, including:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
