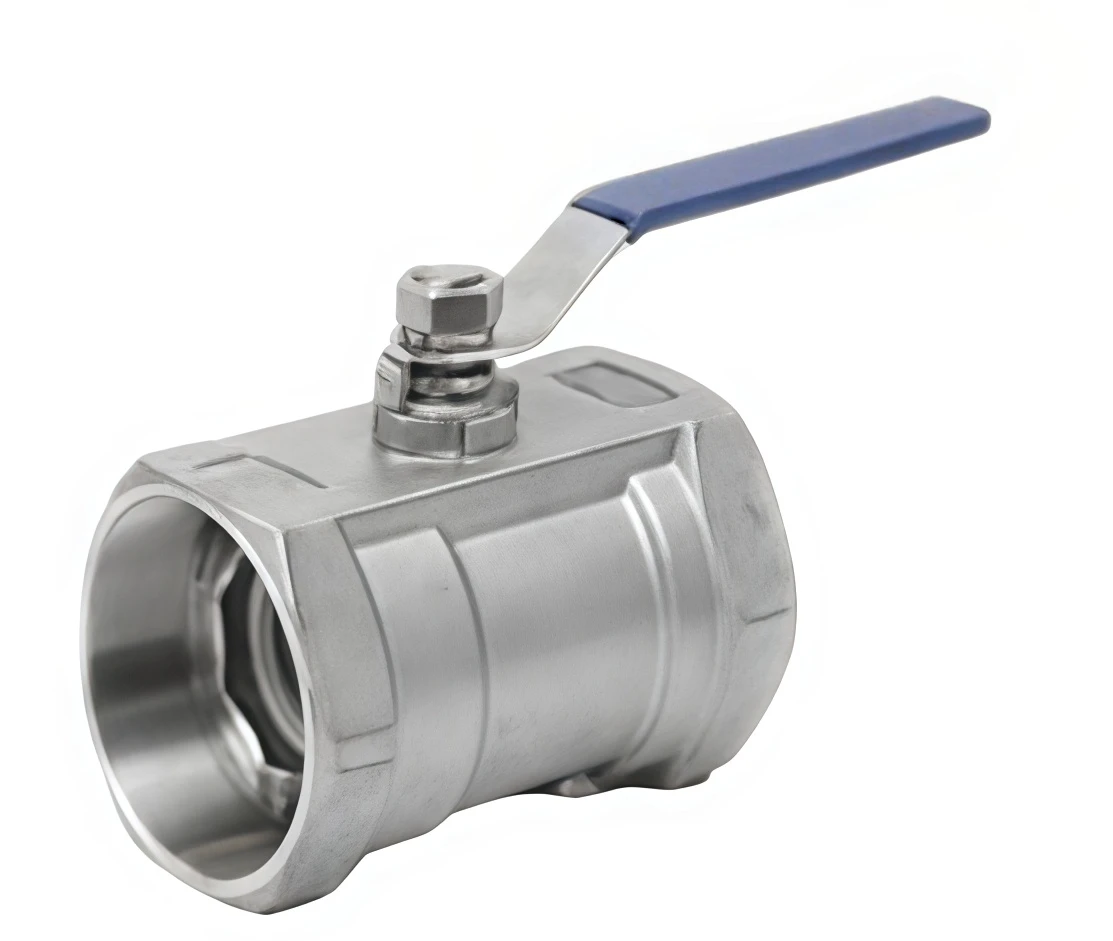

One-piece ball valve
The One-Piece Ball Valve is a compact and reliable shut-off valve designed for quick operation, excellent sealing performance, and long service life. With an integrated one-piece valve body structure, it provides high strength, reduced leakage risk, and easy installation, making it widely used in various industrial and commercial piping systems.
One-piece ball valve
Manufactured with premium materials and advanced production technology, the One-Piece Ball Valve features low operating torque, corrosion resistance, and stable performance under different pressure and temperature conditions. It is suitable for controlling the flow of water, oil, gas, and other compatible media.
We provide comprehensive OEM manufacturing and customization services, including customized valve sizes, materials, connection standards, pressure ratings, sealing materials, handle designs, surface treatments, logo printing, and packaging solutions. Our production process follows strict quality management systems, with complete valve industry certifications and testing capabilities to meet international standards and customer-specific requirements.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | One-Piece Ball Valve |
| Valve Type | One-Piece Full Port Ball Valve |
| Body Material | Stainless Steel, Carbon Steel, Brass, Customized Materials |
| Ball Material | Stainless Steel / Customized Alloy Materials |
| Connection Type | Threaded / Socket Weld / Customized |
| Thread Standard | NPT / BSP / BSPT / Other Standards |
| Nominal Size | DN6-DN100 / 1/4"-4" |
| Pressure Rating | PN1.6-PN6.4 MPa / Class 150-Class 600 |
| Working Temperature | -20°C to 180°C (Customized according to materials) |
| Applicable Medium | Water, Oil, Gas, Air, Steam, Chemical Fluids |
| Operation Method | Manual Handle / Electric Actuator / Pneumatic Actuator |
| Sealing Material | PTFE, RPTFE, Graphite, Metal Seal |
| Valve Structure | One-Piece Integrated Body Design |
| Flow Direction | Bidirectional Flow |
| Port Type | Full Port / Reduced Port |
| Design Standard | ANSI, API, DIN, GB, JIS Standards Available |
| Testing Standard | API 598 / EN 12266 Pressure Testing |
| OEM Capability | Customized Design, Dimensions, Materials, Branding and Packaging |
| Certification | ISO, CE, API, PED and Other Valve Industry Certifications Available |
Industry Applications
The One-Piece Ball Valve is widely used in industries requiring compact design, reliable shut-off performance, and easy maintenance, including:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
