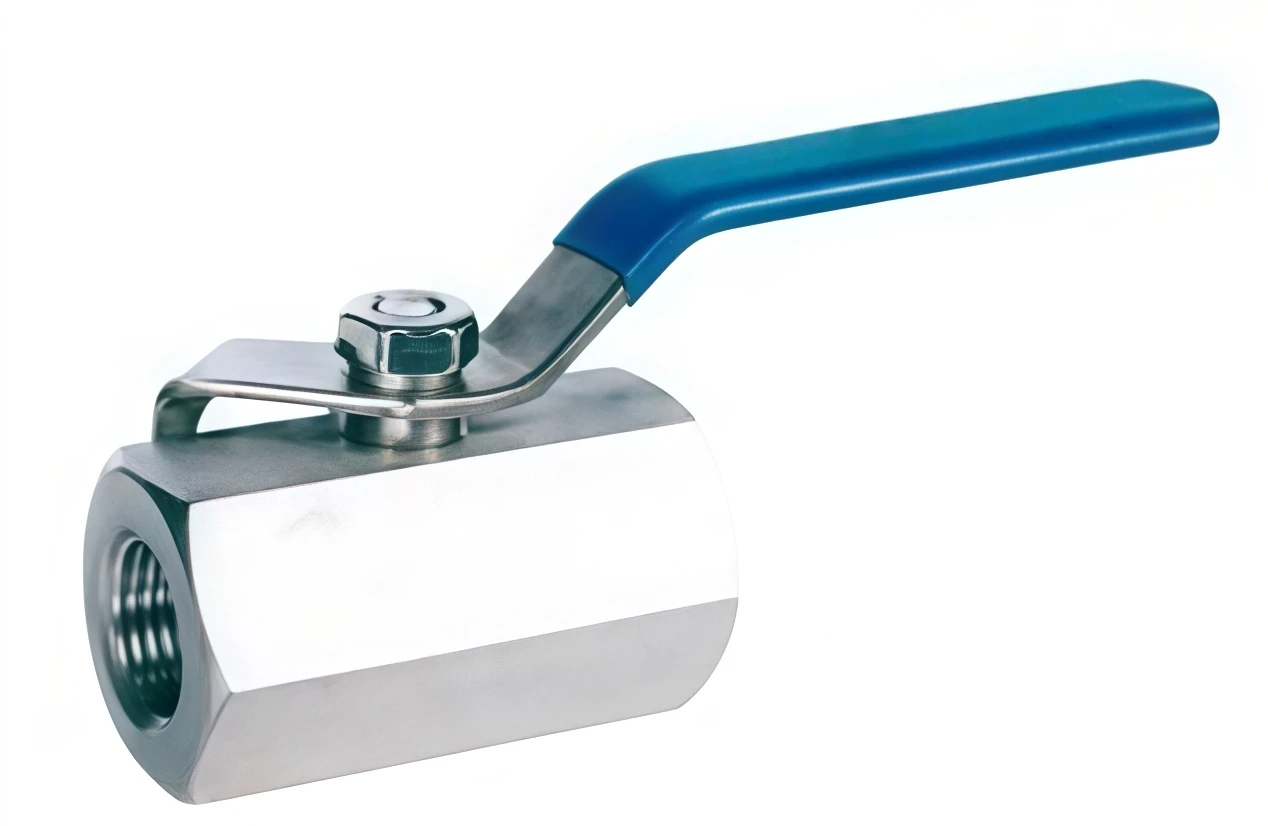

One-piece hexagonal ball valve
The One-Piece Hexagonal Ball Valve is a compact and durable shut-off valve featuring a hexagonal one-piece body design, excellent mechanical strength, and reliable sealing performance. Its integrated structure reduces the risk of leakage, improves pressure resistance, and provides easy installation in limited spaces.
One-piece hexagonal ball valve
Manufactured from high-quality stainless steel, brass, and other corrosion-resistant materials, the valve offers smooth operation, low torque performance, and long service life. The hexagonal body design allows convenient wrench installation and is widely used in small-diameter piping systems for water, oil, gas, air, and other compatible media.
We provide professional OEM manufacturing and customization services, including customized valve sizes, materials, thread standards, pressure ratings, sealing materials, handle designs, surface treatments, laser marking, logo branding, and packaging solutions. Our products are manufactured under strict quality control systems with complete valve industry certifications, testing procedures, and inspection capabilities to meet international standards and customer requirements.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | One-Piece Hexagonal Ball Valve |
| Valve Type | One-Piece Mini Ball Valve |
| Body Structure | Hexagonal One-Piece Integrated Body Design |
| Body Material | Stainless Steel 304/316, Brass, Carbon Steel, Customized Materials |
| Ball Material | Stainless Steel / Brass / Customized Materials |
| Connection Type | Internal Thread / External Thread / Customized |
| Thread Standard | NPT / BSP / BSPT / G Thread |
| Nominal Size | DN6-DN50 / 1/4"-2" |
| Pressure Rating | PN1.6-PN6.4 MPa / Class 150-Class 600 |
| Working Temperature | -20°C to 180°C (Customized according to materials) |
| Applicable Medium | Water, Oil, Gas, Air, Steam, Non-Corrosive Fluids |
| Operation Method | Manual Handle / Customized Actuation |
| Sealing Material | PTFE, RPTFE, Graphite, Metal Seal |
| Port Type | Full Port / Reduced Port |
| Flow Direction | Bidirectional Flow |
| Valve Structure | Compact Hexagonal Body Design |
| Stem Design | Anti-Blowout Stem Structure |
| Installation Feature | Wrench-Friendly Hexagonal Body |
| Design Standard | ANSI, DIN, GB, JIS Standards Available |
| Testing Standard | API 598 / EN 12266 Pressure Testing |
| OEM Capability | Customized Design, Materials, Dimensions, Branding and Packaging |
| Certification | ISO, CE, API, PED and Other Valve Industry Certifications Available |
Industry Applications
The One-Piece Hexagonal Ball Valve is widely used in compact piping systems and equipment requiring reliable shut-off and easy installation, including:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
