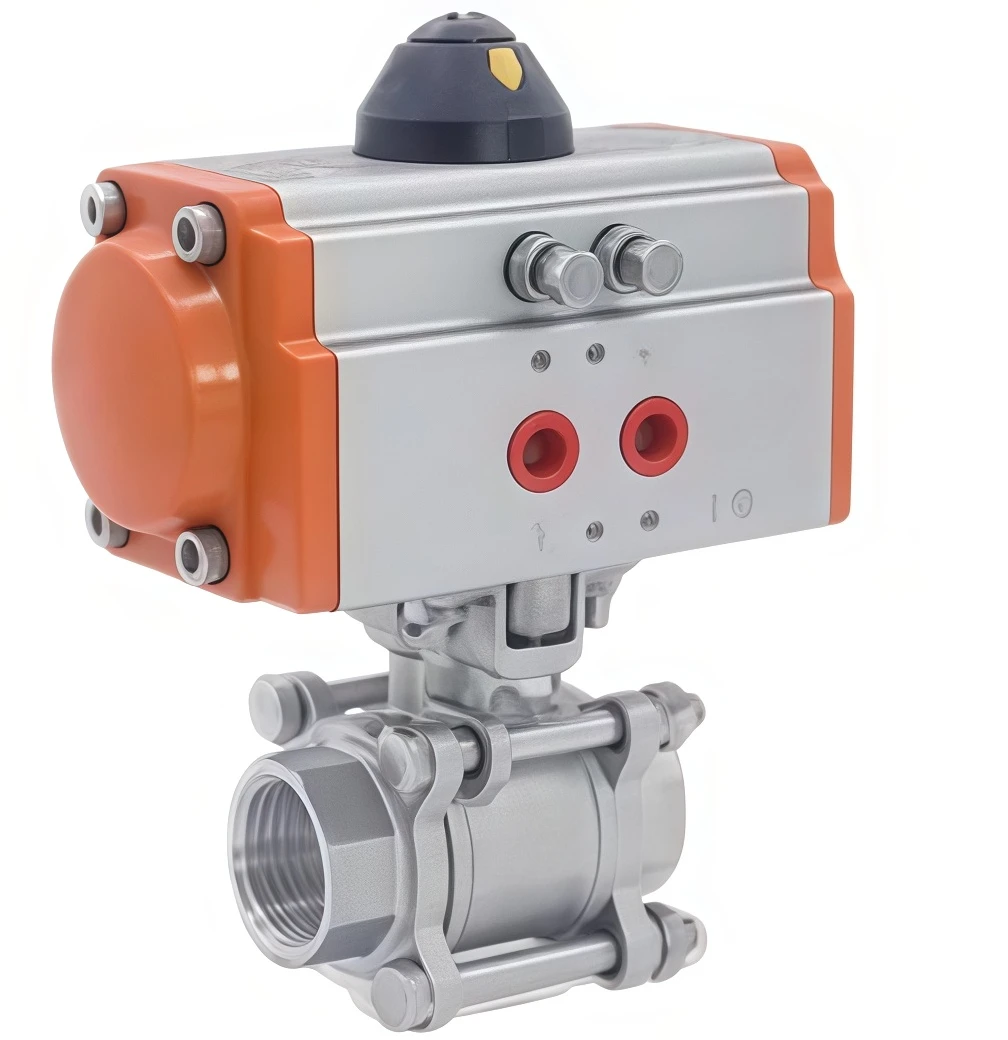

Pneumatic screw ball valve
The Pneumatic Screw Ball Valve is an automated flow control valve that combines a high-performance ball valve with a pneumatic actuator, providing fast operation, reliable shut-off, and efficient remote control capabilities. Designed with a screw threaded connection structure, it offers convenient installation, compact design, and excellent sealing performance for various industrial piping systems.
Pneumatic screw ball valve
The valve adopts a precision-machined ball and sealing structure to ensure low torque operation, smooth flow control, and long service life. With pneumatic actuation, it enables quick opening and closing, making it suitable for automated processes requiring frequent operation and accurate fluid control.
We provide professional OEM manufacturing and customization services, including customized valve sizes, body materials, thread standards, pressure ratings, actuator types, control accessories, sealing materials, surface treatments, logo marking, and packaging solutions. Our products are manufactured under strict quality management systems with complete valve industry certifications, inspection procedures, and testing capabilities to ensure compliance with international standards and customer requirements.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Pneumatic Screw Ball Valve |
| Valve Type | Pneumatic Actuated Threaded Ball Valve |
| Valve Structure | Floating Ball Valve / Fixed Ball Valve |
| Body Material | Stainless Steel 304/316, Carbon Steel, Brass, Alloy Materials |
| Ball Material | Stainless Steel / Customized Materials |
| Connection Type | Screw Thread Connection |
| Thread Standard | NPT / BSP / BSPT / G Thread |
| Nominal Size | DN8-DN100 / 1/4"-4" |
| Pressure Rating | PN1.6-PN6.4 MPa / Class 150-Class 600 |
| Working Temperature | -20°C to 180°C (Customized according to materials) |
| Applicable Medium | Water, Oil, Gas, Air, Steam, Chemical Fluids |
| Actuator Type | Pneumatic Double-Acting / Single-Acting Actuator |
| Control Method | Solenoid Valve Control / Air Control / Remote Control |
| Air Supply Pressure | 0.3-0.8 MPa |
| Sealing Material | PTFE, RPTFE, Graphite, Metal Seal |
| Port Type | Full Port / Reduced Port |
| Flow Direction | Bidirectional Flow |
| Operating Speed | Fast Open/Close Operation |
| Stem Design | Anti-Blowout Stem Structure |
| Connection Feature | Compact Screw Thread Installation |
| Design Standard | ANSI, API, DIN, GB, JIS Standards Available |
| Testing Standard | API 598 / EN 12266 Pressure Testing |
| OEM Capability | Customized Design, Materials, Actuators, Branding and Packaging |
| Certification | ISO, CE, API, PED and Other Valve Industry Certifications Available |
Industry Applications
The Pneumatic Screw Ball Valve is widely used in automated fluid control systems requiring quick response, reliable sealing, and remote operation, including:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
