Stainless Steel Internal Thread Check Valve Screw End Non Return Valve High Quality Supplier

The Stainless Steel Internal Thread Check Valve is a compact and reliable one-way flow control valve designed to prevent backflow and protect piping systems. Manufactured from high-quality stainless steel materials, it offers excellent corrosion resistance, durability, and stable sealing performance, making it suitable for various fluid media including water, oil, gas, and mildly corrosive liquids.

Inquire Now Stainless Steel Internal Thread Check Valve Screw End Non Return Valve High Quality Supplier

Next Products Stainless Steel Internal Thread Check Valve Screw End Non Return Valve High Quality Supplier

Stainless steel internal thread check valve Parameter Specifications Industry Applications

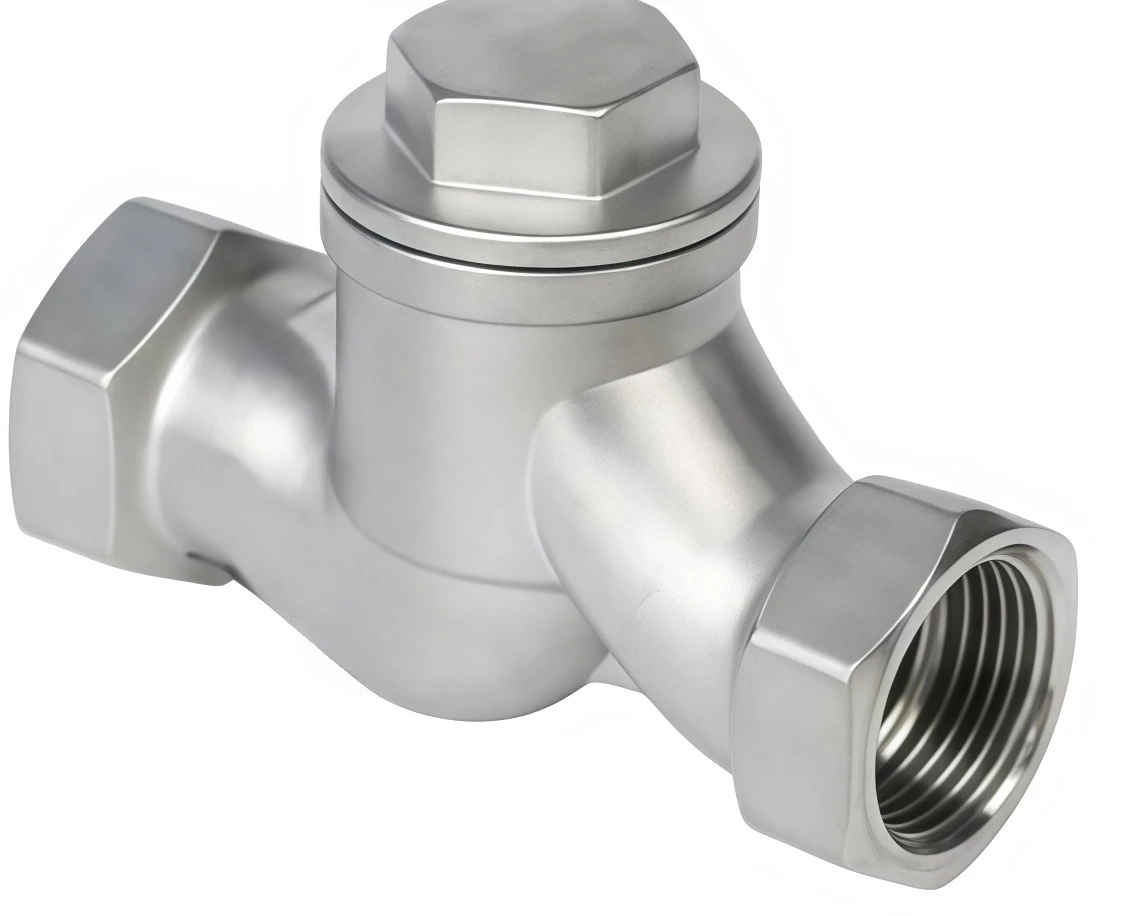

Stainless steel internal thread check valve

With a simple structure, low maintenance requirements, and quick response operation, this threaded check valve is widely used in industrial piping systems where reliable non-return flow protection is required.

OEM Capability & Customization

We provide comprehensive OEM and ODM services to meet different customer requirements, including:

Customized valve dimensions, connection standards, and thread specifications.
Customized materials such as SS304, SS316, and other corrosion-resistant alloys.
Customized sealing materials according to different working media and temperature conditions.
Customized logo marking, packaging, and surface finishing.
Customized pressure ratings, testing standards, and special application designs.

Our valves are manufactured under strict quality control systems with complete valve industry certifications and testing capabilities, including material inspection, pressure testing, sealing performance testing, and dimensional inspection to ensure reliable quality and international market compliance.

Parameter Specifications

Parameter	Specification
Product Name	Stainless Steel Internal Thread Check Valve
Valve Type	Threaded Check Valve / Non-Return Valve
Body Material	Stainless Steel SS304 / SS316 / Customized
Connection Type	Internal Thread / Female Thread
Thread Standard	BSP / NPT / G Thread / Customized
Nominal Size	DN6–DN100 (1/4"–4")
Pressure Rating	PN10–PN40 / Class 150–300 (Customized)
Working Temperature	-20°C to 180°C (Customized according to material)
Applicable Media	Water, Oil, Gas, Steam, Chemical Fluids, etc.
Sealing Material	PTFE / NBR / EPDM / Viton / Customized
Valve Operation	Automatic Flow Control
Structure Type	Spring Loaded / Lift Type / Swing Type (Optional)
Installation Position	Horizontal or Vertical Installation (According to Model)
Leakage Standard	Bubble Tight Sealing
Surface Treatment	Polishing / Passivation / Customized Finish
Inspection Standard	Pressure Test, Leakage Test, Material Test
OEM Service	Logo, Packaging, Size, Material, Design Customization Available

Industry Applications

The Stainless Steel Internal Thread Check Valve is widely applied in:

Water Treatment Systems – Prevents reverse flow in water supply and filtration pipelines.
Chemical Processing Industry – Provides reliable backflow protection for corrosive and chemical fluids.
Food & Beverage Industry – Suitable for hygienic stainless steel piping systems.
Pharmaceutical Industry – Used in clean fluid transfer and sanitary piping applications.
Oil & Gas Systems – Protects pumps and pipelines from reverse pressure.
HVAC Systems – Ensures stable circulation in heating and cooling systems.
Compressed Air Systems – Prevents pressure return and protects equipment.
Industrial Automation Equipment – Used for precise fluid direction control.
Marine and Offshore Applications – Provides corrosion-resistant flow protection in harsh environments.

CUSTOMIZED SERVICE Customized Product

Material customization plan

Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.

Structural optimization design

For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.

Interface standard adaptation

Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
