Y Type Threaded Filter Stainless Steel Y Strainer Pipeline Filter Valve for Industrial System

The Y-Type Threaded Filter is a compact and efficient pipeline filtration device designed to remove impurities, particles, and debris from fluid systems. Featuring a Y-shaped body design and threaded connection structure, it provides excellent filtration performance, low pressure loss, and convenient installation and maintenance.

Inquire Now Y Type Threaded Filter Stainless Steel Y Strainer Pipeline Filter Valve for Industrial System

Next Products Y Type Threaded Filter Stainless Steel Y Strainer Pipeline Filter Valve for Industrial System

Y-type threaded filter Parameter Specifications Industry Applications

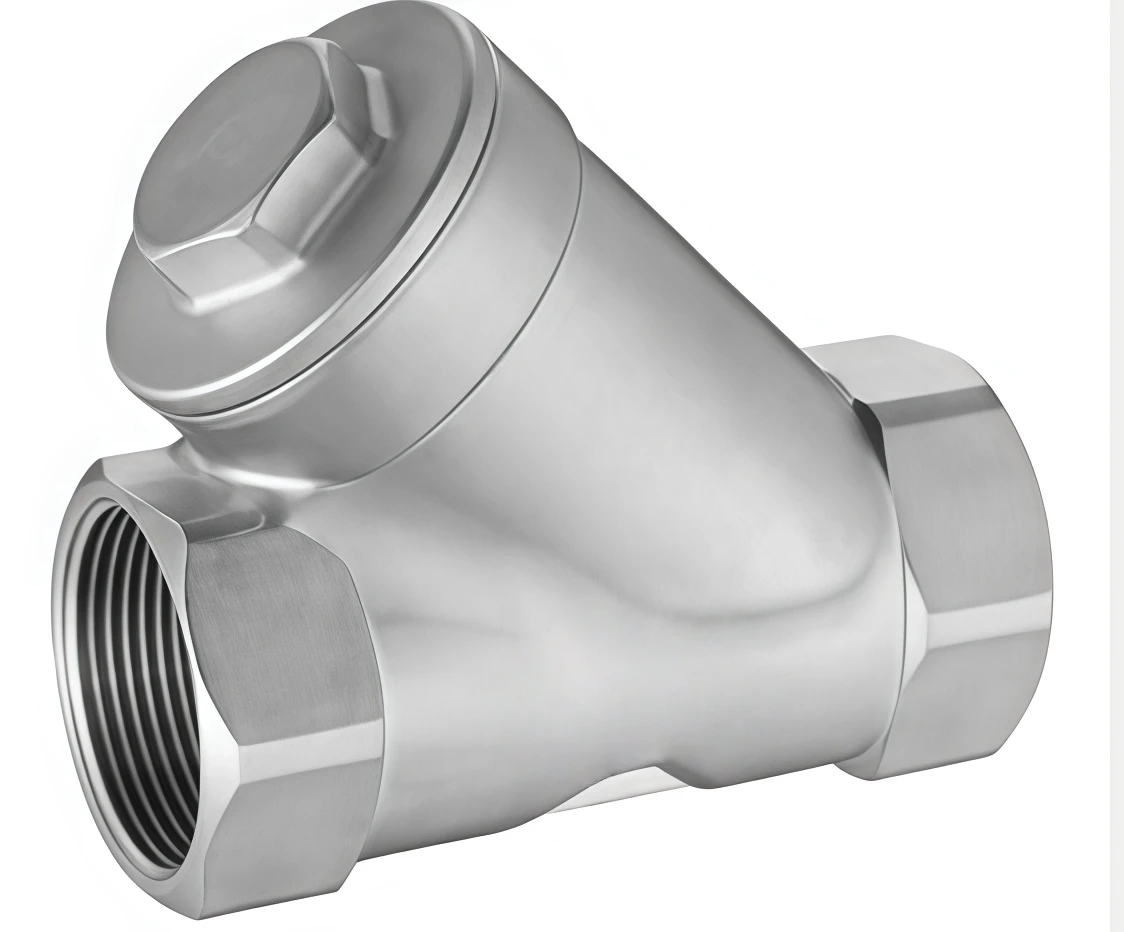

Y-type threaded filter

Manufactured from high-quality materials such as stainless steel, brass, and carbon steel, this filter offers excellent corrosion resistance, mechanical strength, and long service life. The removable filter screen allows easy cleaning and replacement, ensuring continuous and reliable operation of piping systems.

OEM Capability & Customization

We provide professional OEM and ODM customization services to meet various customer requirements, including:

Customized filter sizes, connection standards, and installation dimensions.
Customized materials such as SS304, SS316, brass, carbon steel, and special alloys.
Customized filtration accuracy and mesh size according to application requirements.
Customized sealing materials suitable for different media and temperature conditions.
Customized logo marking, packaging, and surface treatment.
Customized pressure ratings, inspection standards, and special structural designs.

Our products are manufactured under strict quality control systems with complete valve industry certifications and testing capabilities, including material inspection, pressure testing, sealing tests, filtration performance testing, and dimensional inspection to ensure reliable quality and international compliance.

Parameter Specifications

Parameter	Specification
Product Name	Y-Type Threaded Filter
Product Type	Y-Strainer / Threaded Pipeline Filter
Body Material	Stainless Steel SS304 / SS316 / Brass / Carbon Steel / Customized
Filter Screen Material	Stainless Steel Mesh
Connection Type	Threaded Connection
Thread Standard	BSP / NPT / G Thread / Customized
Size Range	DN8–DN100 (1/4"–4")
Pressure Rating	PN10–PN40 / Class 150–300 (Customized)
Working Temperature	-20°C to 200°C (Depending on Material and Seal)
Filtration Accuracy	20–300 Mesh (Customized)
Applicable Media	Water, Oil, Gas, Steam, Chemical Fluids
Filter Structure	Removable Cylindrical Mesh Screen
Installation Direction	Horizontal or Vertical Installation
Drain Type	Plug Drain / Customized
Sealing Material	PTFE / NBR / EPDM / Viton
Surface Treatment	Polishing / Sand Blasting / Customized
Maintenance Method	Easy Screen Removal and Cleaning
Inspection Standard	Pressure Test, Leakage Test, Material Inspection
OEM Service	Size, Material, Filter Mesh, Logo and Packaging Customization Available

Industry Applications

The Y-Type Threaded Filter is widely used in various industries and fluid control systems, including:

Water Treatment Systems – Removes suspended particles and protects pumps and valves.
HVAC Systems – Filters impurities in heating and cooling circulation pipelines.
Chemical Industry – Provides filtration protection for chemical fluid pipelines.
Oil & Gas Industry – Protects equipment from contamination and pipeline debris.
Food & Beverage Industry – Used in fluid processing systems requiring reliable filtration.
Pharmaceutical Industry – Applied in clean fluid handling and process systems.
Power Generation Industry – Protects pumps, meters, and control equipment.
Compressed Air Systems – Removes contaminants from air pipelines.
Industrial Automation Equipment – Ensures stable operation of precision components.
Marine Engineering – Provides corrosion-resistant filtration solutions.

CUSTOMIZED SERVICE Customized Product

Material customization plan

Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.

Structural optimization design

For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.

Interface standard adaptation

Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
