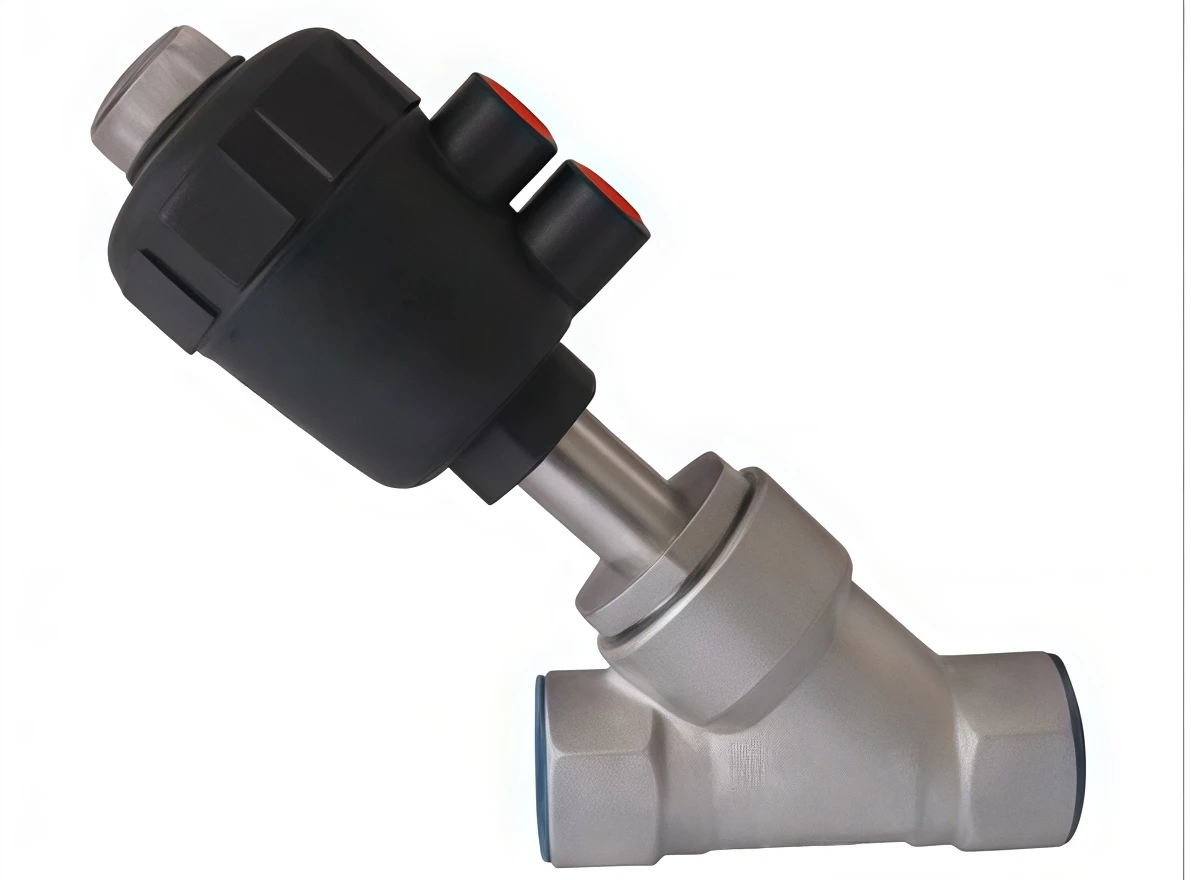

Y-type threaded pneumatic angle seat valve
The Y-Type Threaded Pneumatic Angle Seat Valve is a high-performance automatic control valve designed for fast switching, reliable shut-off, and precise flow regulation in various industrial fluid systems. Featuring a Y-shaped valve body structure and pneumatic actuator operation, it provides excellent flow capacity, low pressure loss, and long service life.
Y-type threaded pneumatic angle seat valve
This valve is widely used for controlling water, steam, gas, air, and other compatible media. The threaded connection design makes installation convenient and suitable for compact piping systems where space is limited.
We provide comprehensive OEM and customization services, including customized valve sizes, connection standards, actuator configurations, sealing materials, body materials, surface treatments, and product labeling according to customer requirements. Our valves are manufactured under strict quality control systems with complete valve industry certifications, ensuring reliable performance, safety, and compliance with international standards.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Y-Type Threaded Pneumatic Angle Seat Valve |
| Valve Type | Pneumatic Angle Seat Valve |
| Valve Structure | Y-Type Straight Flow Design |
| Operation Method | Pneumatic Actuation |
| Connection Type | Threaded Connection |
| Thread Standard | BSP / NPT / G Thread / Customized |
| Body Material | Stainless Steel 304 / 316 / Customized |
| Seal Material | PTFE / EPDM / FKM / NBR |
| Nominal Size | DN15–DN100 (1/2"–4") |
| Pressure Rating | PN10–PN25 (Customized Available) |
| Working Temperature | -10℃ to +180℃ (Depending on Seal Material) |
| Medium | Water, Air, Gas, Steam, Oil, Weak Corrosive Fluids |
| Actuator Type | Single Acting / Double Acting Pneumatic Actuator |
| Control Mode | Normally Closed (NC) / Normally Open (NO) |
| Flow Direction | Bidirectional / Customized |
| Leakage Standard | Zero Leakage (According to Applicable Standards) |
| Installation Position | Any Direction Installation |
| Surface Treatment | Polishing / Sand Blasting / Customized |
| Applicable Standards | ISO, DIN, ANSI, GB Standards Available |
| Certification | CE, ISO9001, and Other Valve Industry Certifications |
Industry Applications
The Y-Type Threaded Pneumatic Angle Seat Valve is widely used in:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
