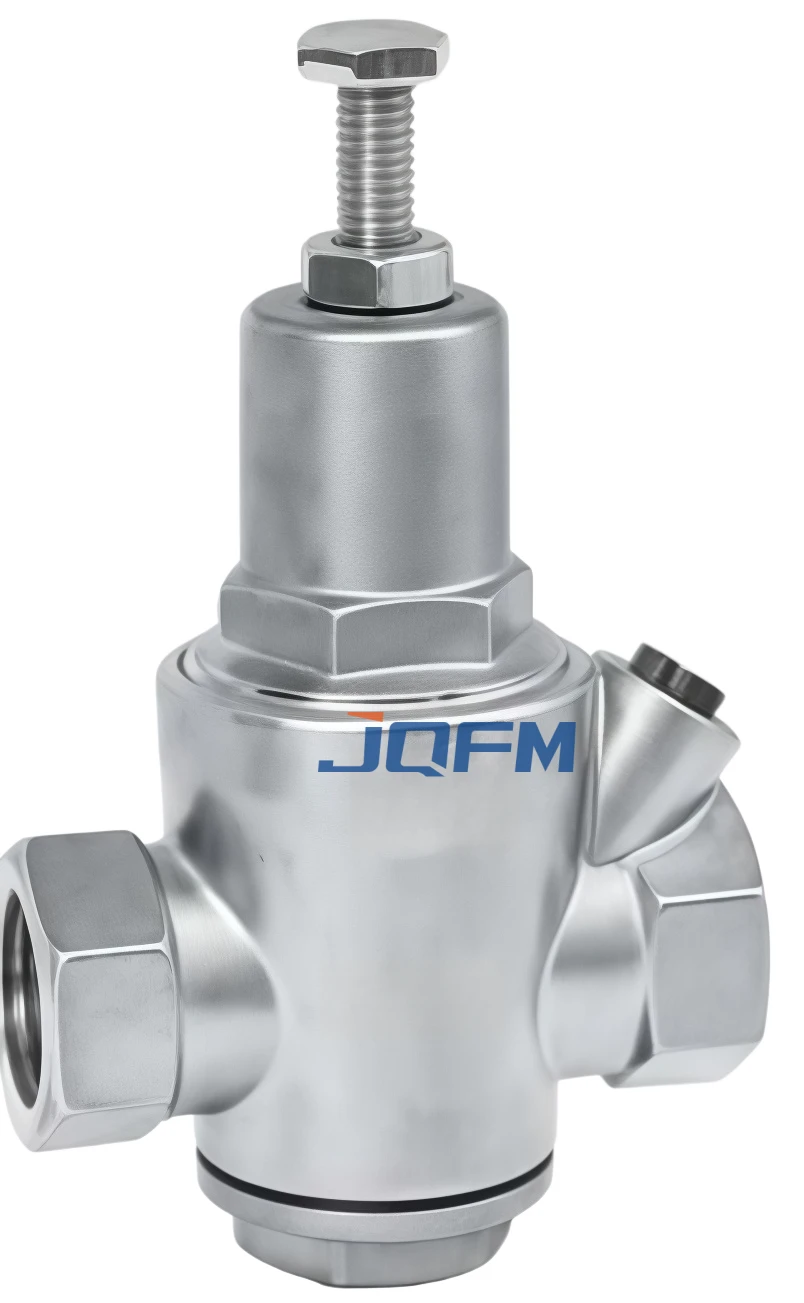

A pressure reducing valve (PRV) is a type of regulating valve designed to automatically reduce and control the pressure of a fluid (liquid or gas) from a higher input pressure to a lower, more manageable output pressure. It ensures that the downstream system, equipment, or machinery operates within the desired pressure range, preventing damage and improving efficiency.
PRVs are critical for maintaining the safety, performance, and longevity of fluid systems by regulating excessive pressure that could potentially damage pipes, valves, or equipment.
How Does a Pressure Reducing Valve Work?
A PRV operates using a spring-loaded mechanism that adjusts the valve opening to maintain a set downstream pressure. Here’s a step-by-step breakdown of how it works:
1. Inlet Pressure: The PRV is connected to a high-pressure fluid system (such as a water supply or gas pipeline), where the fluid enters the valve at a higher pressure than the desired output.
2. Spring Mechanism: Inside the PRV, there is a spring-loaded diaphragm or piston that reacts to changes in downstream pressure. The spring applies pressure to the valve mechanism, creating a force that keeps the valve closed or partially closed.
3. Pressure Setting: The PRV is preset to a specific downstream pressure, which is the target pressure you want to maintain in the system. This setting is adjustable, allowing the operator to fine-tune the desired output pressure.
4. Flow Control: When the downstream pressure exceeds the set point (i.e., when the system pressure becomes too high), the spring inside the valve compresses, causing the valve to open slightly. This allows the fluid to escape or flow through the valve to reduce the pressure.
5. Pressure Stabilization: As the downstream pressure decreases and reaches the desired setpoint, the spring mechanism pushes the valve back toward the closed position, limiting the flow and maintaining the system pressure at the desired level.
6. Balanced Pressure: The valve continuously adjusts to keep the downstream pressure stable and consistent, preventing dangerous overpressure conditions while allowing the necessary flow rate.
