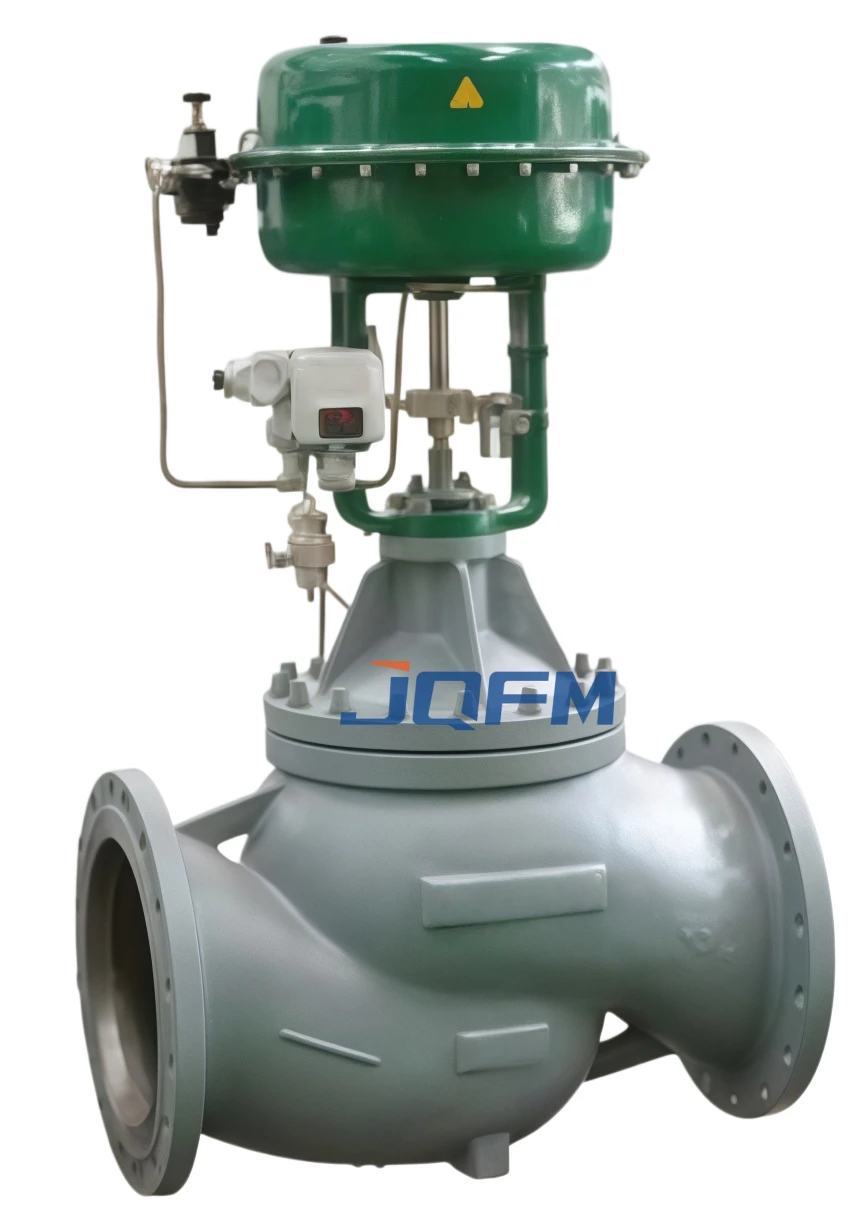

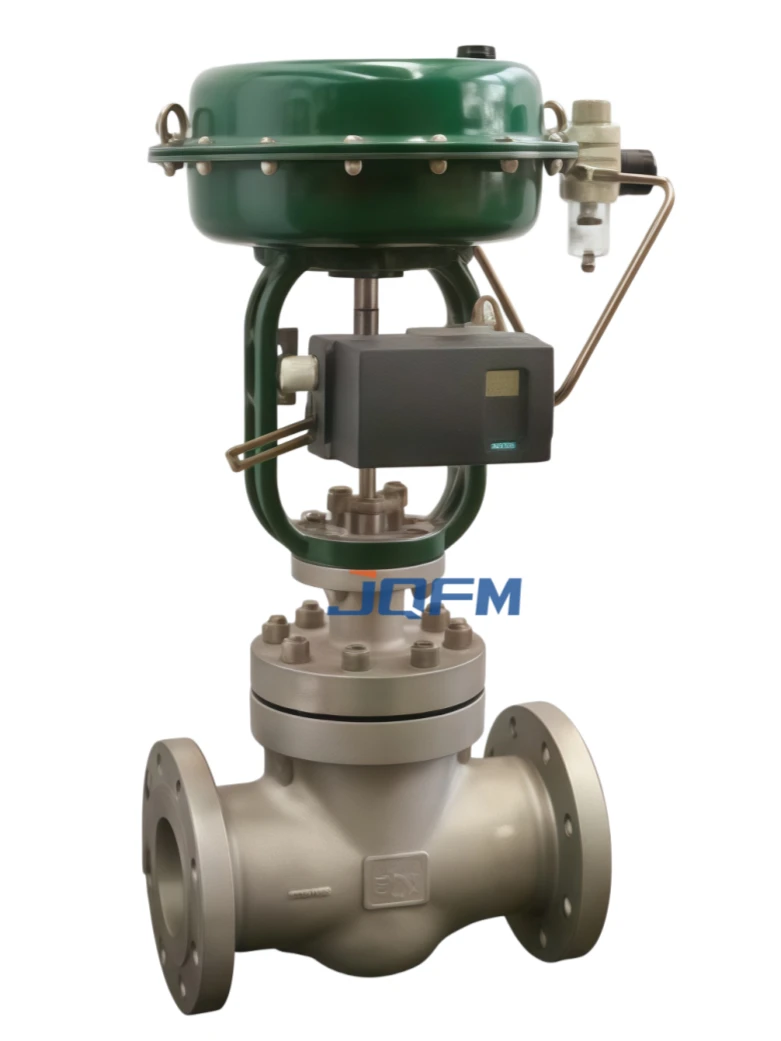

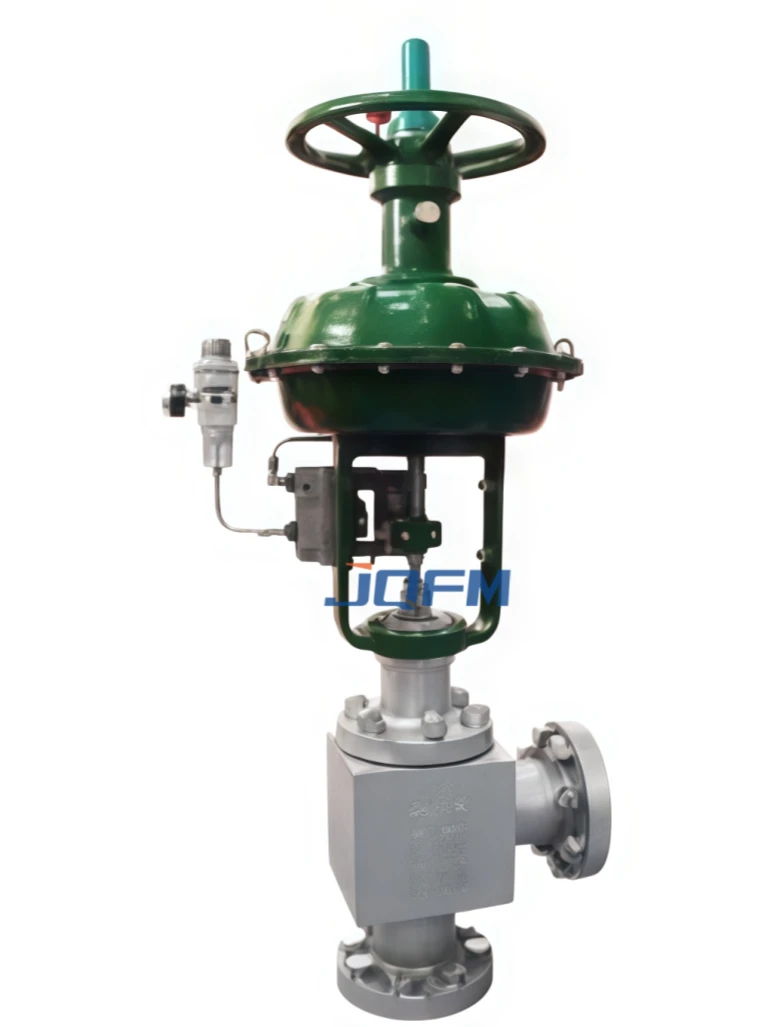

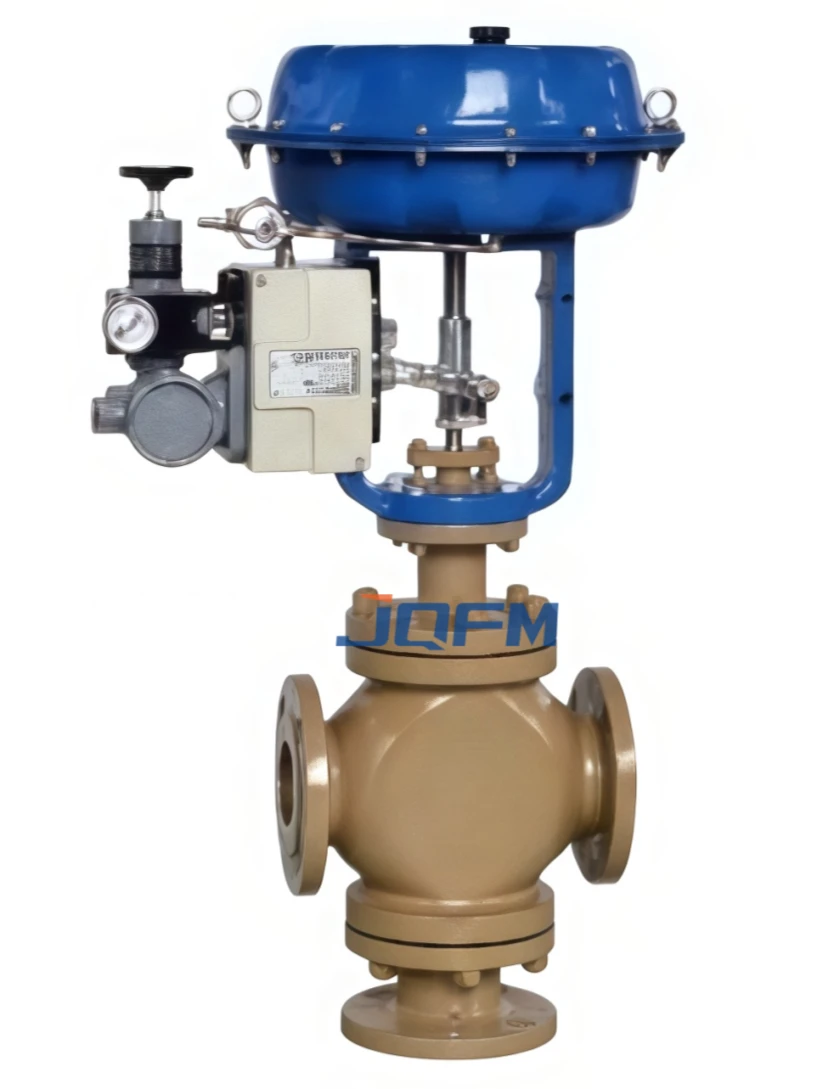

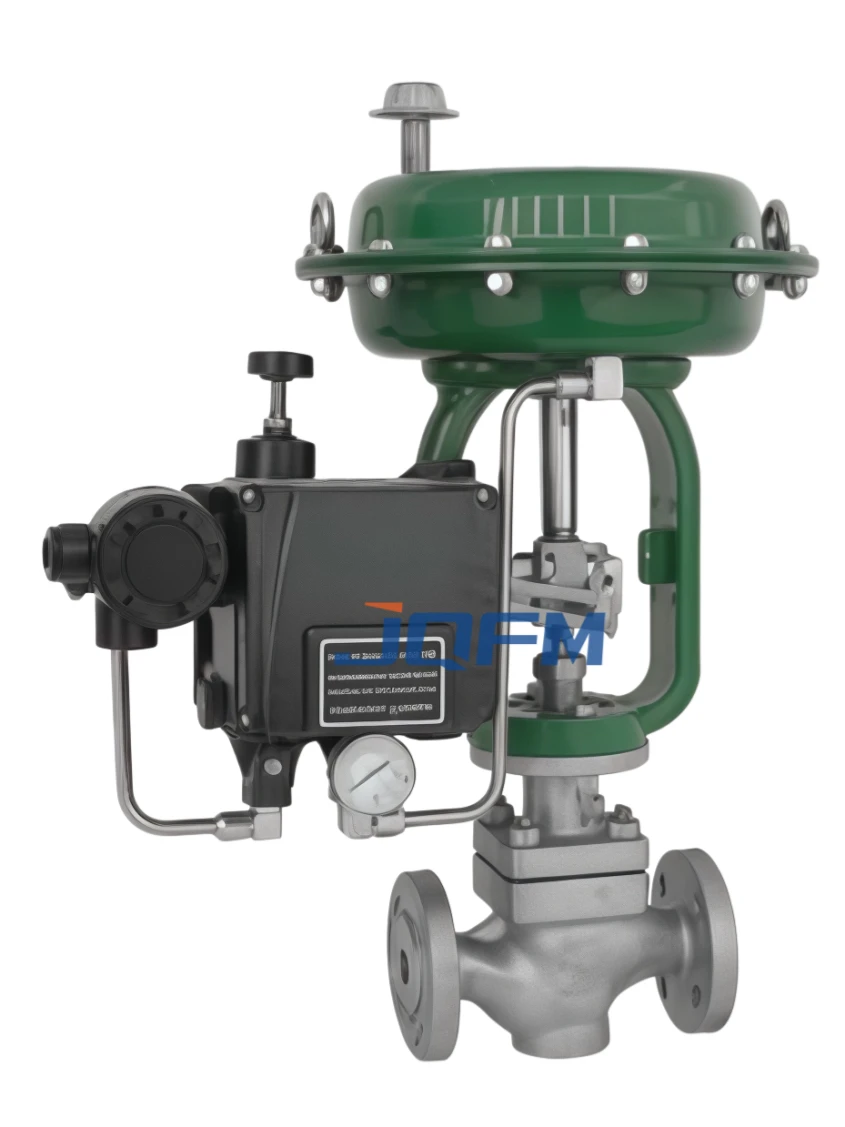

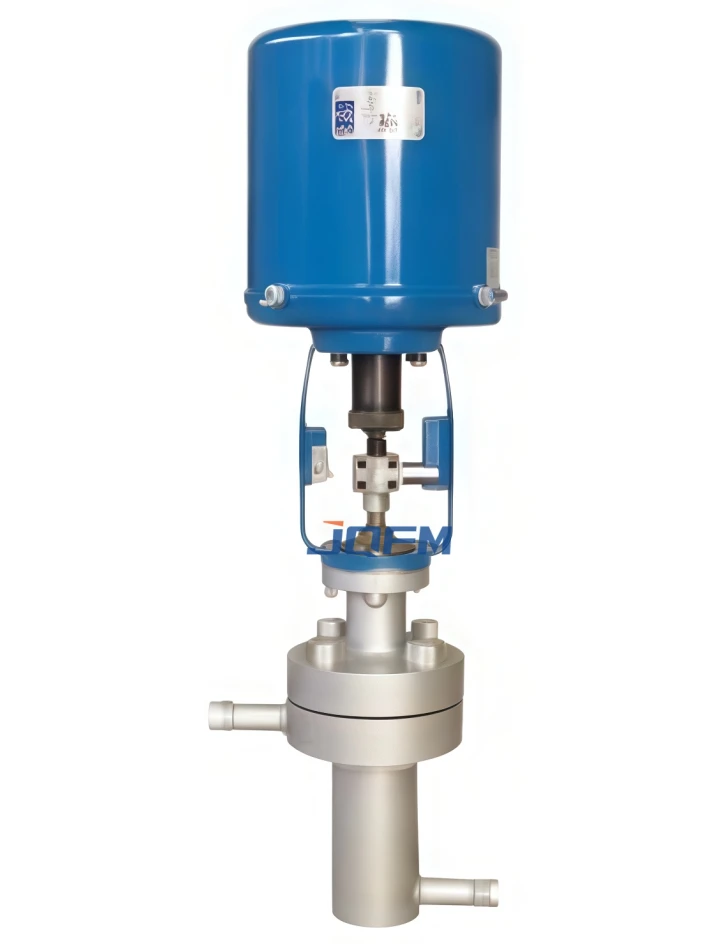

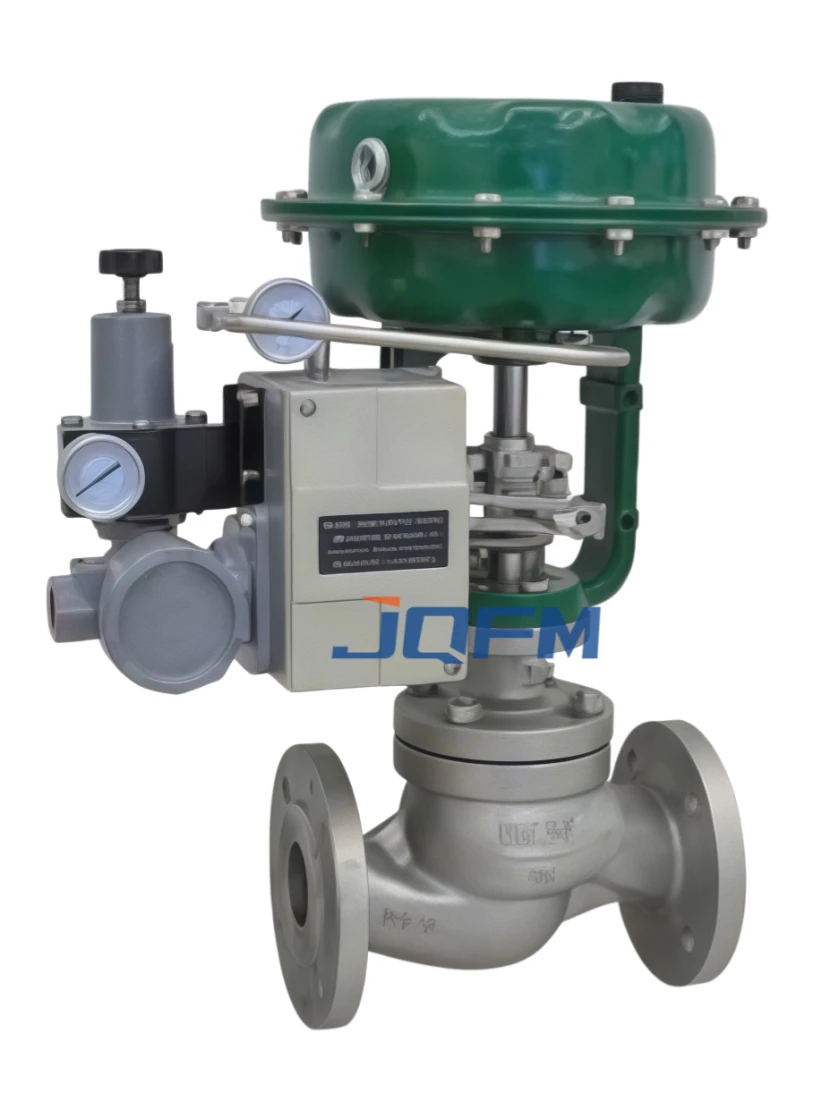

A control valve is a type of valve used to regulate the flow, pressure, temperature, or level of fluids (liquids, gases, or steam) in a system. Unlike on/off valves (like gate or ball valves), a control valve is designed to throttle the flow of a medium continuously. Control valves are integral parts of automatic control systems, ensuring that various process variables stay within the required setpoints for optimal performance.

In summary, a control valve enables precise and dynamic control over fluid flow in a wide variety of industrial processes.

How Does a Control Valve Work?

Control valves adjust the flow of fluid in response to a signal from a controller (e.g., a PID controller or DCS). The basic components of a control valve system include:

1. Valve Body: The main casing that houses the internal components like the plug, seat, and actuator. It connects to the pipeline and contains the passage for fluid flow.

2. Actuator: The actuator is the part of the valve that moves the valve's internal mechanism (e.g., plug, ball, or diaphragm) to adjust the flow rate. The actuator can be pneumatic, electric, hydraulic, or manual.

3. Valve Trim: The internal parts that control the flow, including the plug, seat, stem, and sometimes a nozzle or control element. The plug moves within the seat to regulate the flow of the fluid.

4. Positioner:  A device that ensures the actuator’s position matches the control signal from the controller. It adjusts the actuator to the correct position and provides feedback on the valve’s status.

5. Controller: The control system that sends signals to the actuator, determining how much the valve should open or close based on input from sensors that measure variables like pressure, temperature, or flow rate.
