A filter valve is a type of valve designed to filter out unwanted particles, debris, and contaminants from a fluid (liquid or gas) before it flows through a system. It combines the functionality of a valve and a filter into one device. The valve controls the flow of the fluid, while the filter part ensures that harmful substances are removed from the flow before it reaches sensitive equipment or areas of the system.

These valves are crucial in maintaining the cleanliness of fluid systems and protecting upstream equipment (such as pumps, compressors, and valves) from damage caused by debris or contamination.

How Does a Filter Valve Work?

A filter valve typically functions in two stages:

1. Flow Control: Like any valve, a filter valve allows fluid (liquid or gas) to flow through it. The valve may be operated manually or automatically, depending on the system design. When the valve is open, fluid passes through the valve body, and when it is closed, the flow is stopped.

2. Filtration: Inside the valve, there is a filter element (usually a mesh or screen) designed to capture and retain particles and contaminants. As fluid flows through the valve, it passes through the filter element, which traps any debris, particles, or impurities in the fluid.

The filter element can be made from various materials, such as stainless steel mesh, fiber, paper, or ceramic, depending on the type of fluid and the level of filtration required.

The filter typically has a specific micron rating (e.g., 100 microns, 200 microns), which defines the size of particles it can effectively remove from the fluid.

3. Debris Collection: The contaminants trapped in the filter element remain inside the valve, and the clean fluid passes through. Depending on the valve design, the filter element may be self-cleaning or require periodic maintenance (such as cleaning or replacing the filter).

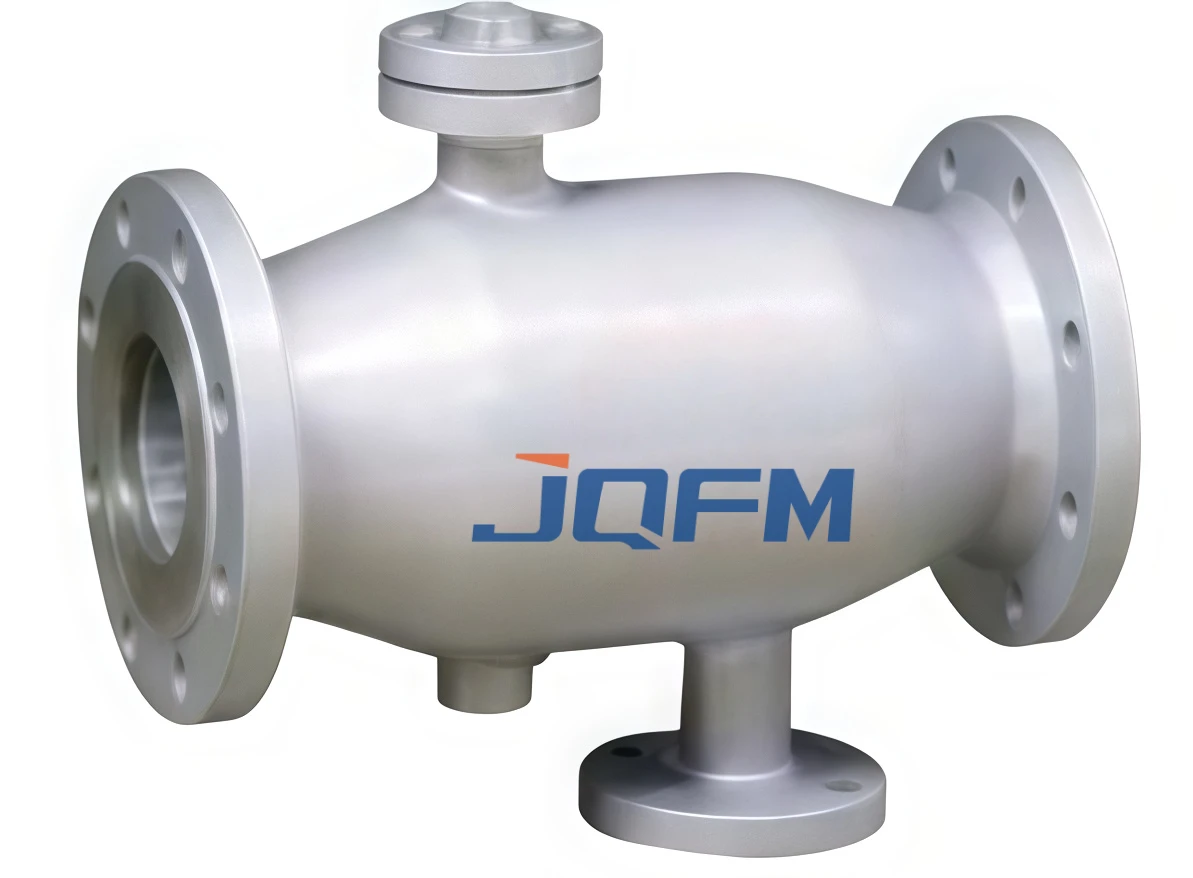

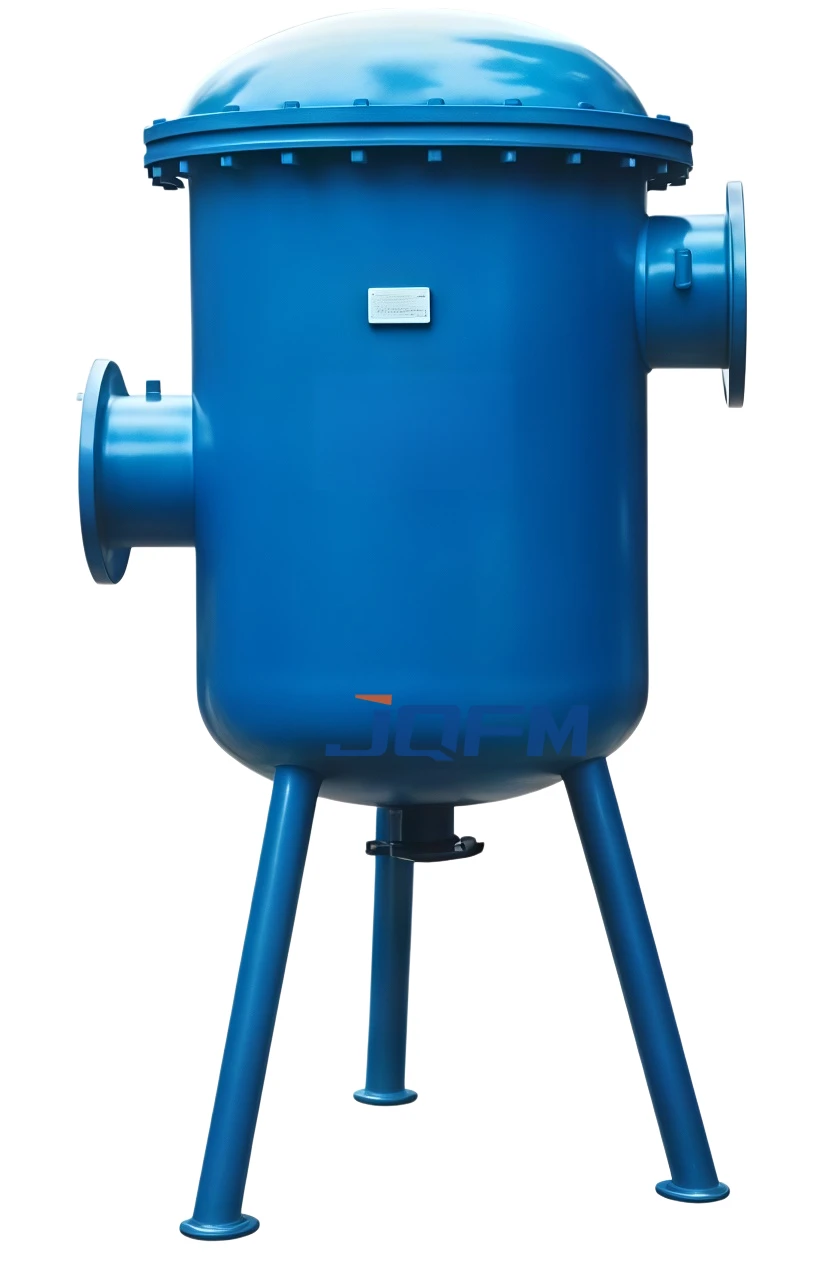

4. Drainage or Backwashing: In many filter valves, especially self-cleaning filters, there may be a mechanism that allows the filtered debris to be periodically flushed out (either automatically or manually) to prevent clogging and maintain the flow capacity.
